FEATURES
Item |
Specification |
Full Equipment Name |
Epiroc COP1838ME Hydraulic Rock Drill |
Equipment Type |
Hydraulic Rock Drill (Integrated Impact + Rotation Function) |
Applicable Working Scenarios |
Underground mining, tunnel excavation, matched with Boomer drilling jumbo |
Overall Weight |
170 kg |
Overall Length (Without Shank) |
1008 mm |
Rated Impact Power |
18 kW (24 hp) |
High-frequency Impact Rate |
60 Hz (3600 blows/min) |
Standard Rated Working Oil Pressure |
230 bar |
tandard Drilling Diameter Range |
64–89 mm |
Independent Rotary Motor Speed Range |
0–340 rpm |
Maximum Output Rotary Torque |
640 Nm |
Standard Flushing Water Flow Rate |
1.1 L/s |
Rated Operating Noise Value |
＜106 dB(A) |
Core Structural Configuration |
Dual buffer system, sealed pressure design, separate impact & rotation unit for easy maintenance |
COP1838ME Hydraulic Seal DrillKitComponents

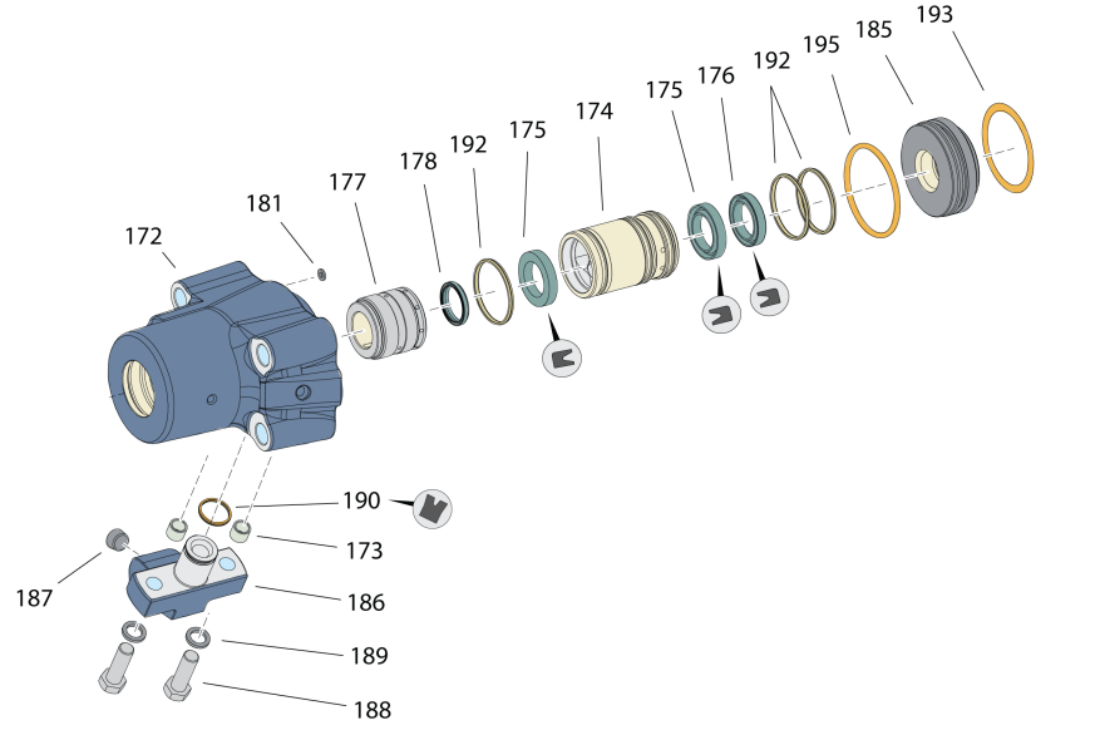

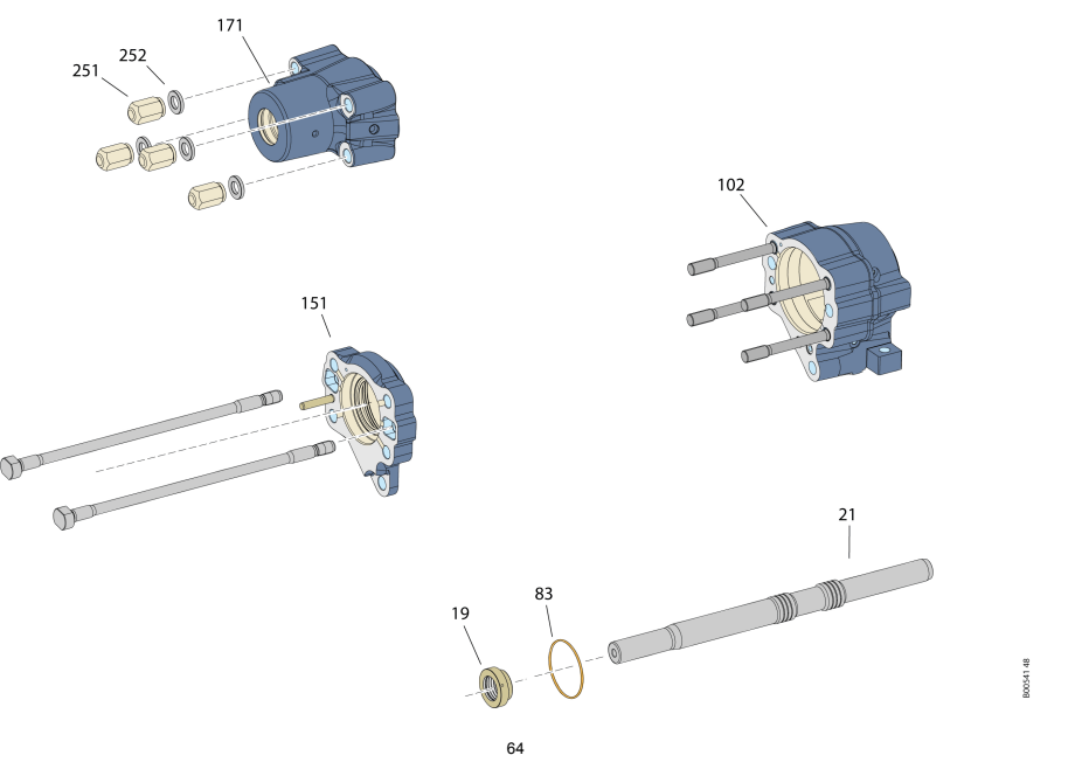

Schematic Diagram
Additional Notes
This kit, model number 3115 9150 96, is specifically designed for the COP 1838ME rock drill. The kit contains a total of 30 accessories, with the detailed breakdown as follows:
Ref no |
Part no / Detaljnr |
Qty / Antal |
Description |
Benämning |
Remarks / Anmärkningar |
|
1 |
3115915390 |
1 |
O-RING SET |
O-RINGSSATS |
COP 1638-2560 |
|
2 |
3115185090 |
1 |
SEAL KIT |
TÄTNINGSSATS |
FOR DAMPING PISTON |
|
3 |
0666719001 |
1 |
RADIAL LIP SEAL |
RADIALTÄTNING |
SIMRIT 90 / 110 X 7 |
|
4 |
0686420103 |
1 |
PLUG |
PROPP |
|
|
5 |
0653903800 |
1 |
GASKET |
PACKNING |
10 / 13,5 X 1 -11 4010 14 |
|
6 |
0544216200 |
1 |
GREASE NIPPLE |
SMÖRJNIPPEL |
ISO 7 - R 1/8 TYPE AH |
|
7 |
0666718801 |
1 |
RADIAL LIP SEAL |
RADIALTÄTNING |
80 / 100 X 7 |
|
8 |
0667120600 |
1 |
SEAL |
TÄTNING |
28 / 44 X 8 90 NBR/108 |
|
9 |
0661102000 |
1 |
SEAL WASHER |
TÄTNINGSBRICKA |
13,7 / 20,6 X 2,1 - FZ ST TREDO 1/4 |
|
10 |
3115097000 |
2 |
SEAL KIT |
TÄTNINGSSATS |
GM 1000 |
|
11 |
3115169700 |
2 |
SEAL WASHER |
TÄTNINGSBRICKA |
22,7 / 30 X 2 TREDO |
|
12 |
0661103400 |
2 |
SEAL WASHER |
TÄTNINGSBRICKA |
|
|
13 |
3115115600 |
2 |
SEAL KIT |
TÄTNINGSSATS |
|
|
14 |
3115032700 |
1 |
GASKET |
PACKNING |
AUN 25 - 40 |
|
15 |
0665100012 |
1 |
SEAL |
TÄTNING |
|
|
16 |
3115233300 |
2 |
CUP SEAL |
U-MANSCHETT |
|
|
17 |
3115519000 |
1 |
CUP SEAL |
U-MANSCHETT |
|
|
18 |
3115239600 |
2 |
CUP SEAL |
U-MANSCHETT |
|
|
19 |
3115269300 |
1 |
CUP SEAL |
U-MANSCHETT |
26,2 X 3 70 SHORE |
|
20 |
0663212800 |
1 |
O-RING |
O-RING |
27 / 35 X 2,5 FZ ST. |
|
21 |
0661103800 |
1 |
SEAL WASHER |
TÄTNINGSBRICKA |
14,1 X 1,6 90 SHORE |
|
22 |
9125619100 |
1 |
O-RING |
O-RING |
25 X 2 90 SHORE |
|
23 |
0663210937 |
1 |
O-RING |
O-RING |
29,2 X 3 90 SHORE |
|
24 |
0663212901 |
1 |
O-RING |
O-RING |
|
|
All accessories are fully comprehensive to support a one-stop overhaul and replacement of the sealing system for this equipment.
