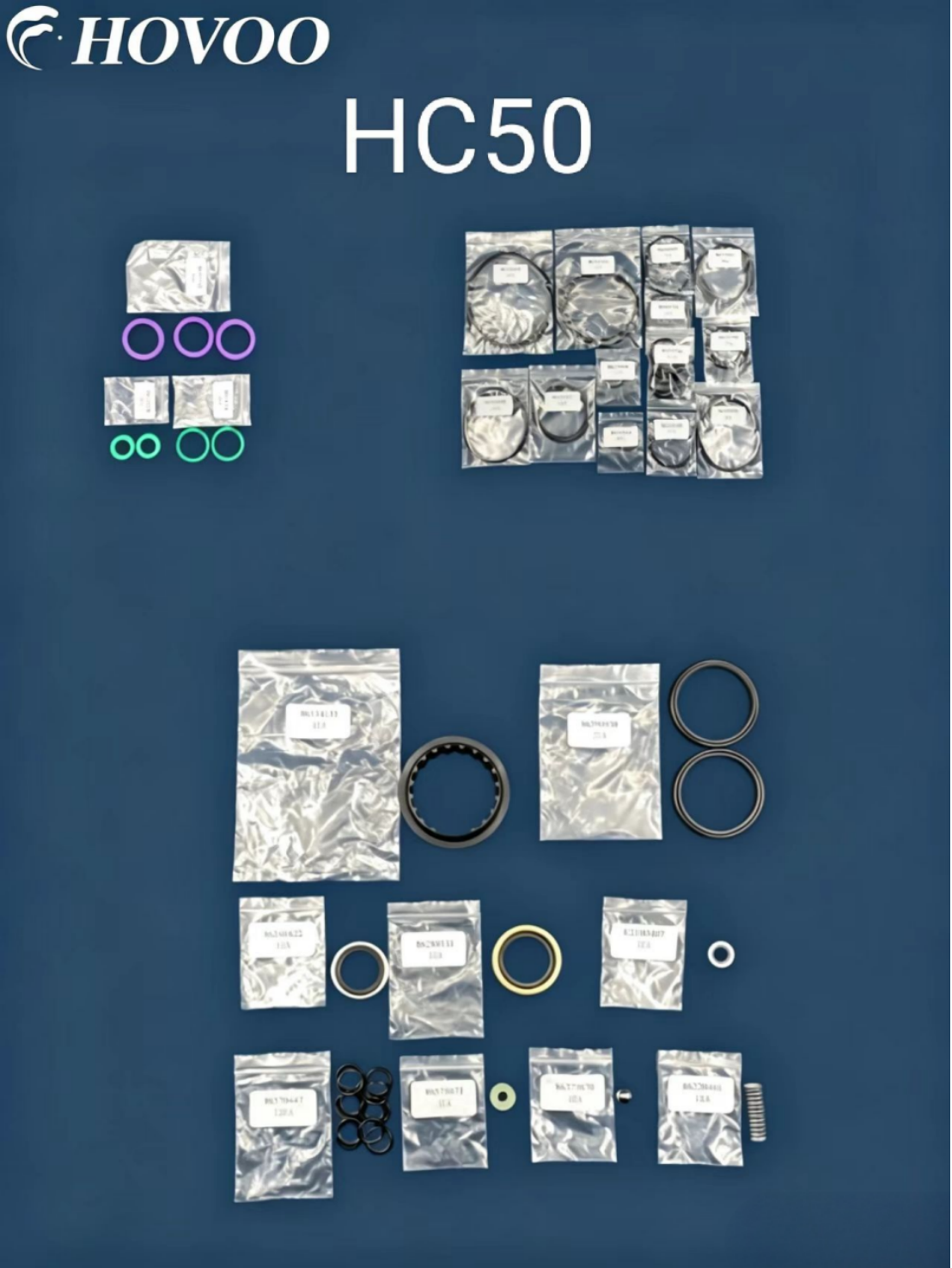

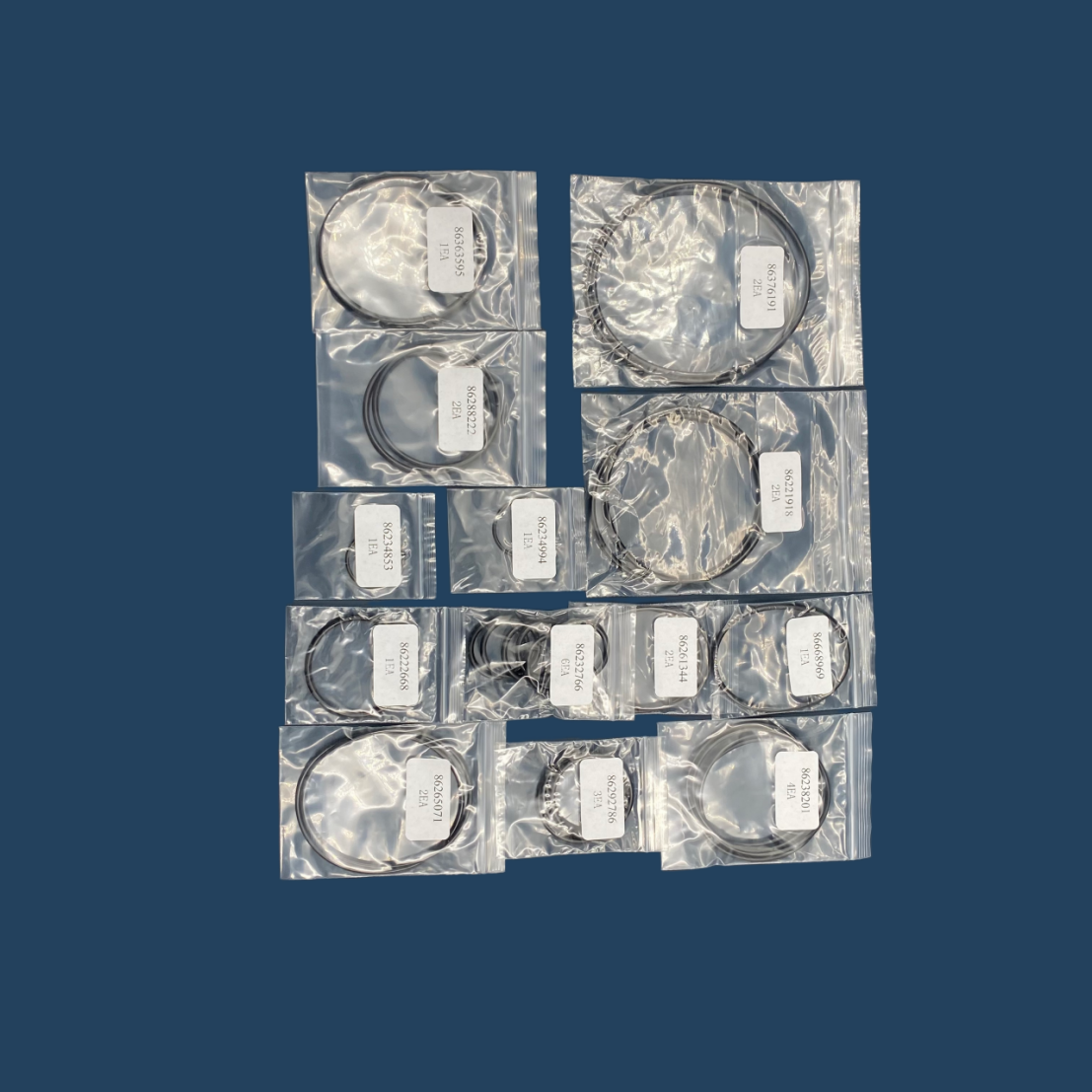

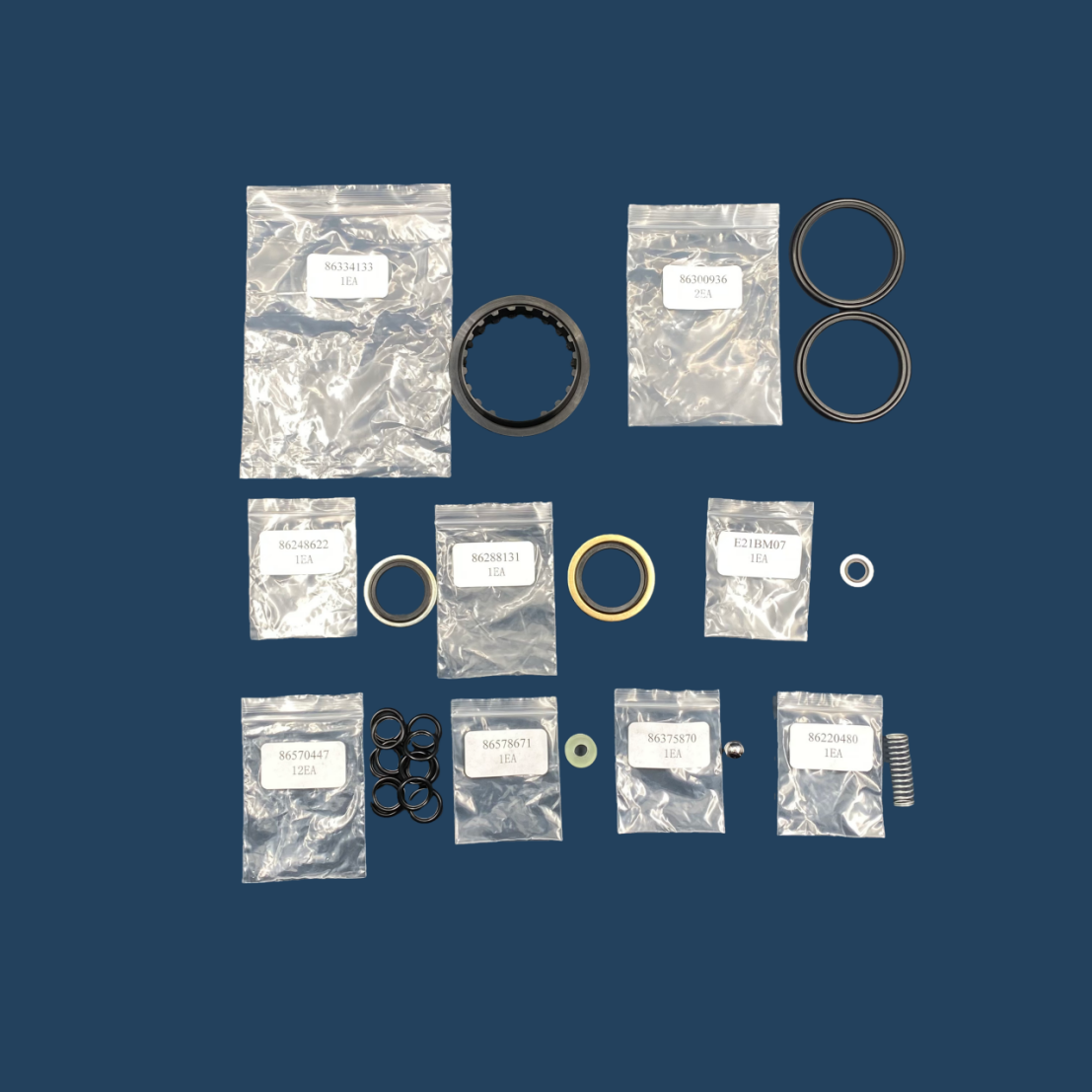

86751740/HC50Hydraulic Rock Drill Seal Kits

CPN

Qty

English Name

Remark

86343290

1

Cover

Rear Cover

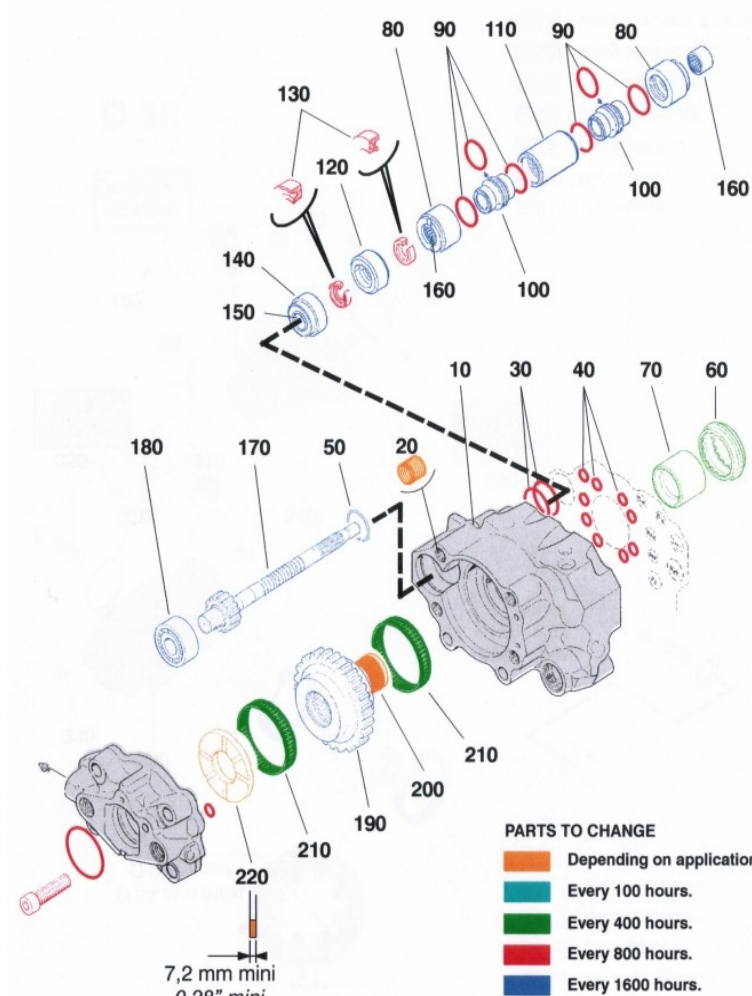

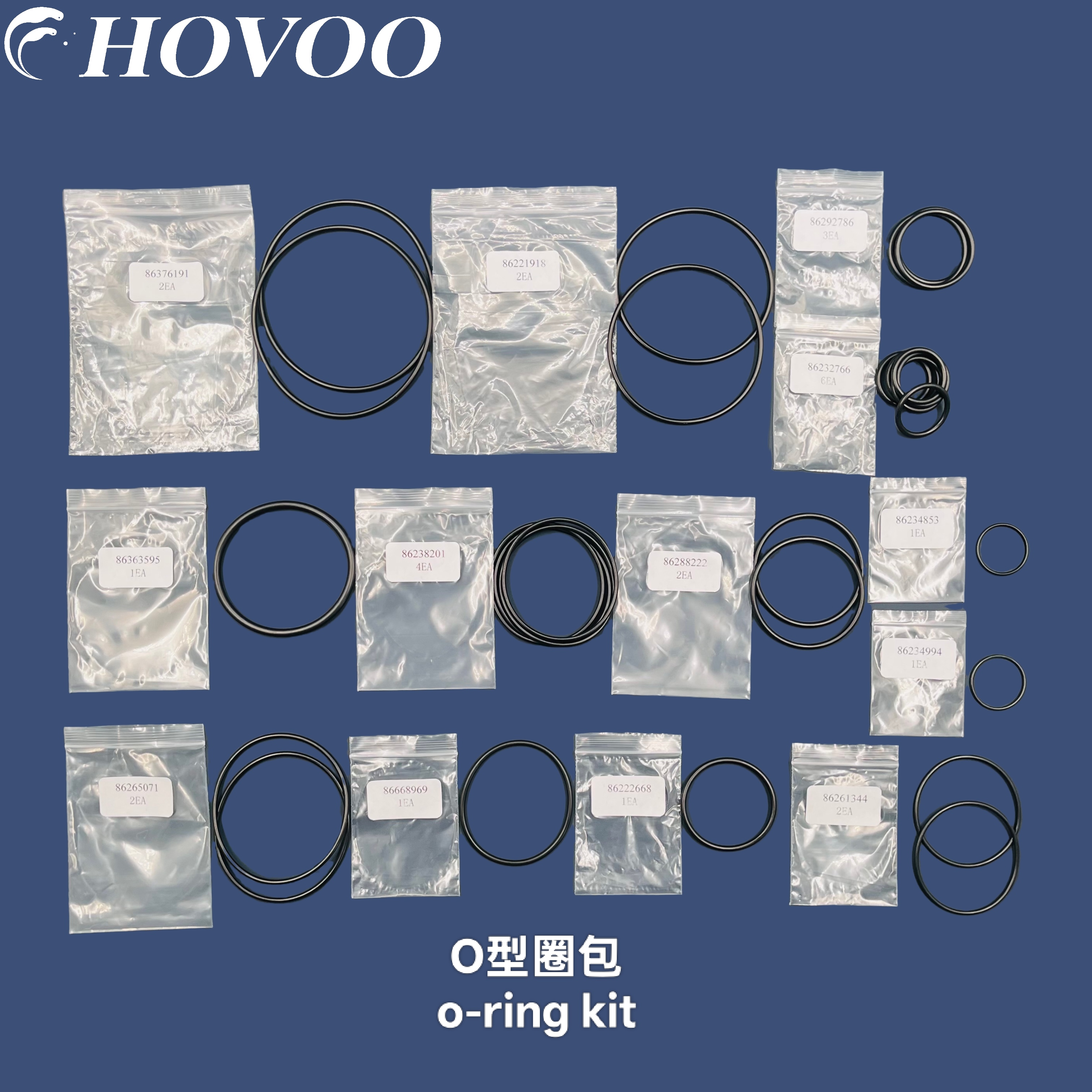

86363595

1

O'ring

O-Ring

86343282

1

Push rod

Push Rod

86343274

1

Push rod liner

Push Rod Liner

86333879

1

Valve

Control Valve

86343217

1

Distribution cover

Distribution Cover

86343225

1

Distribution box

Distribution Box

86333861

1

Distributor

Distribution Piston

86333846

1

Thrust piston "E"

Thrust Piston, Type E

86318516

1

Pin

Locating Pin

86325032

1

Cylinder

Rear Cylinder Liner

86265071

2

O'ring

O-Ring

N/A

1

Energy chamber including:

Energy Chamber Including

86374014

1

Body

Cylinder Body

86374055

2

Cover

Accumulator Cover

86376191

2

O'ring

O-Ring

86633963

2

Diaphragm kit including:

Diaphragm Kit Including

86241506

1

-BS ring

BS Ring

86265048

1

-Inflating screw

Inflation Valve

86334034

4

Assembling screw (rear)

Rear Mounting Screw

86333838

1

Striking piston

Impact Piston

86334299

1

Down cylinder

Front Cylinder Liner

86386794

1

Motor body

Motor Housing

86223476

1

Spring

Spring

86223419

1

Pin

Locating Pin

86322518

3

Valve

Check Valve

86570447

1

Tight seal

Fastening Seal

86238201

2

O'ring

O-Ring

86292786

1

O'ring

O-Ring

86249265

1

Plastic plug

Plastic Plug

86313053

1

Cover

Motor Cover

86222668

1

O'ring

O-Ring

86344116

1

Bearing holder plate

Bearing Support Plate

86223559

1

Ball bearing

Ball Bearing

86344199

2

Distribution plate

Distribution Plate

86261344

2

O'ring

O-Ring

86642311

1

Cartridge (type 055)

Motor Cartridge (Type 055)

86318516

2

Pin

Locating Pin

86221918

2

O'ring

O-Ring

86334109

1

Thrust lining

Buffer Piston Sleeve

86238201

2

O'ring

O-Ring

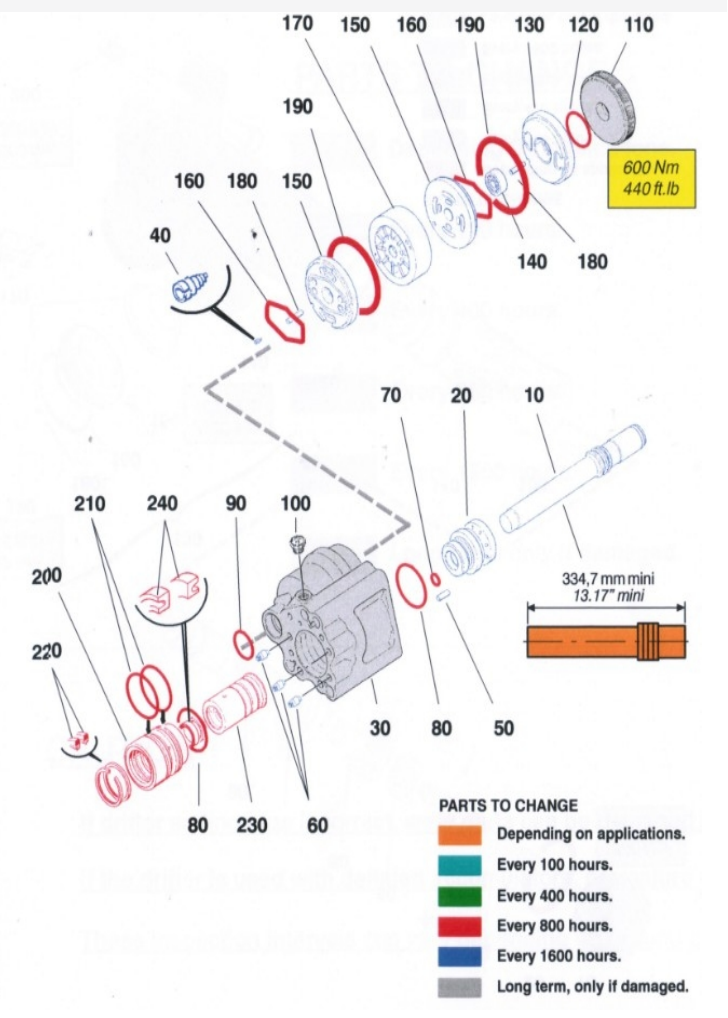

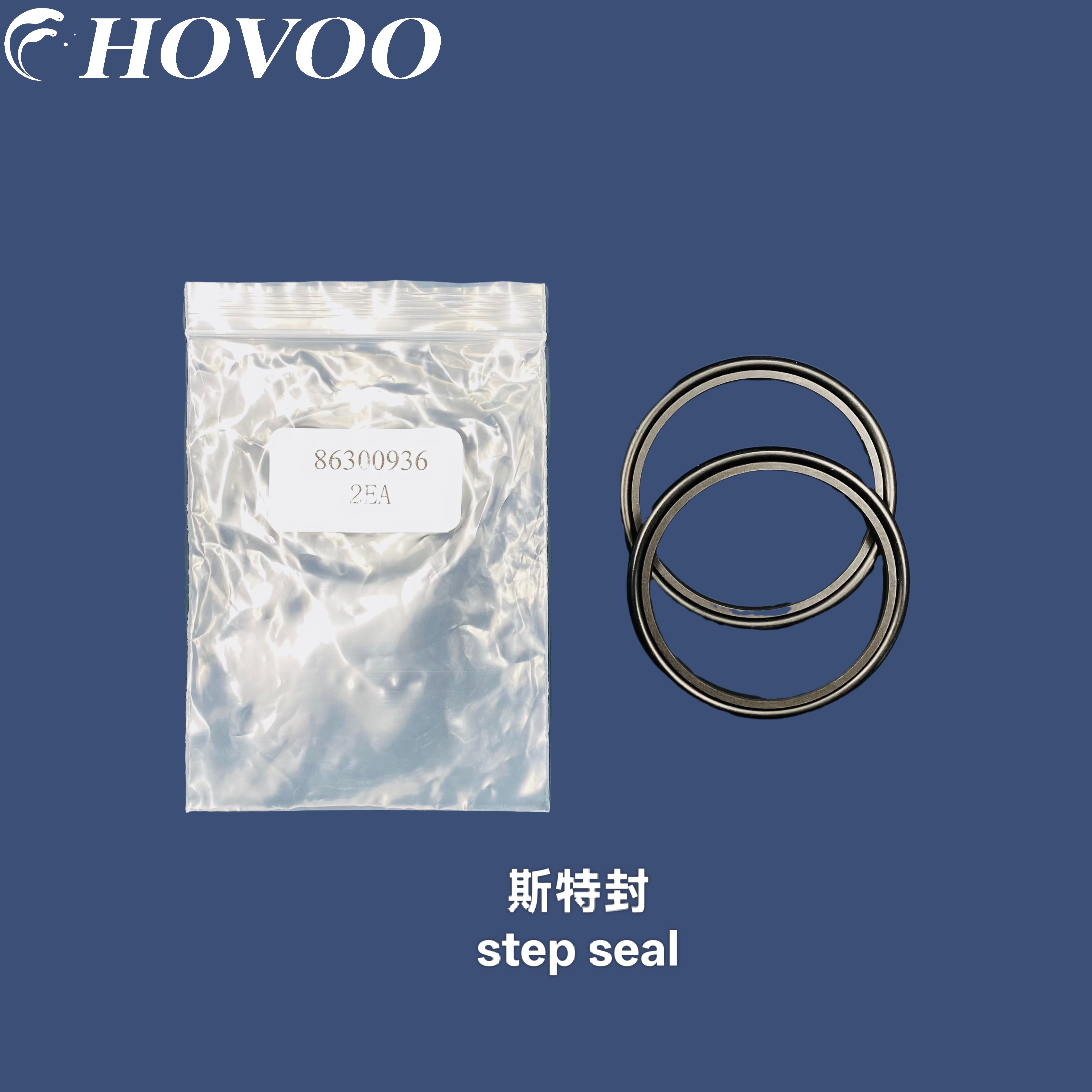

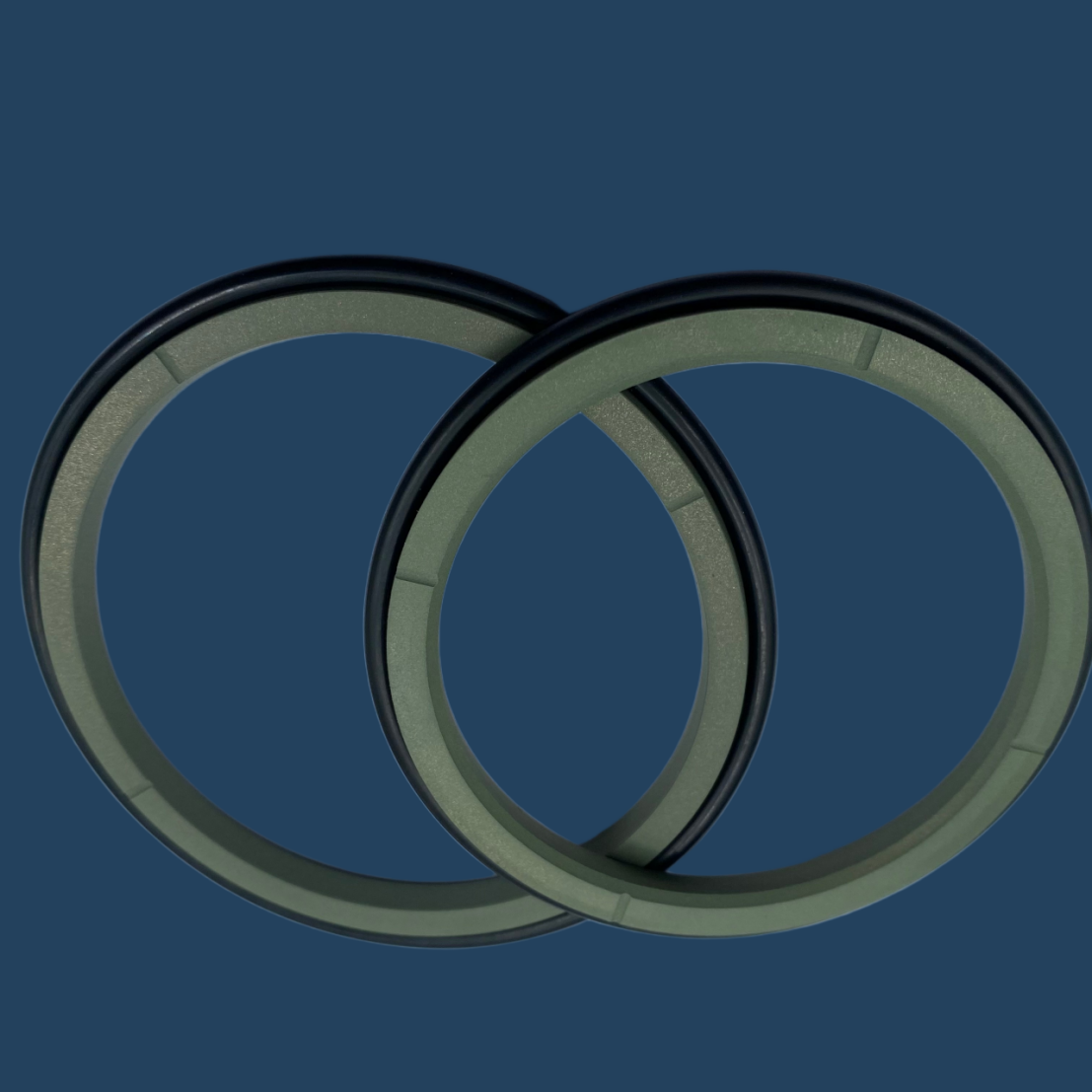

86300936

2

Rod joint

Combined Seal

86334117

1

Hydraulic stop piston

Buffer Piston

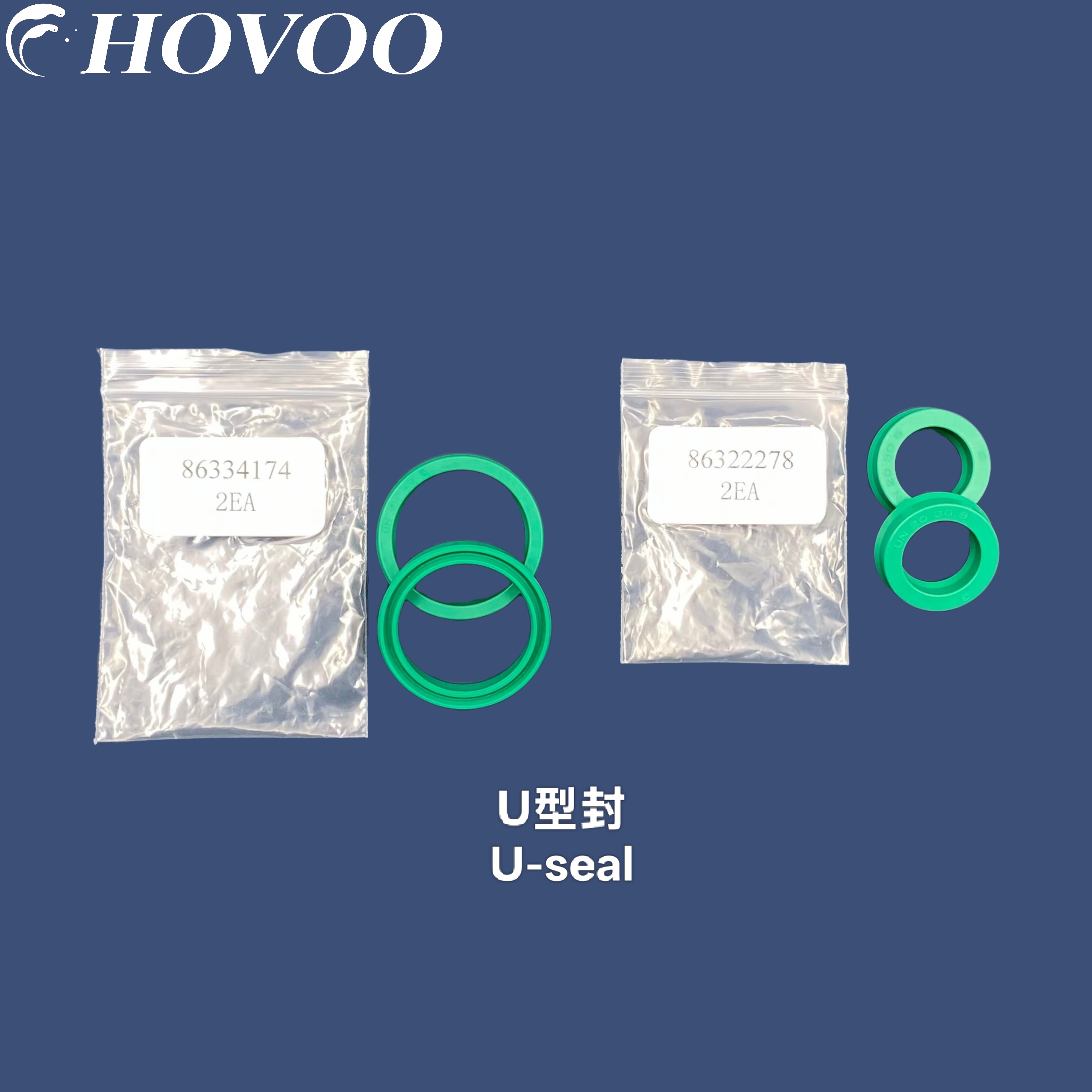

86334174

2

Lip seal

Lip Seal

86386216

1

Complete housing including

Gearbox Assembly Including

86264678

2

Heico thread unf 3/4"

Helicoil Insert UNF 3/4"

86292786

2

O'ring

O-Ring

86570447

9

Tight seal

Fastening Seal

86323763

1

Snap ring

Snap Ring

86334133

1

Centering part

Centering Ring

86334125

1

Shank thrust

Shank Sleeve

86323771

2

Tight ring

Bushing

86327066

6

O'ring

O-Ring

86323797

2

Tight ring

Bushing

86323789

1

Tight ring

Bushing

863623805

1

Seal holder ring

Seal Retainer

86322278

2

Lip seal

Lip Seal

86323813

1

Shouldered ring including:

Shouldered Ring Including

86322252

1

Self lubricating ring

Self-Lubricating Bushing

86322260

2

Needle bearing

Needle Bearing

86323953

1

Gear driving shaft

Drive Shaft

13900717

1

Ball bearing

Ball Bearing

86334141

1

Gear driving including:

Rotating Gear Including

86605920

1

Spline shank

Spline Shank

86250107

2

Needle bearing

Needle Bearing

86334307

1

Thrust washer

Thrust Washer

86288131

1

BS ring

BS Ring

86366259

1

Slider

Spool

86366242

1

Lining

Valve Seat

86366283

1

Spring

Spring

86234994

1

O'ring

O-Ring

86234853

1

O'ring

O-Ring

86312196

X

Adjusting shim

Adjusting Shim

86334166

1

Flange including:

Gearbox Flange Including

86256005

2

Helicoil thread UNF1"

Helicoil Insert UNF 1"

86288222

1

O'ring

O-Ring

86655354

1

Oiler

Grease Fitting

86570447

1

Tight seal

Fastening Ring

95340659

4

Assembling screw

Mounting Bolt

86341344

1

Front guide including:

Front Head Including

86227931

1

Basticpin

Elastic Pin

86750866

1

Guiding ring

Guide Ring

86220480

1

Spring

Spring

86375870

1

Ball

Steel Ball

86578671

1

Seal

Rubber Plug

86570447

1

Tight seal

Fastening Seal

86288222

1

O'ring

O-Ring

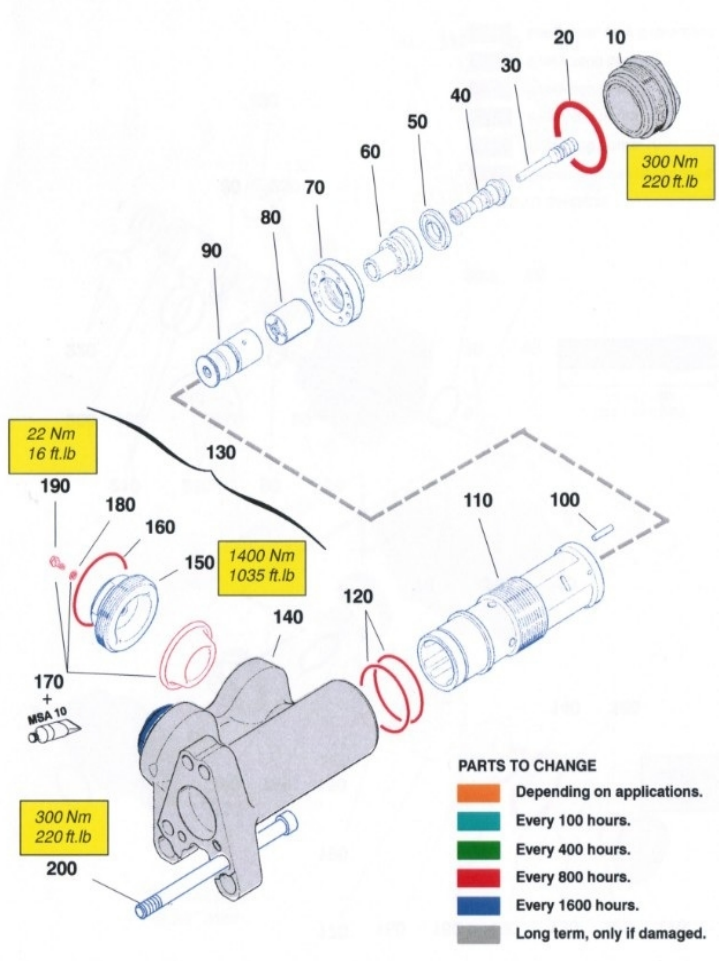

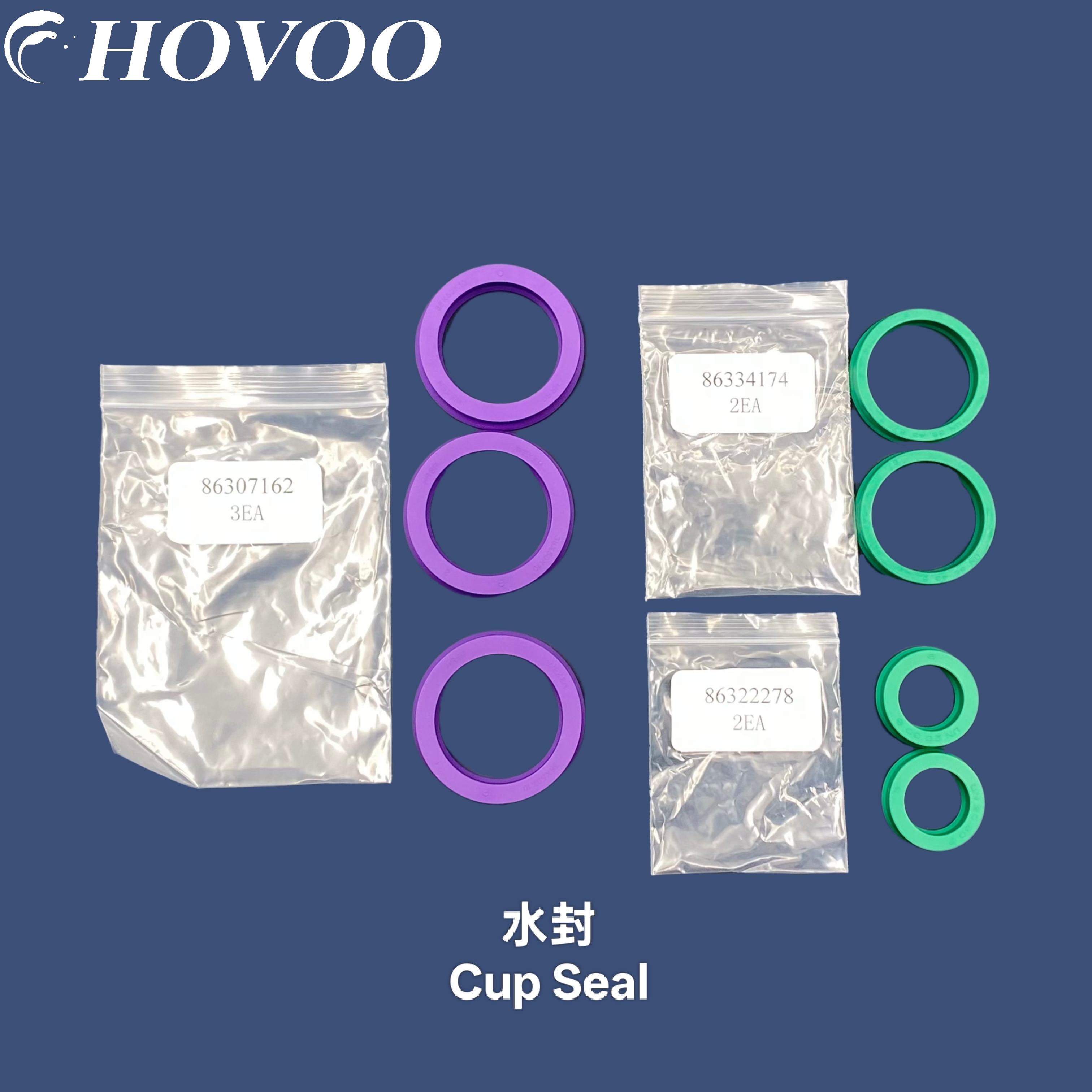

86307162

1

Lip seal

Lip Seal

86607355

2

UNF1" hex. Screw

Hex Bolt UNF 1"

86334216

1

Retainer chuck

Shank Chuck

86307162

2

Lip seal

Lip Seal

86334240

1

Shield

Shank Protector

86619558

1

Male shank R 38

Male Shank R38

86751849

1

Control gauge kit

Control Gauge Kit

95219747

1

Adapter (P2)

For Water Flushing Model

86321056

1

Adapter (Flushing)

Flushing Adapter

95219762

1

Adapter (Return)

Return Adapter

86257979

4

Adapter (P1A-P1R-Drain-Pressurization)

Adapter (P1A-P1R Drain & Pressurization)

86374964

1

Oil restrictor including:

Oil Restrictor Including

86374972

1

Self lubricating ring

Self-Lubricating Bushing

86322260

2

Needle bearing

Needle Bearing

86331105

2

UNF 3/4" hex. screw

Hex Bolt UNF 3/4"

86227931

1

Basticpin

Elastic Pin

86750866

1

Guiding ring

Guide Ring

86220480

1

Spring

Spring

86375870

1

Ball

Steel Ball

86578671

1

Seal

Rubber Plug

86570447

1

Tight seal

Fastening Seal

86288222

1

O'ring

O-Ring

86307162

1

Lip seal

Lip Seal

86607355

2

UNF1" hex. Screw

Hex Bolt UNF 1"

  86731312

1

Seals kit including:

Seal Kit Including All marked parts
