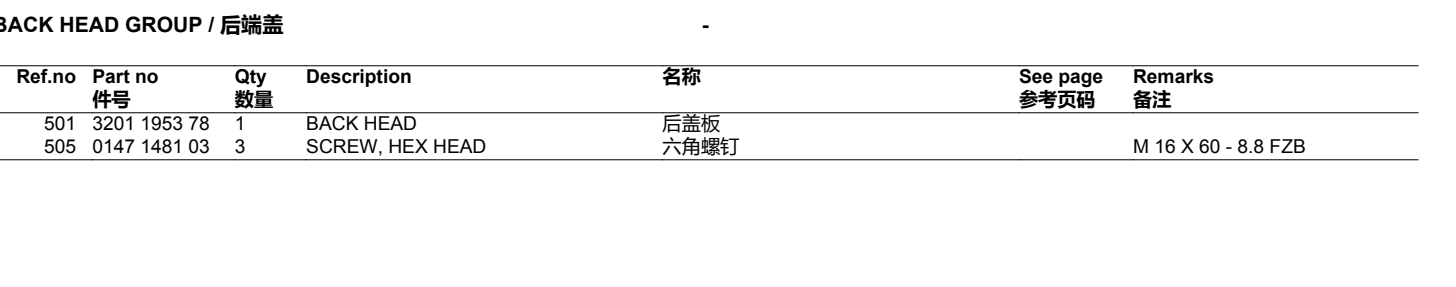

Malaysia's granite quarrying on the Main Range and the gold-copper skarn deposits at Selinsing in Pahang operate RD22U drifters in monsoon-season humidity that exceeds 95% for weeks at a time. The RD22U back head—the rear housing cap that houses the high-pressure percussion supply port, accumulator interface, and return line connection—has a larger flange face and more port connections than the RD18U equivalent, matching the RD22U's higher flow capacity. More port face area means more surface at risk for the corrosion mechanism that Malaysian operations know well: thread face oxide buildup that roughens the sealing surface and changes the friction coefficient on hydraulic fitting assembly.
At Malaysian quarry sites where equipment sits idle during rainy-season flooding events, RD22U back heads can be exposed to standing water around the port connections for 48–72 hours before the site resumes operation. Steel port faces without corrosion protection form surface oxide in under 24 hours at 95% humidity. When the ports are reconnected after flooding, that oxide layer is compressed between the fitting face and the port seat—it doesn't seal uniformly, producing a weeping connection that often isn't caught until hydraulic oil is visible on the back head surface after the first drilling shift.
Malaysian Site Protocol for Back Head Port Protection
|
Maintenance Action |
Timing |
Method |
Failure Prevented |
|
Fit blanking plugs |
Immediately at shutdown |
Press-fit plugs in all ports |
Oxide on exposed port faces |
|
Apply rust inhibitor |
After any wash or wet exposure |
Thin-film spray on port faces |
Surface corrosion on thread flanks |
|
Torque verification |
At every hose reconnection |
Torque wrench to spec |
Under-torque from changed friction |
|
O-ring groove inspection |
At each seal change |
Pick tool; visual in groove |
Oxide-embedded grit cutting new O-ring |
Malaysian Selinsing operations standardized on port blanking plugs as PPE-equivalent mandatory equipment for every drill shutdown—the maintenance supervisor signs off that plugs are fitted before the shift ends. The rule emerged after three consecutive back head O-ring failures traced to port face oxide contamination during a 3-day rainy-season shutdown. HOVOO supplies RD22U back head O-ring sets and port protection kits for Malaysian tropical operations. References at hovooseal.com.
