Product Overview

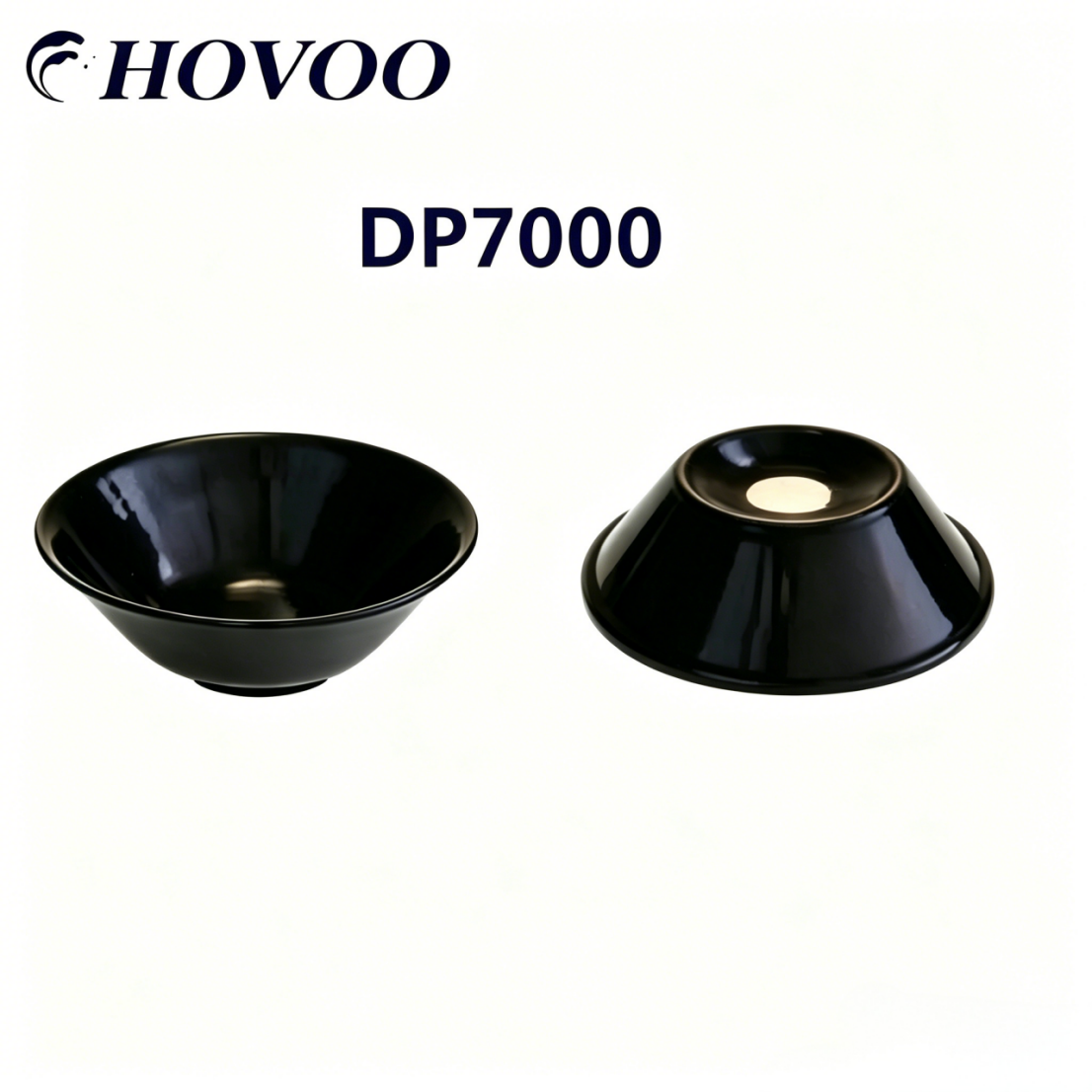

This heavy-duty diaphragm and cup seal is custom developed for Atlas Copco DP7000 large hydraulic breaker (rock drill), the heavy-duty impact equipment widely applied in open-pit mining, quarry stone crushing, large foundation demolition and tunnel excavation hydraulic systems. The set includes accumulator energy storage diaphragm and hydraulic impact piston cup seal, fully meeting full overhaul and daily maintenance demands of DP7000 hydraulic hammer.
Adopting thickened fabric-reinforced NBR nitrile rubber and high wear-resistant casting PU polyurethane as core raw materials, this sealing assembly features outstanding nitrogen penetration resistance, ultra-high impact fatigue resistance, abrasion resistance and anti-aging performance, serving as a perfect direct replacement for original Atlas Copco OEM spare parts. It effectively solves typical faults including accumulator nitrogen leakage, cylinder internal oil leakage, hydraulic impact pressure attenuation and unstable striking force, greatly extending the service life of DP7000 under long-time heavy-load impact, intense vibration and high-dust harsh mining working conditions.
Product Specifications
Item |
Detailed Parameter |
Product Name |
Atlas Copco DP7000 Hydraulic Breaker Diaphragm & Cup Seal |
Applicable Model |

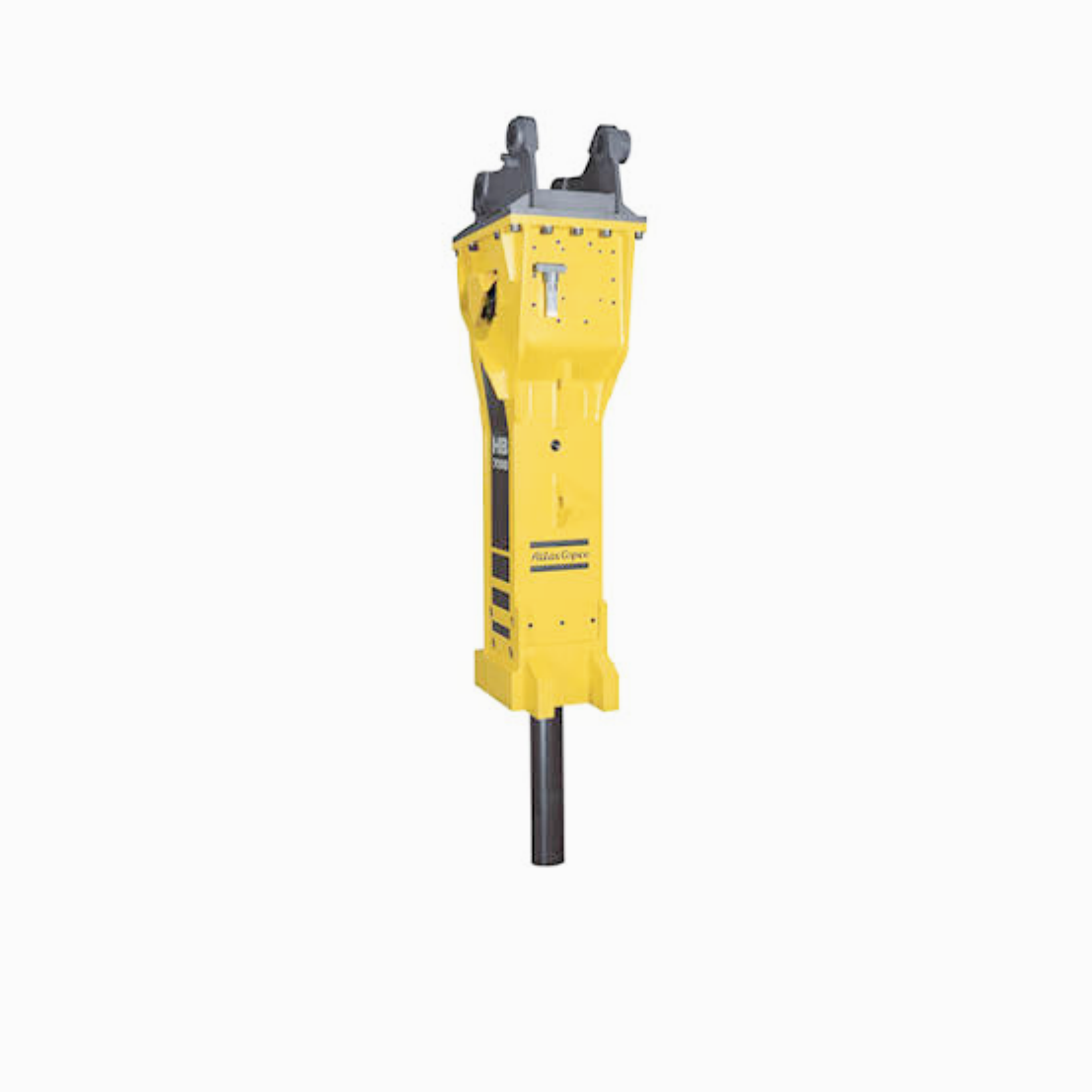

DP7000 Large Heavy-Duty Hydraulic Rock Breaker |
Compatible Series |
Atlas heavy hammer series: HB5000, HB7000, DP6000, DP7000, DP8000 |
Main Material |
Thickened Fabric Reinforced NBR Diaphragm + High Hardness Wear-Resistant PU Cup Seal |
Max Working Pressure |
32MPa (320bar), Instant Peak Pressure: 38MPa (380bar) |
Working Temperature |
-40℃ ~ 120℃ |
Product Composition |
Accumulator energy storage diaphragm, hydraulic reciprocating piston cup seal |
Cross Reference OEM No. |
(To be filled with actual OEM numbers) |
Net Weight |
Approximately 0.75kg |
Applicable System |
Heavy hydraulic hammer nitrogen accumulator system, impact cylinder reciprocating sealing system |
Warranty |
12 Months |
Certification |
ISO9001 Quality Management System Certified |
Key Selling Points
1. 100% OEM Dimensional Matching, Direct Installation Without Modification
Fully matched with original Atlas DP7000 hydraulic breaker in outline, size and installation size, consistent with original factory part standard. No cutting, grinding or secondary modification required. Suitable for daily maintenance, mine field full machine overhaul and emergency rush repair, obviously reducing equipment downtime and labor maintenance cost.
2. Thickened Composite Sealing Material, Stable Sealing Under Full Working Conditions
Energy storage diaphragm adopts multi-layer fabric clamped nitrile rubber base, excellent tear resistance and elastic recovery, tens of thousands of high-frequency heavy impact cycles without cracking; piston cup seal uses high-density cast PU material with strong anti-extrusion and anti-wear capacity. Materials resist nitrogen aging, hydraulic oil corrosion and fatigue deformation, maintaining stable sealing elasticity continuously from -40℃ alpine open-pit mining to 120℃ high-temperature underground tunnel construction.
3. Ultra-High Pressure & Heavy Impact Resistance, Eliminate Pressure Loss & Oil/Gas Leakage
Diaphragm and cup seal pass strict 32MPa high-pressure durability and long-cycle heavy impact simulation tests. Arc bowl-shaped structure fits accumulator and cylinder inner cavity tightly, thoroughly eliminates nitrogen escape of energy storage device and internal oil seepage of impact cylinder, stabilizes overall hydraulic impact pressure, guarantees constant striking power of DP7000 during hard rock crushing, continuous heavy impact and strong vibration operation.
4. Special Customized Structure for DP7000, Convenient Spare Parts Management
Independently molded targeting DP7000 accumulator and piston sealing positions, optimized curved surface to fit heavy hammer large-size cavity; single independent packaging simplifies spare parts inventory classification, shortens overall repair cycle and cuts daily equipment operation and maintenance expenses.
5. Multi-Round Strict Factory Inspection, Quality Reaches Original Standard
Every set of diaphragm and cup seal completes air tightness leak test, high-pressure endurance test and cyclic impact aging test before delivery. All performance indicators conform to Atlas original factory technical standards, providing long-term stable operation guarantee for large mining and engineering hydraulic crushing equipment.
6. Wide Application Scope for Heavy-Duty Scenarios
Specially matched for Atlas DP7000 heavy hydraulic breaker, widely used in various large heavy engineering and mining industries:
• Open-pit mining: Large mine ore breaking, quarry hard rock exploitation, mountain stone stripping
• Foundation engineering: Super high-rise building foundation excavation, bridge pier rock foundation trimming
• Tunnel & municipal engineering: Mountain tunnel rock excavation, large concrete structure demolition, road widening hard rock breaking
• Water conservancy engineering: Hydropower station rock excavation, dam foundation treatment
• Large demolition project: Waste factory large concrete frame dismantling, mine rock splitting
