Product Overview

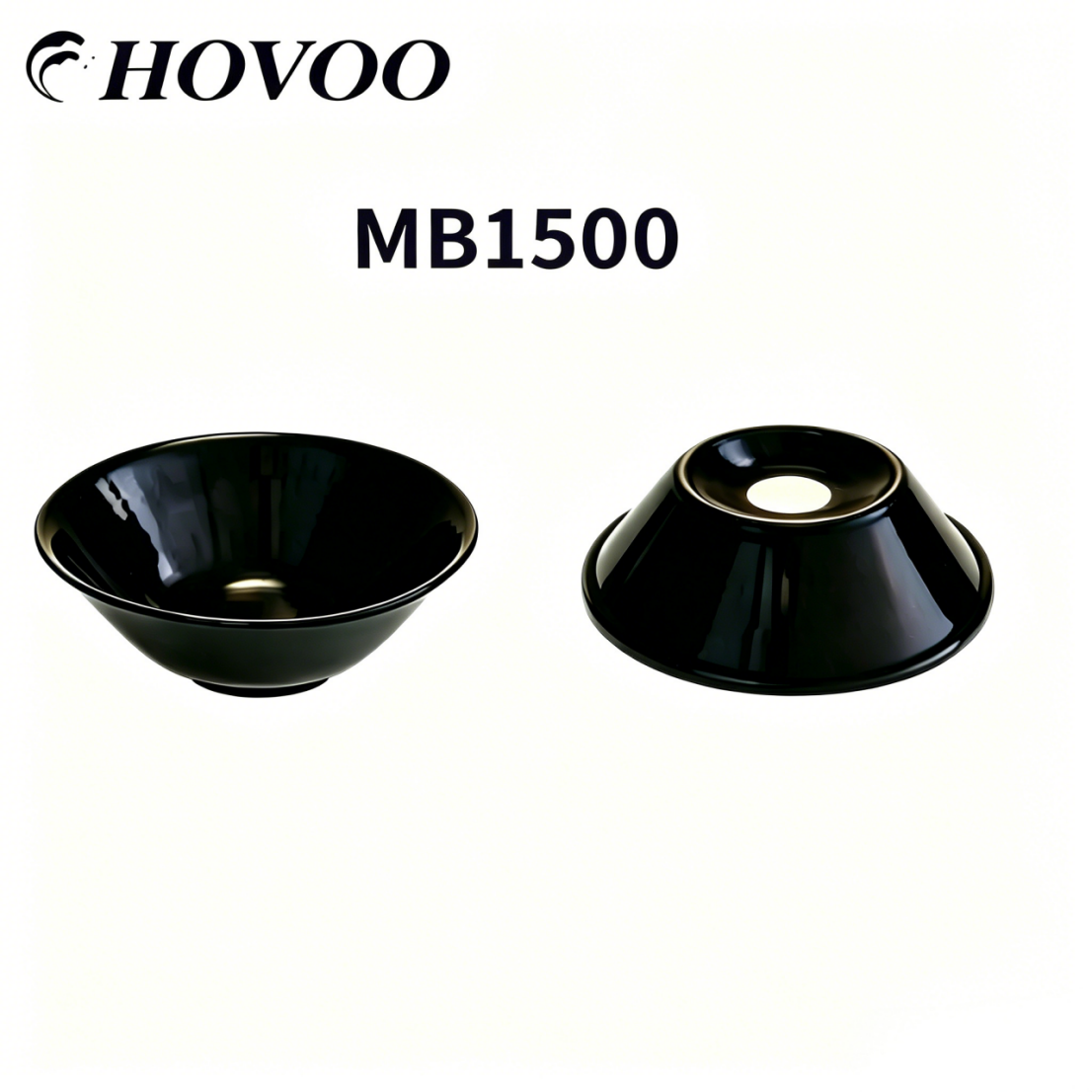

This high-performance accumulator diaphragm and piston cup seal is custom-developed for Atlas Copco MB1500 medium hydraulic breaker, the core heavy-duty demolition hammer of MB series widely matched with 17–29 ton excavators for mining, quarry and municipal demolition construction. The product integrates nitrogen storage diaphragm and hydraulic reciprocating piston cup seal, fully supporting full overhaul and daily maintenance of MB1500 hydraulic rock breaker.
Adopting fabric-reinforced NBR nitrile rubber and wear-resistant PU polyurethane as core raw materials, this diaphragm & cup seal features excellent nitrogen penetration resistance, high-frequency impact resistance, abrasion resistance and anti-fatigue aging performance, which can be used as a direct interchangeable replacement for original Atlas Copco sealing spare parts. It thoroughly solves common faults such as accumulator nitrogen leakage, cylinder internal oil leakage and impact pressure attenuation, greatly extending the service life of MB1500 breaker under long-cycle high-speed striking, intense vibration and dusty severe working conditions.
Product Specifications
Item |
Detailed Parameter |
Product Name |
Atlas Copco MB1500 Hydraulic Breaker Diaphragm & Cup Seal |
Applicable Model |
MB1500 Medium Hydraulic Breaker / Rock Hammer |
Compatible MB Series |
MB750, MB1000, MB1200, MB1500, MB1700 hydraulic impact hammer |
Main Material |
Fabric Reinforced NBR Diaphragm + High Wear-Resistant PU Cup Seal |
Max Working Pressure |
18MPa (180bar), Instant Peak Pressure: 22MPa (220bar) |
Working Temperature |
-40°C ~ 120°C |
Product Composition |
Accumulator energy storage diaphragm, hydraulic piston reciprocating cup seal |
Cross Reference OEM No. |
(To be filled with actual OEM numbers) |
Net Weight |
Approximately 0.45kg |
Applicable System |
Hydraulic breaker nitrogen accumulator system, impact cylinder reciprocating sealing system |
Warranty |
12 Months |
Certification |
ISO9001 Quality Management System Certified |
Key Selling Points
1. 100% OEM Dimensional Matching, Direct Installation Without Modification
Fully consistent with the original cavity size and installation contour of Atlas Copco MB1500 breaker, completely matched with standard OEM part sizes. No cutting, grinding or secondary modification required. Suitable for daily maintenance, field overhaul and emergency on-site repair, effectively reducing equipment downtime and manual maintenance cost.
2. Composite High-End Sealing Material, Stable Sealing In Full Temperature Range
The energy storage diaphragm adopts cloth-inserted nitrile rubber with superior tear resistance and elastic recovery, resisting cracking after tens of thousands of continuous impact cycles; the piston cup seal uses high-hardness PU material with strong anti-extrusion and wear resistance. The material resists nitrogen aging, hydraulic oil corrosion and permanent deformation, maintaining stable sealing elasticity continuously from -40°C alpine mining to 120°C high-temperature underground construction environment.
3. High Pressure & Anti-Vibration Design, Eliminate Air & Oil Leakage
All sealing components pass strict 18MPa high-pressure durability and long-cycle impact simulation tests. The bowl-shaped curved surface fits the inner cavity tightly, completely blocking nitrogen leakage of accumulator and internal cylinder oil seepage, stabilizing hydraulic striking pressure, and ensuring constant impact force output of MB1500 breaker under heavy rock breaking, continuous striking and strong vibration working conditions.
4. Exclusive Custom Mold For MB1500, Convenient Spare Parts Management
Independently molded for MB1500 accumulator and piston sealing positions, perfectly fitting the original hammer cavity structure. Single independent packaging simplifies spare parts classification and inventory management, shortens overall repair cycle, and lowers daily operation & maintenance cost of excavator hydraulic equipment.
5. Multi-Round Factory Inspection, Quality Reaches Original Factory Standard
Each set of diaphragm and cup seal undergoes air tightness leakage test, high-pressure endurance test and cyclic impact aging test before delivery. All performance indicators comply with Atlas Copco original technical standards, providing long-term stable operation guarantee for engineering and mining hydraulic breaking equipment.
6. Wide Application Scenarios For Heavy-Duty Construction

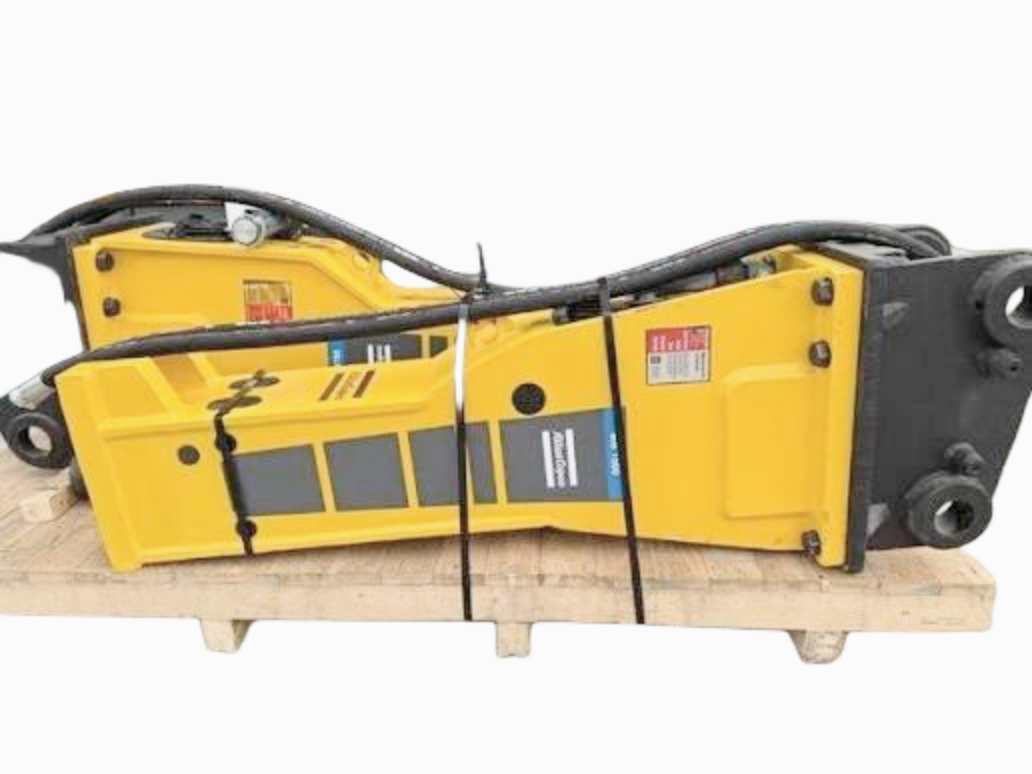

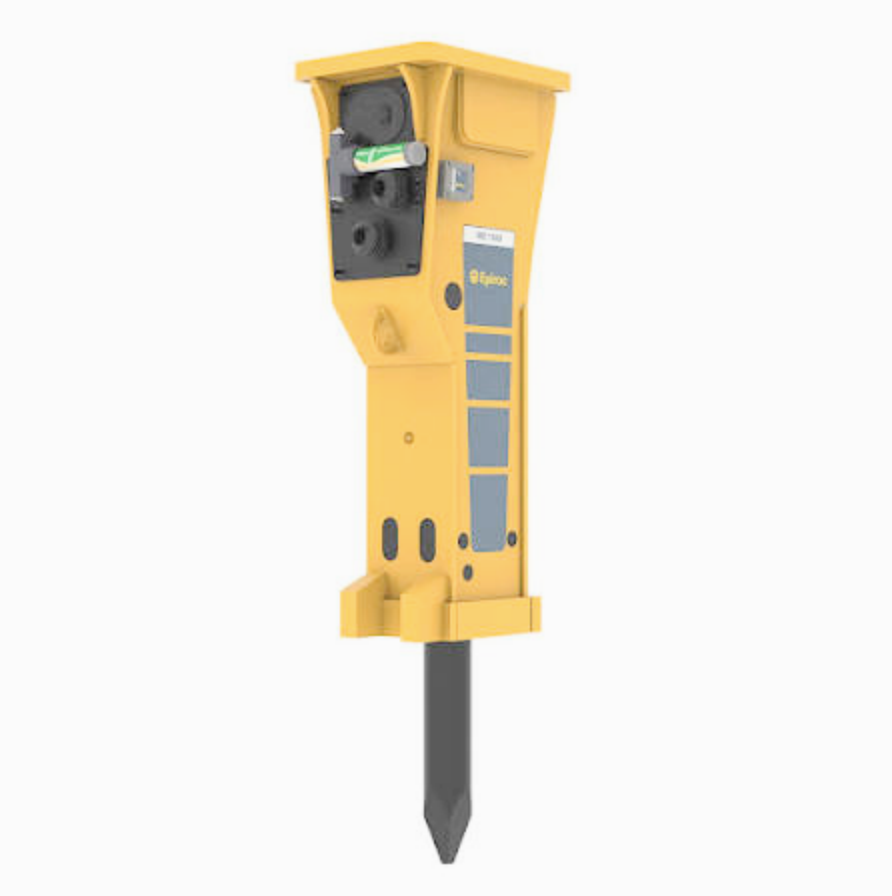

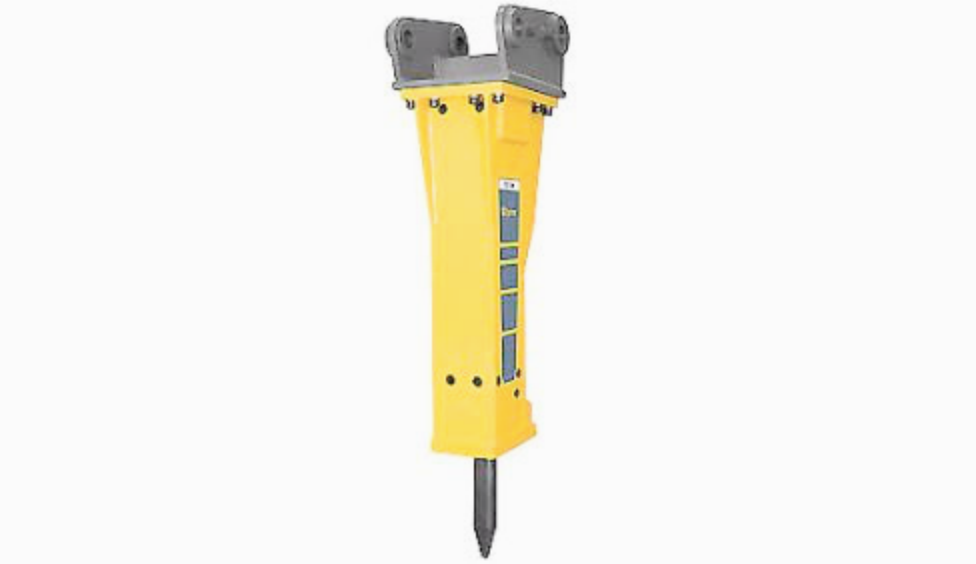

Specially matched for Atlas Copco MB1500 hydraulic breaker (matched with 17–29 ton excavators), widely applied in multiple heavy industry fields:
• Quarry & Mining: Mine secondary rock breaking, stone quarry exploitation, underground roadway rock excavation
• Municipal Demolition: Reinforced concrete crushing, old building dismantling, road surface reconstruction
• Road & Bridge Engineering: Mountain rock excavation, tunnel construction, hard rock foundation breaking
• Water Conservancy Project: Hydropower foundation trimming, channel rock excavation
• Emergency Rescue: Frozen soil crushing, slope rock splitting, road collapse clearance
Welcome to HOVOO, a Chinese seal factory. Production of PU, Rubber and PTFE seals. The seals include O-ring, piston seal, rod seal, Gray ring and gas seal.
