Product Overview

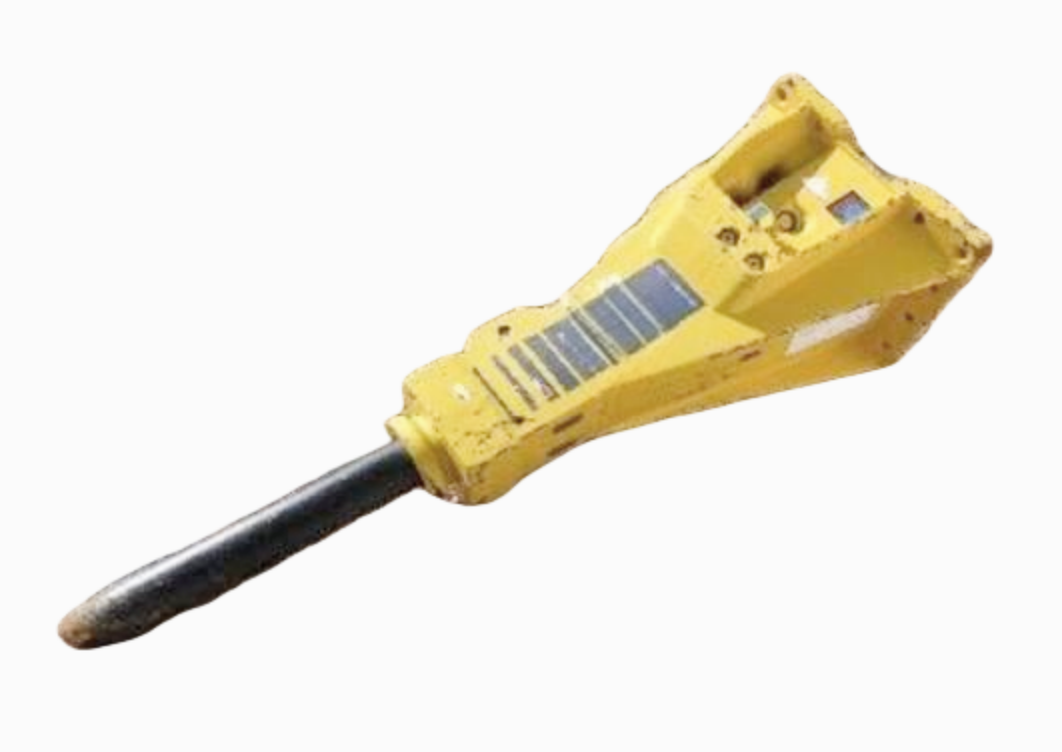

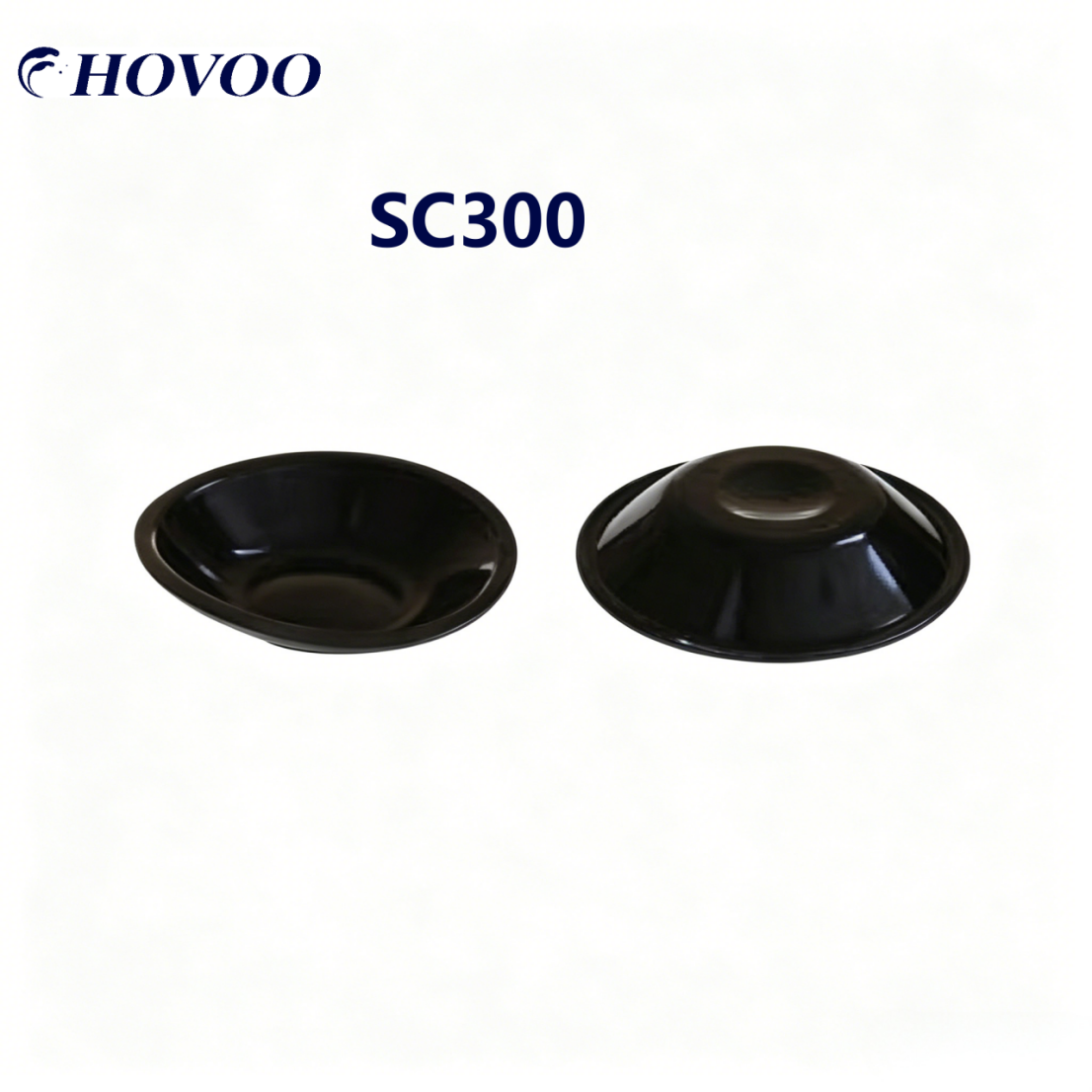

This high-performance accumulator diaphragm and piston cup seal is custom developed for Atlas Copco SC300 heavy hydraulic breaker, the core medium-large impact equipment of Atlas SC series hydraulic hammer widely applied in mining quarry, municipal demolition, tunnel excavation and road engineering hydraulic systems. The complete set includes nitrogen accumulator energy storage diaphragm and hydraulic reciprocating piston cup seal, fully supporting full overhaul and routine maintenance of SC300 breaker.
Adopting fabric-reinforced NBR nitrile rubber and high wear-resistant PU polyurethane as core raw materials, this sealing assembly features outstanding nitrogen penetration resistance, high-frequency impact resistance, abrasion resistance and anti-fatigue aging performance, serving as a direct interchangeable replacement for original Atlas Copco OEM sealing spare parts. It effectively solves common faults including accumulator nitrogen leakage, cylinder internal oil seepage and hydraulic pressure attenuation, greatly extending the service life of SC300 hammer under long heavy-load striking, intense vibration and dusty severe working conditions.
Product Specifications
Item |
Detailed Parameter |
Product Name |
Atlas Copco SC300 Hydraulic Breaker Diaphragm & Cup Seal |
Applicable Model |
SC300 Heavy Hydraulic Rock Breaker |
Compatible SC Series |
SC220, SC260, SC300, SC350, SC420 hydraulic impact hammer |
Main Material |
Fabric Reinforced NBR Diaphragm + High Hardness PU Cup Seal |
Max Working Pressure |
26MPa (260bar), Peak Instant Pressure: 32MPa (320bar) |
Working Temperature |
-40℃ ~ 120℃ |
Product Composition |
Accumulator energy storage diaphragm, hydraulic piston reciprocating cup seal |
Cross Reference OEM No. |
3115359805 |
Net Weight |
Approximately 0.45kg |
Applicable System |
Hydraulic breaker nitrogen accumulator system, impact cylinder reciprocating sealing system |
Warranty |
12 Months |
Certification |
ISO9001 Quality Management System Certified |
Key Selling Points
1. 100% OEM Dimension Matching, Direct Installation Without Modification
Fully compatible with original Atlas SC300 hydraulic breaker, precisely consistent with OEM size, outline and part number. No cutting, grinding or secondary modification required. Suitable for daily maintenance, field full overhaul and emergency on-site repair, significantly shortening equipment downtime and cutting labor maintenance costs.
2. Premium Composite Sealing Material, Stable Sealing in Full Temperature Range
The energy storage diaphragm uses fabric-laminated NBR substrate with excellent tear resistance and elastic recovery, resisting cracking after tens of thousands of high-frequency impact cycles; piston cup seal adopts high-hardness PU material with strong anti-extrusion and wear resistance. The material resists nitrogen aging, hydraulic oil corrosion and permanent deformation, maintaining stable sealing elasticity continuously from -40℃ alpine mining to 120℃ high-temperature underground construction environment.
3. Ultra High Pressure & Anti-Vibration Performance, Zero Leakage
All sealing components pass strict 26MPa high-pressure durability and long-cycle impact simulation tests. The curved bowl-shaped structure fits the inner cavity perfectly, completely eliminating accumulator nitrogen escape and cylinder internal oil leakage, stabilizing hydraulic striking pressure and ensuring constant impact force of SC300 breaker under heavy rock breaking, continuous striking and strong vibration working conditions.
4. Dedicated Position Custom Design, Easy Inventory & Maintenance
Independently molded exclusively for SC300 accumulator and piston sealing positions, with matched curved bowl contour; single independent packaging simplifies spare parts classification management, shortens overall repair cycle and reduces daily equipment operation & maintenance expenses.
5. Strict Multi-Stage Factory Inspection, OEM Equivalent Quality
Every set of diaphragm and cup seal undergoes air tightness leak test, high-pressure durability test and cyclic impact aging test before delivery. All performance indicators meet original factory technical standards, providing long-term stable operation guarantee for mining and construction hydraulic breaking equipment.
6. Wide Application Coverage
Specially matched for Atlas Copco SC300 hydraulic hammer, widely applicable to multiple heavy engineering and mining scenarios:
• Mining & Quarry: Open pit rock mining, underground roadway tunneling, stone quarry blasting pre-crushing
• Municipal Demolition: Concrete road breaking, old building demolition, pipeline foundation excavation
• Tunnel & Road Engineering: Mountain rock excavation, highway tunnel construction, subgrade hard rock crushing
• Water Conservancy: Hydropower tunnel rock breaking, dam foundation trimming
• Emergency Rescue: Frozen soil breaking, rock splitting, slope stabilization construction
