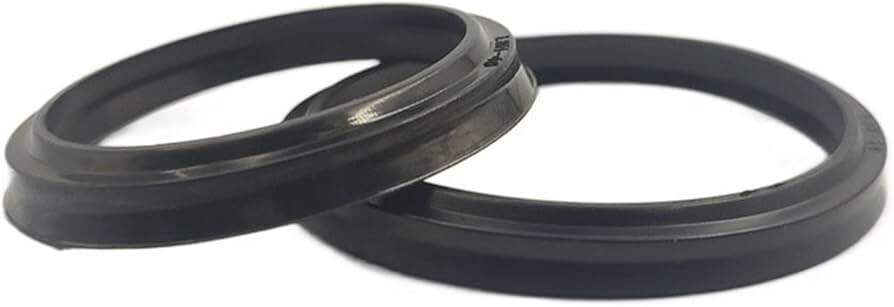

A seal kit that looks right and measures wrong causes the same failure as one that never fit at all — it just takes 200 hours to show it. The cross-section dimension tolerance matters most: a 0.2 mm oversize cross-section in an NBR O-ring generates 8–12% excess compression in an ISO 3601 groove, accelerating compression-set by 25–30% and reducing service life proportionally. The part number match is a necessary condition, not a sufficient one. Physical measurement of at least three seals per kit is the only way to confirm dimensional compliance.
The three measurements that matter: cross-section diameter (tolerance ±0.08 mm for standard O-rings, ±0.10 mm for larger sizes), inner diameter (tolerance per ISO 3601 Class A at ±0.5%), and Shore hardness (±3 Shore A from rated value). A calibrated Shore A durometer costs $80–140 and pays for itself in the first avoided premature seal replacement. For lip seals, check the lip angle — a 45° lip angle is standard for hydraulic applications; angles above 50° reduce sealing pressure at the bore contact, and that deviation isn't visible without measurement.
OEM Specification Verification Checklist
|
Measurement |
Tool Required |
Acceptable Tolerance |
Rejection Criteria |
|
O-ring cross-section diameter |
Calibrated micrometer (0.001 mm resolution) |
±0.08 mm from OEM spec (ISO 3601 Class A) |
Any deviation above ±0.15 mm — groove fit compromised |
|
O-ring inner diameter |
Cone mandrel or digital O-ring ID gauge |
±0.5% of nominal ID per ISO 3601 |
More than 1% variation — incorrect compression ratio in groove |
|
Shore A hardness |
Shore A durometer with 1-second hold per ISO 7619 |
±3 Shore A from rated compound value |
More than 5 Shore A deviation — compound substitution suspected |
|
Lip seal lip angle |
Optical comparator or digital angle gauge |
45° ±2° for hydraulic dynamic seal lips |
Above 50° or below 40° — sealing efficiency significantly reduced |
|
Overall kit material certification |
Compound certificate from supplier |
ASTM D2000 or DIN 53505 compliance documentation |
No certification — compound identity and quality unverifiable |
Most aftermarket kits fail the Shore hardness test, not the dimensional test — compound substitution is easier to hide than a dimensional error. Any supplier unwilling to provide compound certification is supplying an unverifiable product. HOVOO provides dimensional inspection reports and ASTM D2000 material compliance certificates with every seal kit supplied. References at hovooseal.com.
