Flow and Pressure Are Not the Same Thing
Most mismatches between a breaker and its carrier trace back to one misunderstanding: the difference between flow and pressure. People often don't understand the difference between pressure and flow, but these parameters are critical to determining the type of system needed to run a specific attachment. Flow — measured in litres per minute or gallons per minute — determines how fast the piston cycles. Pressure — measured in bar or PSI — determines how hard each blow lands. You can have correct pressure and completely wrong flow, and the breaker will run poorly both ways.

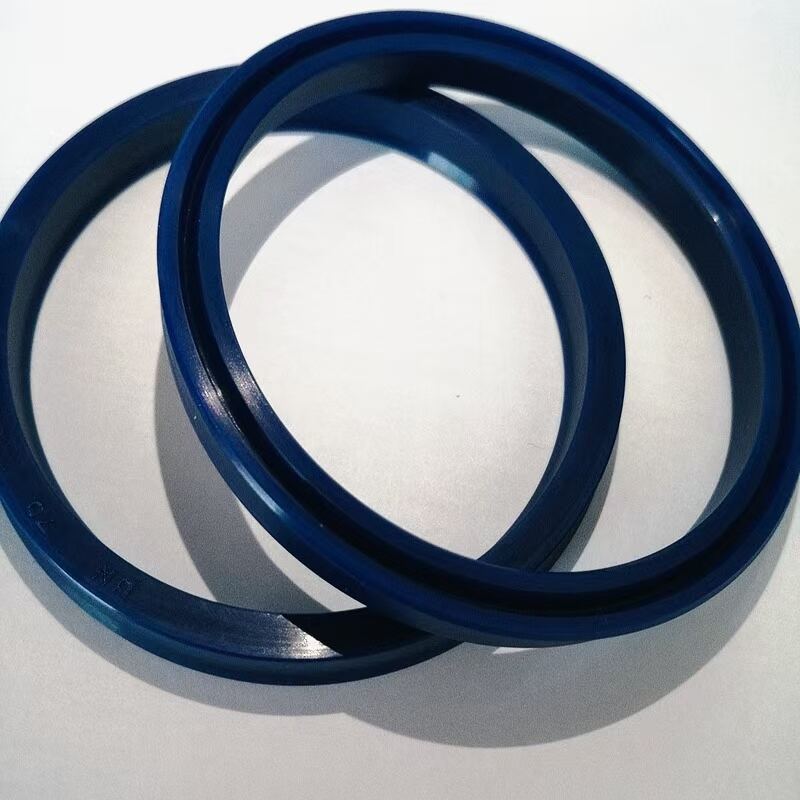

Too much oil causes the hammer to overspeed, which reduces seal life and can damage internal components. Improperly set relief or excessive back-pressure causes the breaker to overheat and transfers that heat to the carrier's hydraulic system. Too little oil flow reduces impact power. Additionally, too little oil flow won't provide the necessary lubricating film between internal moving parts and lead to damage. Both failure modes — over-flow and under-flow — damage seals. They just damage them differently and at different speeds.
The one-pump flow rule is the practical starting point. If the maximum flow on an excavator is 2 × 50 GPM — 100 GPM total — the breaker should not require more than 50 GPM. If the flow required is 60 GPM, you must use a bigger excavator or reduce the size of the breaker. The rule works because it prevents the breaker from consuming more than one pump's output, leaving the second pump available for boom, swing and bucket functions without causing the carrier's hydraulic system to starve.
Five Flow Scenarios — Symptom, Internal Effect, and Correct Response
The five scenarios below cover every flow state a breaker can operate in. The 'internal effect' column is what's happening inside the unit that the operator cannot see. The 'correct response' column includes the specific error to avoid in each case — because the intuitive fix is often the wrong one.
|
Flow State |
Observable Symptom |
Internal Effect |
Correct Response |
|
Flow too low (below breaker minimum) |
Piston cycles too slowly to build impact energy; breaker feels weak regardless of working pressure |
BPM drops 15–25%; impact energy reduced proportionally; lubricating film between piston and cylinder thins — accelerates wear even at normal pressure |
Verify carrier auxiliary circuit output at rated RPM with a flow meter. Check whether a diverter valve or secondary circuit is consuming flow. Do not compensate by raising carrier pressure — it will not restore BPM |
|
Flow in range but at lower end |
Breaker operates but toward the minimum frequency; productivity below rated specification |
Acceptable short-term; sustained operation at lower end of range causes oil to dwell in circuit longer, raises temperature |
Monitor oil temperature. If consistently above 70–80 °C, address the flow deficit rather than relying on the cooler |
|
Flow in specified range (optimal) |
Breaker performs to rated BPM and impact energy; oil temperature stable; seals operating within design parameters |
Full impact efficiency; seal life at rated interval; carrier hydraulic system operating within normal load |
Maintain. Check flow meter confirmation at installation; do not assume carrier datasheet figures equal actual output under load |
|
Flow too high (above breaker maximum) |
Piston overspeed; breaker cycles faster than the valve can direct; excessive heat generated in the breaker circuit |

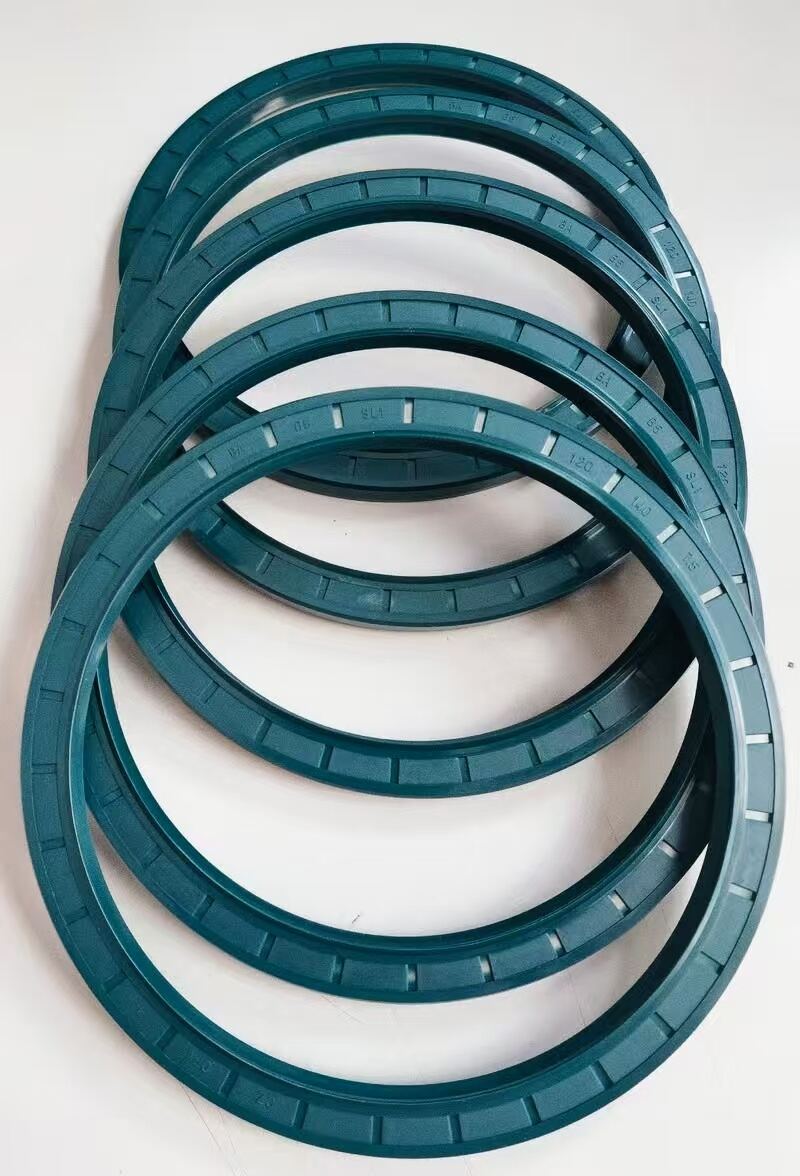

Seal life reduced — overspeed creates pressure spikes that exceed seal elastic limit on each stroke; accumulator diaphragm stress; carrier pump working harder than necessary |
Install a flow control valve to cap the breaker circuit output at the breaker's specified maximum. Do not rely on the breaker's relief valve — it is not a flow-limiting device |
|
Return line back-pressure too high |
Piston's return stroke slowed by resistance to oil returning to tank; breaker feels sluggish despite correct inlet flow |
BPM drops, oil temperature rises — energy is being dissipated as heat in the return line rather than delivered as impact; same symptom pattern as low inlet flow but different cause |
Check return line hose diameter (undersized hoses are the most common cause), inspect filter condition, and confirm the return path does not share a restricted line with other functions |
What the Datasheet Doesn't Tell You
The carrier manufacturer's datasheet quotes auxiliary circuit flow at rated RPM with all other functions idle. That's not how a breaker gets used. On a typical shift, the operator breaks material, then swings to check the result, then repositions. Swing, boom raise, and bucket curl all draw hydraulic flow simultaneously. On machines where the auxiliary circuit and the primary circuits share a single pump, active swing during a breaking cycle can reduce breaker flow by 15–30% temporarily. The breaker doesn't stall — it just weakens at the moment the operator is trying to position, which is when a stubborn face needs the most consistent energy delivery.
Return line back-pressure is the specific variable that causes the most confusion in the field because its symptom pattern is identical to low inlet flow. Both produce a sluggish breaker and elevated oil temperature. The diagnostic difference: with low inlet flow, the carrier pump is running at reduced output and you can confirm it with a flow meter at the inlet. With high back-pressure, the inlet flow is correct but the oil is meeting resistance getting back to the tank — usually because a return hose is undersized, a filter is clogged, or the return path shares a restricted line with another function. Technicians who go straight to adjusting the carrier's hydraulic output to fix a back-pressure problem are adding heat to the circuit, not solving it.
One installation step that prevents all of these diagnoses from becoming recurring problems: use a flow meter between the breaker's inlet and outlet hoses when setting up. It is the single most useful step most installers skip. Twenty minutes with a flow meter at commissioning confirms the actual circuit output under load, identifies any back-pressure issue before the first hour of operation, and gives the service team a baseline to compare against when the breaker's performance degrades six months later. A flow reading taken at installation is worth more than any number of replacement seal kits ordered because the root cause was never identified.
