Start with the Material, Not the Machine
Most buyers start by entering the excavator weight into a selection chart and picking the heaviest breaker the chart allows. That works when all you're breaking is a single material type. The moment the job involves granite on Monday and reinforced concrete slabs on Wednesday, weight-class alone won't get you to the right model — because the same carrier weight can support breakers of very different specifications, and those differences matter enormously in the field.
The more useful starting point is rock hardness. Geologists classify rock using the Protodyakonov coefficient, or f-value: soft rock below f = 6 (shale, mudstone, weathered formations), medium-hard from f = 6 to 12 (limestone, sandstone, marble), and hard rock above f = 12 (granite, basalt, ore-bearing formations). Each range requires a fundamentally different breaker specification — not just a larger or smaller version of the same unit, but a different balance of chisel diameter, strike energy, and blow frequency.
The relationship between energy and frequency isn't arbitrary. Hard rock needs a heavy, slow strike to drive fractures deep into the material — high frequency on granite disperses energy across multiple shallow impacts that barely propagate the crack. Soft rock is the opposite: a powerful blow embeds the chisel and the surrounding material closes around it. High frequency and lower energy keeps the chisel working at the surface where it's productive. Getting this wrong doesn't just reduce output. It causes premature chisel failure and, in the case of oversized units on soft material, accelerated seal wear from hydraulic overpressure.
Material–Model Selection Reference
The table below maps five material categories to chisel diameter, strike energy class, optimal blow frequency, and the operating notes that don't appear in a standard spec sheet but determine whether the job goes smoothly or generates callbacks.
|
Material |
Typical Rock / Substrate |
Chisel & Energy |
Frequency |
Operating Notes |
|
Soft rock f < 6 |
Shale, mudstone, weathered rock, soft limestone |
< 80 mm chisel; strike energy < 800 J |
High — 300–350 BPM |
Pressure at 70–80% of rated; shallow insertion depth ≤ ½ chisel Ø; avoid high-energy units — wet soft rock sticks to chisel |
|
Medium-hard f = 6–12 |
Dense limestone, sandstone, marble |
100–150 mm chisel; 1,200–1,800 J |
Medium — 250–300 BPM |
Pressure at 85–90% rated; balance efficiency and frequency; moil point or flat chisel depending on fracture pattern needed |
|
Hard rock f > 12 |
Granite, basalt, ore-bearing rock |
≥ 150 mm chisel; ≥ 1,800 J |
Low — 200–250 BPM |
Pressure at 90–95% rated; heavy hammer, slow strike; blunt tool for secondary reduction; pyramidal for mining face penetration |
|
Reinforced concrete |
Foundations, slabs, bridge decks, retaining walls |
100–135 mm chisel; 1,500–3,000 J |
Medium-high — 280–400 BPM |
Moil point for initial penetration; chisel for cutting along rebar lines; work from edge inward; blank firing risk is high on concrete that suddenly gives way |
|
Asphalt & composite pavement |
Road surfaces, overlays, utility trench cut-outs |
Flat/wide chisel; 800–1,500 J |
Medium-high — 280–380 BPM |
Short burst intervals — asphalt bends before fracturing; pre-cut saw line creates free edge; oversized unit counter-productive on warm material |
Two Decisions After the Material Is Confirmed
Once the material type narrows the chisel class, two more decisions remain before a specific model can be selected: duty cycle and chisel metallurgy.

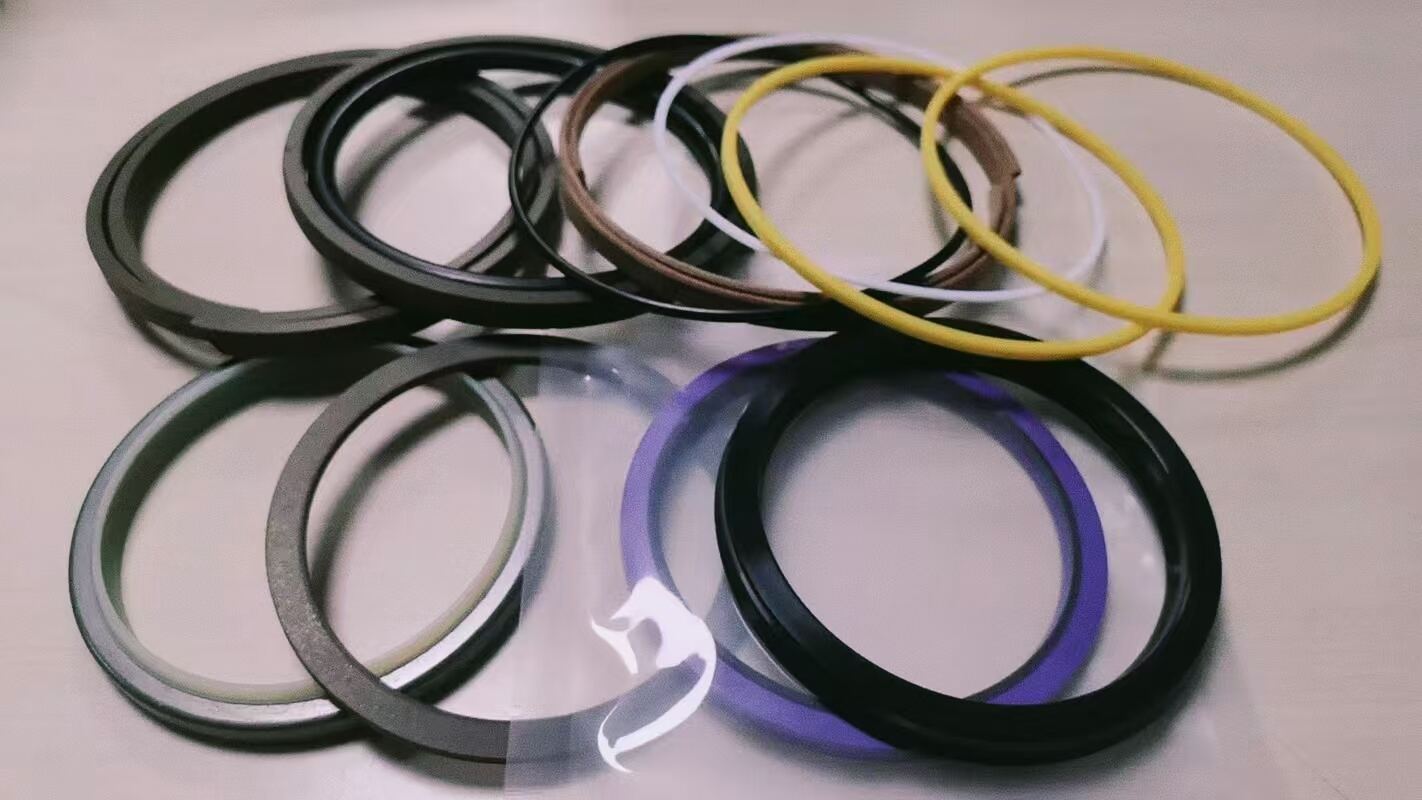

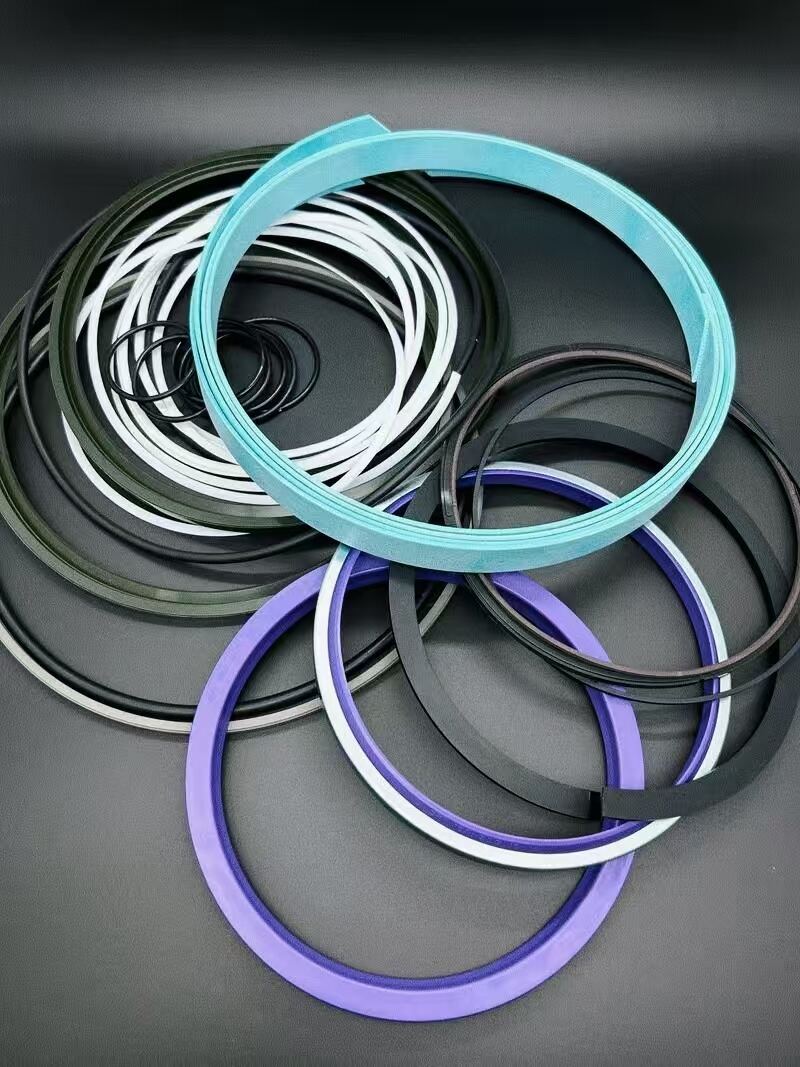

Duty cycle is how long per day the breaker actually runs under load. A construction breaker on a demolition site might run four hours of active breaking out of an eight-hour shift — the rest is repositioning, loading debris, and waiting for trucks. A quarry primary breaker might run six to seven hours of continuous breaking. Construction breakers typically allow seal replacement at 2,500–3,000 hours; mining-grade units used continuously need seal inspection from 1,500–2,000 hours because the higher sustained pressure accelerates wear. Selecting a construction-rated model for continuous mining duty is the specification error that produces the most complaints, because everything works fine for the first 1,200 hours and then fails faster than expected for the next 800.
Chisel metallurgy matters more than most buyers check. Premium chisels use 42CrMo alloy steel with segmented induction hardening: the tip hardened to HRC 52–55 to resist mushrooming, the shank tempered to 45–48 HRC so retaining pins don't crack the tool body, and the core kept ductile to absorb the piston's impact as a shock absorber. Budget chisels are often through-hardened uniformly — which makes them either too brittle (snapping under blank fire conditions) or too soft (mushrooming within 200 hours on granite). On a limestone quarry running 40 hours per chisel with a correct unit, a mismatched cheaper chisel running the same job was replaced every 15 hours. The chisel cost difference was 30%. The replacement frequency difference was 167%.
A field case that illustrates the complete selection sequence: an Ontario limestone quarry was running a 32-tonne excavator with a competitor's 150 mm breaker on boulders ranging from 0.5 to 2 cubic metres. Tool life was 40 hours due to side loading on irregular shapes. Switching to a 155 mm chisel at 200–220 bar — one size class up, matching the excavator's upper hydraulic capacity — provided better stability against side forces and allowed the operator to position for more direct vertical strikes. Tool life extended to 120 hours, and productivity rose by 20% simply because the operator spent less time repositioning for difficult approach angles. The carrier hadn't changed. The excavator weight hadn't changed. Only the breaker model and chisel diameter had.
