Hydraulic Breaker Chisel Types: Classification & Application Scenario Matching

The Chisel Is Not Interchangeable — It Is Application-Specific

Five chisel profiles cover the full range of hydraulic breaker applications: moil point (conical), flat chisel, blunt/pyramid, wedge, and forged. Each has a different contact geometry that determines how the stress wave from the piston is distributed into the material at the point of impact. Using the wrong profile for the material does not merely reduce efficiency 2014 it creates a loading pattern the chisel steel was not optimised for, accelerating wear and sometimes producing lateral load on the front bushing that the bushing was not designed to absorb. The front bushing and dust seal wear significantly faster when the chisel profile and material type are mismatched, because lateral resistance at the chisel tip creates side-load at the bore.

The moil point is the default for reasons of versatility: it penetrates most materials from soft limestone to medium granite, starts fractures at a single concentrated point, and works in both primary and secondary breaking contexts. Its limitation is in secondary breaking of large flat boulders where it tends to punch through the surface without producing a fracture network across the piece. For that application, the blunt or pyramid profile distributes the energy across the boulder face and initiates a radial crack system more effectively. For cutting straight lines in asphalt or concrete — trench edges, expansion joint repair — the flat chisel provides a defined cut line that moil point and blunt tool cannot replicate.

Chisel diameter determines fit in the front bushing and must match the breaker model exactly. A chisel 2 mm under-diameter runs with excessive clearance and allows lateral movement that scores the piston face. HOUFU supplies replacement chisels in 42CrMoA alloy steel for standard diameters across major breaker brands, heat-treated to HRC 52–58 for the correct balance of hardness and toughness. Mixing chisel diameters across units in a fleet — using a 90 mm chisel in a bore specified for 95 mm — is the most common parts sourcing error and the one that most reliably produces early piston damage.

The Bushing-Chisel Interaction That Determines Front Seal Life

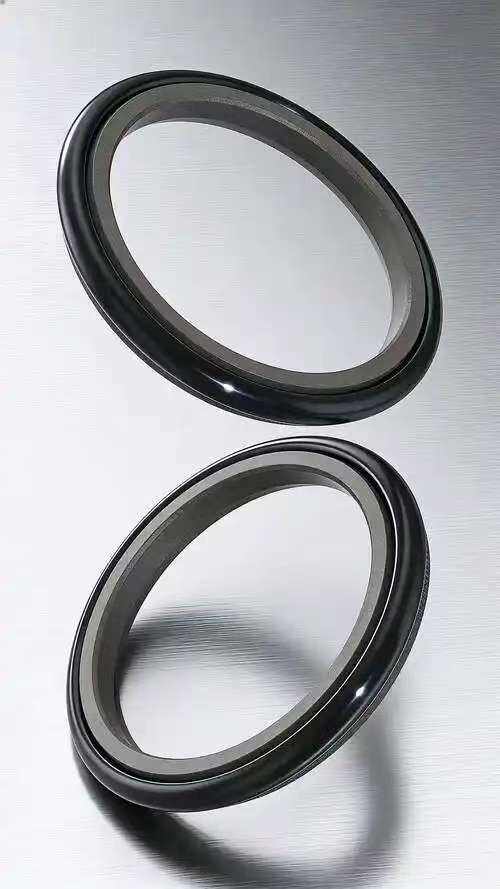

Every chisel profile creates a different force distribution at the front head, and that distribution affects how the bushing loads the front dust seal. A moil point operating perpendicularly on hard rock creates a nearly pure axial load — the seal sees consistent circumferential compression and wears evenly. A flat chisel operating at a slight angle to cut a trench edge creates a bending moment at the shank that loads one side of the bushing preferentially. Over a full shift of trench cutting work, the asymmetric loading leaves one quadrant of the front dust seal consistently over-compressed while the opposite quadrant is under-compressed — an uneven seal profile that fails first at the over-compressed sector. Operators who notice that their front seal always weeps on the same side of the chisel bore are observing the result of consistent asymmetric tool loading, not a seal quality problem.
