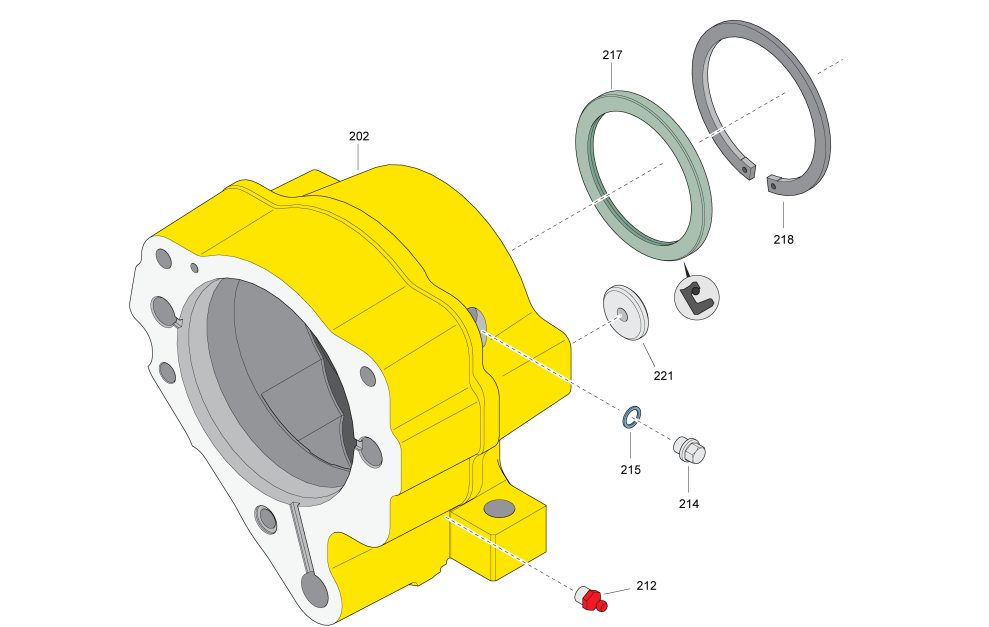

Chile's copper mining industry—Codelco's Chuquicamata and El Teniente, Antofagasta's Los Pelambres, BHP's Escondida—represents the world's largest concentration of copper extraction, and a correspondingly large installed base of Atlas Copco RD18U drifters on underground development and production drilling. The gear housing in the RD18U is the structural interface between the rotation motor and the front housing bore—it carries the rotation motor's torque reaction force into the drifter body while containing the rotation gear assembly and shank adapter chuck. Its fit precision determines whether the rotation motor stays concentric with the percussion bore under the combined torque and percussion loading.
In Chilean porphyry copper formations—typically granodiorite and diorite host rock at 120–180 MPa—the rotation torque demand is high because the abrasive silicate mineralogy resists turning. A gear housing that has developed clearance at its mounting face from fretting wear allows the rotation motor to micro-oscillate around the shank axis under torque reversal, producing asymmetric loading on the chuck bearings. Over 200–300 hours, that micro-oscillation fretting generates metal debris that migrates into the shank lubrication circuit and accelerates guide bushing wear.
Gear Housing Fit Inspection: Chilean Maintenance Practice
|
Inspection Step |
Method |
Acceptable Finding |
Replacement Trigger |
|
Mounting face fretting |
Clean face; visual under lamp |
No fretting marks; flat contact |
Any fretting >0.5 mm area |
|
Housing concentricity |
Dial indicator at chuck bore |
<0.05 mm runout |
>0.08 mm runout |
|
Fastener torque |
Torque wrench on housing bolts |
To specified torque |
Bolt loosens below spec torque |
|
Lubrication port |
Flow check at shank lube entry |
Free flow; no blockage |
Restricted flow requiring cleaning |

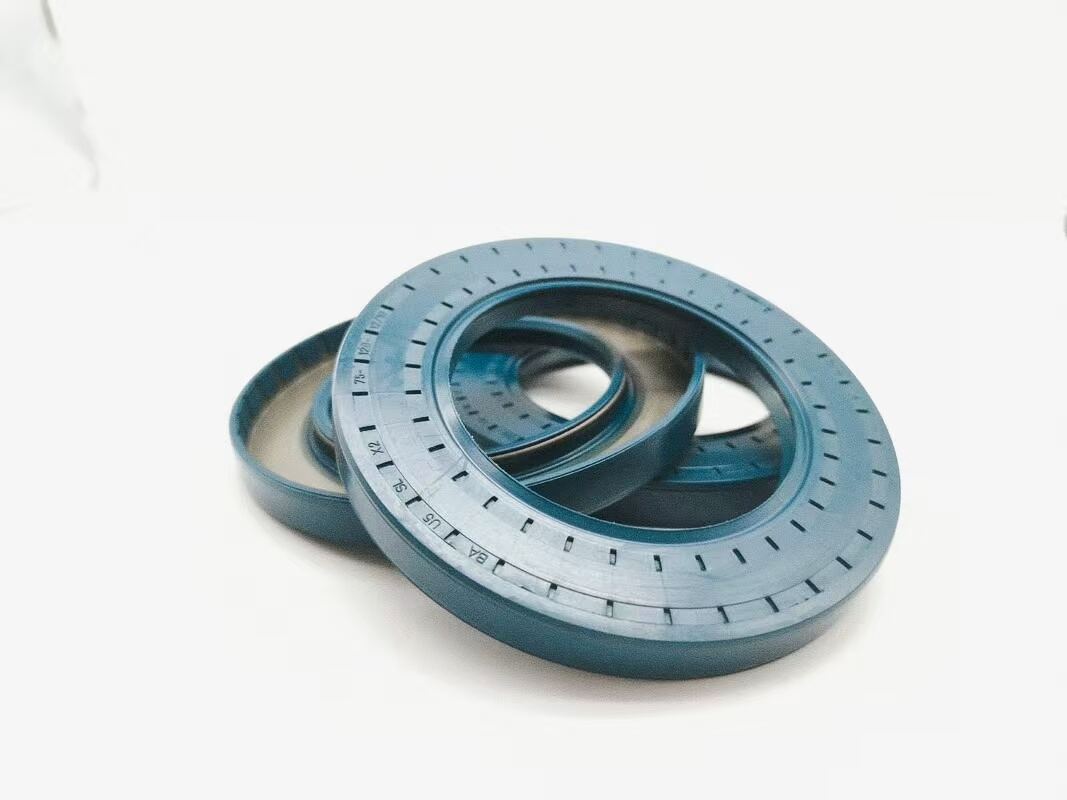

Chilean operations at high-altitude Atacama sites have an additional consideration: the temperature swing between overnight (−5°C) and midday drilling conditions (25°C surface) produces thermal cycling at the gear housing mounting flange that gradually loosens the torque-loaded joint if the fasteners aren't checked at each percussion kit service. A loose gear housing produces a characteristic rotation noise—low-frequency, slightly irregular—that experienced Chilean jumbo operators identify by sound during the first positioning cycle of a shift. HOVOO supplies RD18U gear housings and matched chuck seal kits. Full references at hovooseal.com.
