Vane Pump: Working Principle & Maintenance Guide

The vane pump sits between the gear pump and the piston pump in most ways that matter: quieter than a gear pump, simpler than a piston pump, cheaper than either in the mid-pressure range where it operates best. For steady industrial duty at pressures between 100 and 200 bar, it remains a well-proven choice that is frequently underestimated.

The Mechanism in Plain Language

A slotted rotor turns off-center inside a cam ring. Rectangular vanes in the rotor slots are pushed outward by centrifugal force or hydraulic pressure — their tips always in contact with the cam ring surface. Because the rotor is eccentric, the volume between adjacent vanes changes continuously as the rotor turns. Growing volume draws fluid in from the inlet port; shrinking volume expels it through the outlet. The cam ring profile determines how smoothly these volume changes occur, and good cam ring design makes all the difference to noise and pressure ripple output.

Balanced Designs and Why They Last Longer

An unbalanced vane pump with one inlet and one outlet generates a net radial force on the rotor shaft — the pump is, in effect, trying to push the rotor sideways. Balanced designs place two inlet ports and two outlet ports at opposite sides of the cam ring, generating forces that cancel each other. The shaft and bearings carry no net radial load from the hydraulic pressure. In steady industrial hydraulic pump service that runs thousands of hours a year, the bearing life difference between balanced and unbalanced designs is substantial.

What Actually Wears Out

Vane tips wear against the cam ring. In clean, properly filtered oil this is gradual and predictable. In contaminated oil it accelerates dramatically — abrasive particles in the fluid are carried directly into the vane tip-cam ring contact zone. Replacing vanes when clearances exceed the service manual limit is cheap maintenance. Replacing a scored cam ring is not.

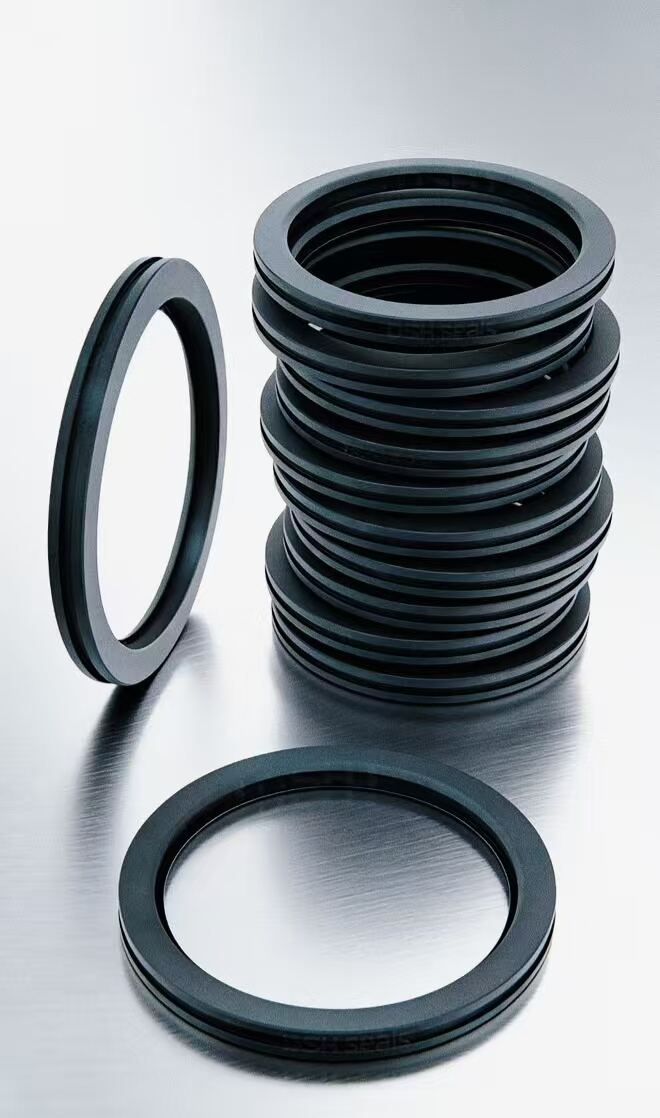

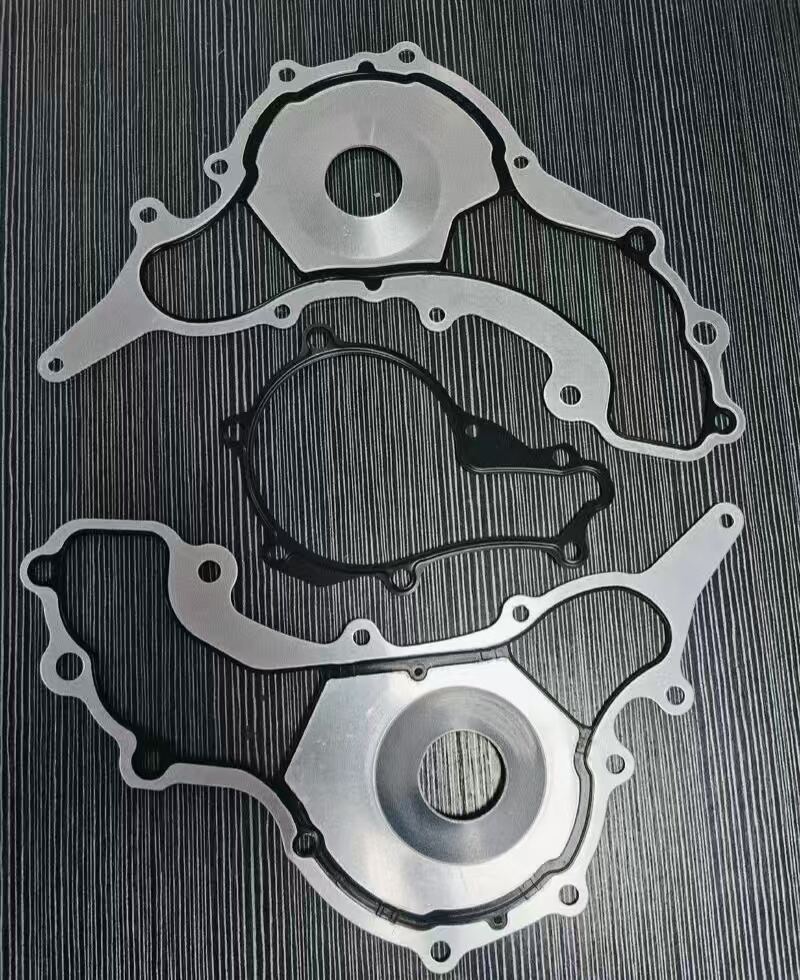

Shaft seals and o-rings degrade on their own timeline regardless of contamination. HOVOO / HOUFU vane pump seal kits include every rubber component for a complete rebuild — pressure plate o-rings, shaft seals, and body seals. HOVOO HOUFU seal kits are available for all major vane pump platforms at hovooseal.com.
