French infrastructure contractors—working on the Grand Paris Express tunnel expansion, the Lyon-Turin Alpine rail base tunnel, and hard-rock quarrying in the Massif Central—treat Atlas Copco RD18U overhaul kits as a quality-controlled procurement item rather than a commodity purchase. The reasoning is rooted in experience: aftermarket kit components that are dimensionally close but not exact to OEM specification fail faster and sometimes fail differently than OEM, producing unexpected failure modes that the maintenance team's diagnostic experience doesn't cover.

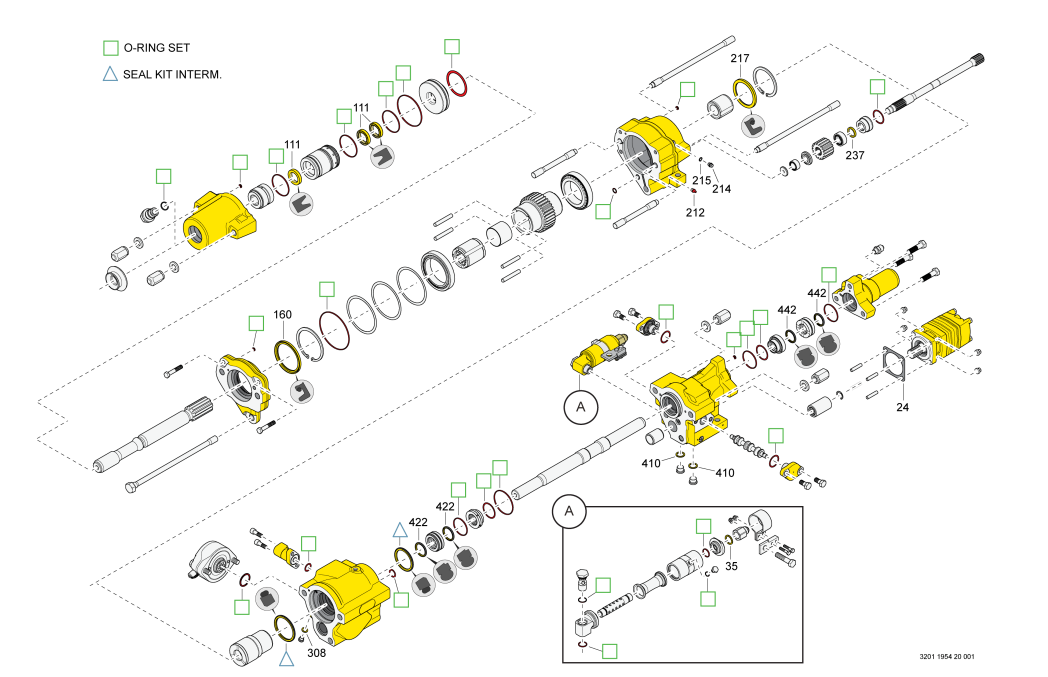

A genuine RD18U overhaul kit contains every wear component that requires replacement at a full service interval: percussion seals, flushing seals, O-rings, back-up rings, piston guide seal, wiper ring, and the accumulator check valve O-ring. The value of the complete kit isn't just parts access—it's the dimensional match between all components. A percussion seal manufactured to a clearance that assumes a specific bore diameter change from a specific O-ring compression will perform correctly only if the O-ring is also from the same dimensional specification. Mix-and-match from different suppliers changes those interactions in ways that the individual component specifications don't predict.
Overhaul Kit Contents and Their Interdependencies
|
Component |
Fits With |
Dimensional Dependency |
Risk of Mix-Match |
|
Percussion seal |
Piston OD + cylinder bore ID |
Lip contact force set by bore gap |
Different lip geometry = different contact load |
|
Flushing seal |
Shank OD + housing bore |
Contact width designed for OD tolerance |
Wrong width = uneven contact, early bypass |
|
Back-up ring |
O-ring + groove width |
Groove fill prevents extrusion |
Wrong thickness = extrusion at pressure spike |
|
Check valve O-ring |
Port face + valve body |
Port face seating pressure |
Wrong hardness = embedding or insufficient seal |
French tunneling contracts on the Grand Paris Express specify genuine Atlas Copco parts in the maintenance contract terms—a purchasing discipline that reflects hard experience with warranty disputes when non-OEM components fail before the next scheduled service. HOVOO supplies genuine-specification RD18U overhaul kits with OEM-matched dimensions and compound specifications for the French market, available with batch documentation on request for regulated infrastructure contracts. Full kit references at hovooseal.com.
