BEILITE BLT 215-6 Hydraulic Hammer Seal Kits
BEILITE BLT 215-6 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

Product weight (Seal kit / With installation tool / With mounting adapter plate)

7.2 kg / 9.5 kg / 12.3 kg

Compatible carrier weight (min/max)

20 t / 28 t

Compatible flow rate range (min/max)

 200 l/min / 280 l/min

Maximum operating pressure

220 bar

Maximum permissible back pressure

60 bar

Rated power of sealing system

125 kW

Compatible impact frequency range (min/max)

420 Bpm / 1050 Bpm

Operating noise level

104 dbA

Seal material

 High-pressure Resistant Polyurethane + FKM Fluororubber + Metal Skeleton Reinforcement

Operating temperature range

-20℃ ~ +150℃

Pressure resistance rating

300 bar (peak)

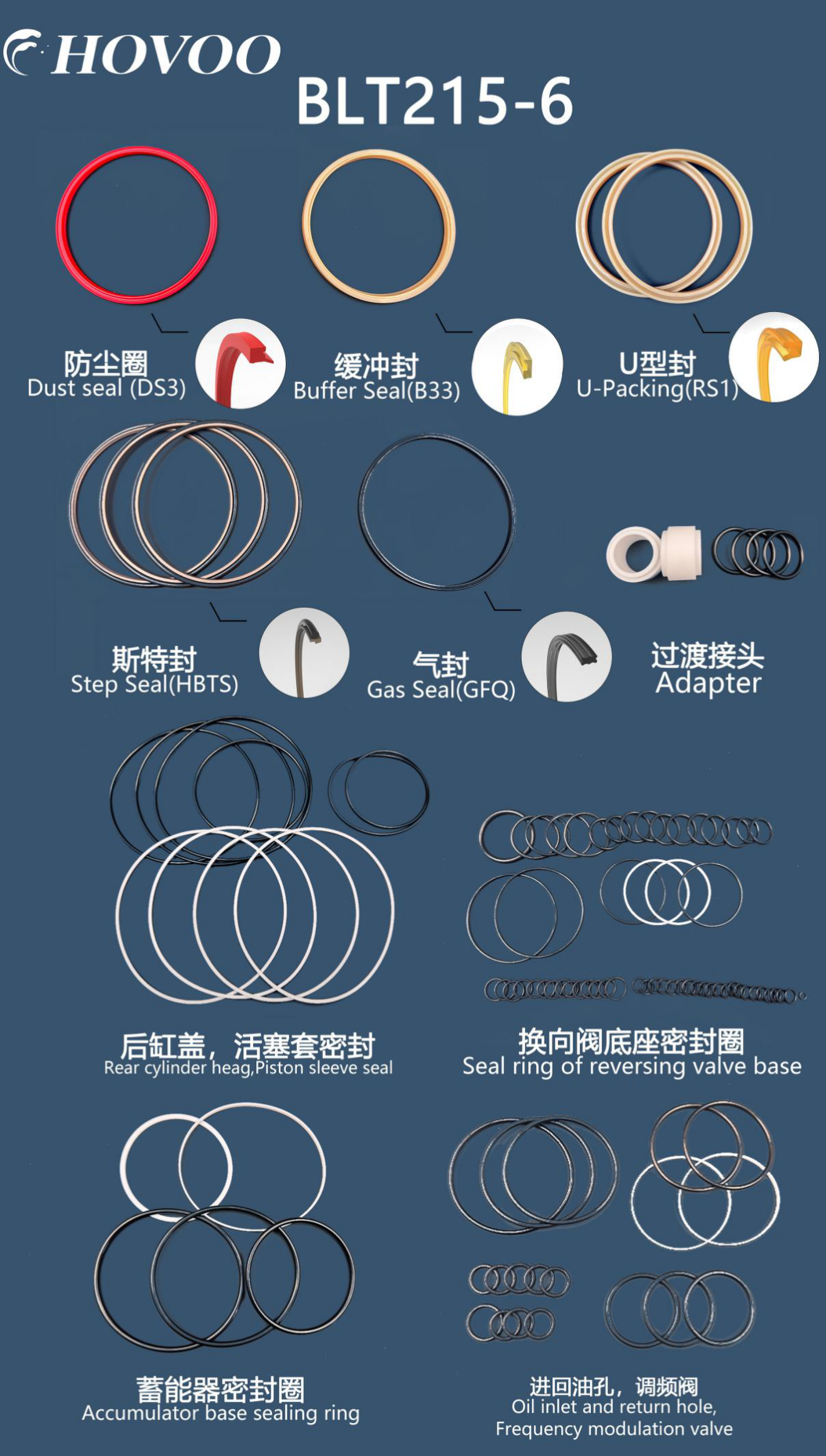

BLT 215-6 Breaker Seal Kit Components

beilite blt 215 6 hydraulic hammer seal kits-2

Additional Notes

  • This seal kit is engineered to fit the core sealing sections of the BLT215-6 22-ton class hydraulic breaker (piston cylinder, tool bushing, accumulator end cap), serving as a premium OEM-equivalent replacement component.
  • The material adopts a three-layer composite structure: the high-modulus polyurethane sealing lip withstands high-frequency impact loads, the FKM layer delivers exceptional high-temperature and oil resistance, and the metal skeleton ensures dimensional stability during heavy-duty operation, perfectly adapting to harsh mining and construction scenarios.
  • The pressure parameters have been validated through field testing on 20t-28t excavators, capable of enduring a peak instantaneous impact of 300 bar, meeting the demands of continuous crushing operations in quarries and large-scale infrastructure projects.
  • The sealing precision complies with ISO international standards, with a leakage rate controlled at ≤0.4ml/min, effectively eliminating hydraulic oil internal leakage that would lead to breaker idle strokes and power loss.
  • The mounting adapter plate must match the original BLT215-6 specifications. It is highly recommended to replace the supporting dust seal, wiper seal, and O-rings simultaneously during installation to maximize the service life of the entire sealing system.
  •  This seal kit is compatible with both standard and low-temperature hydraulic oils, ensuring reliable performance in extreme environmental conditions ranging from -20℃ to +150℃.
