FEATURES
Item |
Specification |
Product weight (Seal kit / With installation tool / With mounting adapter plate) |
4.2 kg / 5.0 kg / 6.8 kg |
Compatible carrier weight (min/max) |
2.5 t / 5.3 t |
Compatible flow rate range (min/max) |
30 l/min / 65 l/min |
Maximum operating pressure |
120 bar |
Maximum permissible back pressure |
30 bar |
Rated power of sealing system |
13 kW |
Compatible impact frequency range (min/max) |
600 Bpm / 1360 Bpm |
Operating noise level |
89 dbA |
Seal material |
Polyurethane + Nitrile rubber composite |
Operating temperature range |
-30℃ ~ +120℃ |
Pressure resistance rating |
180 bar (peak) |

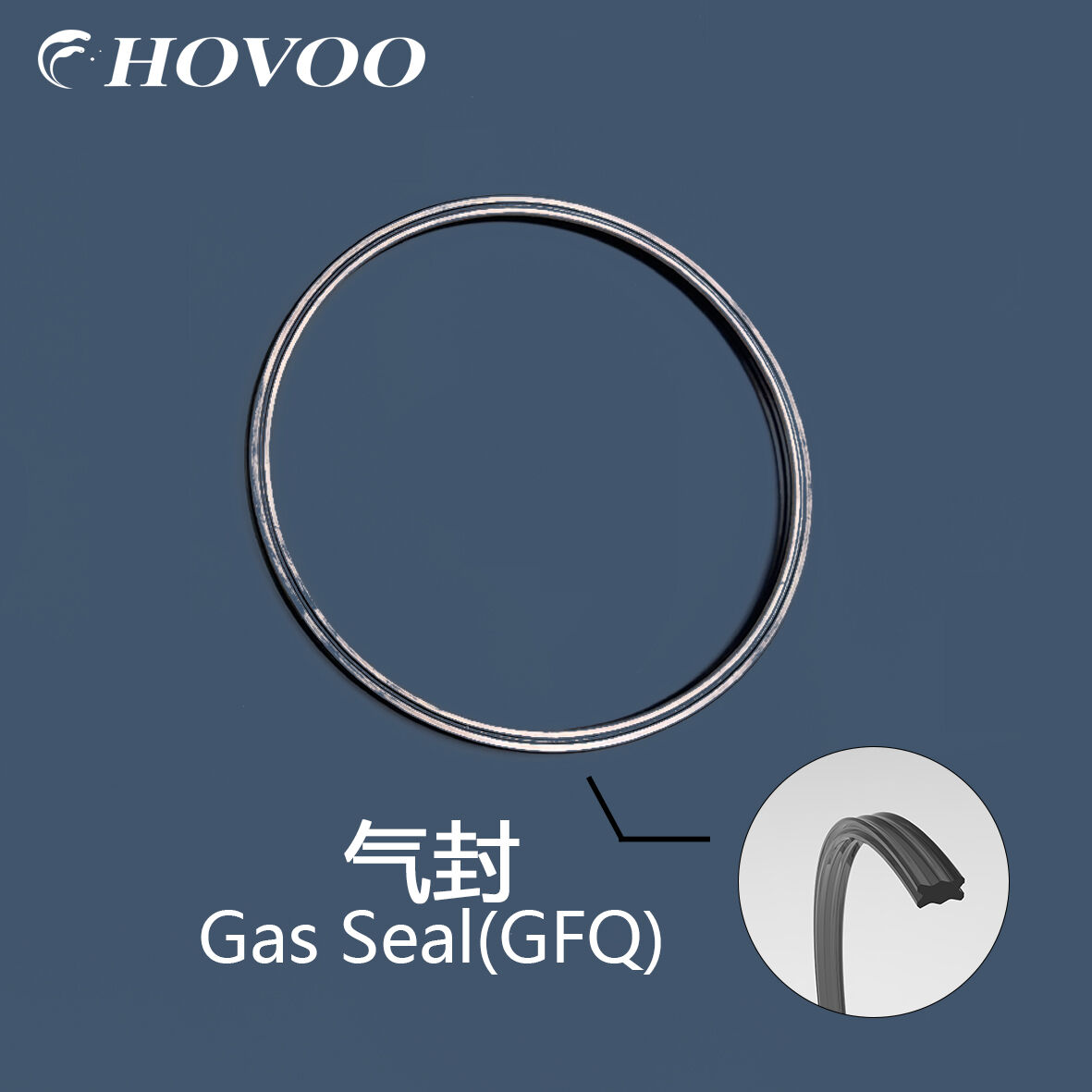

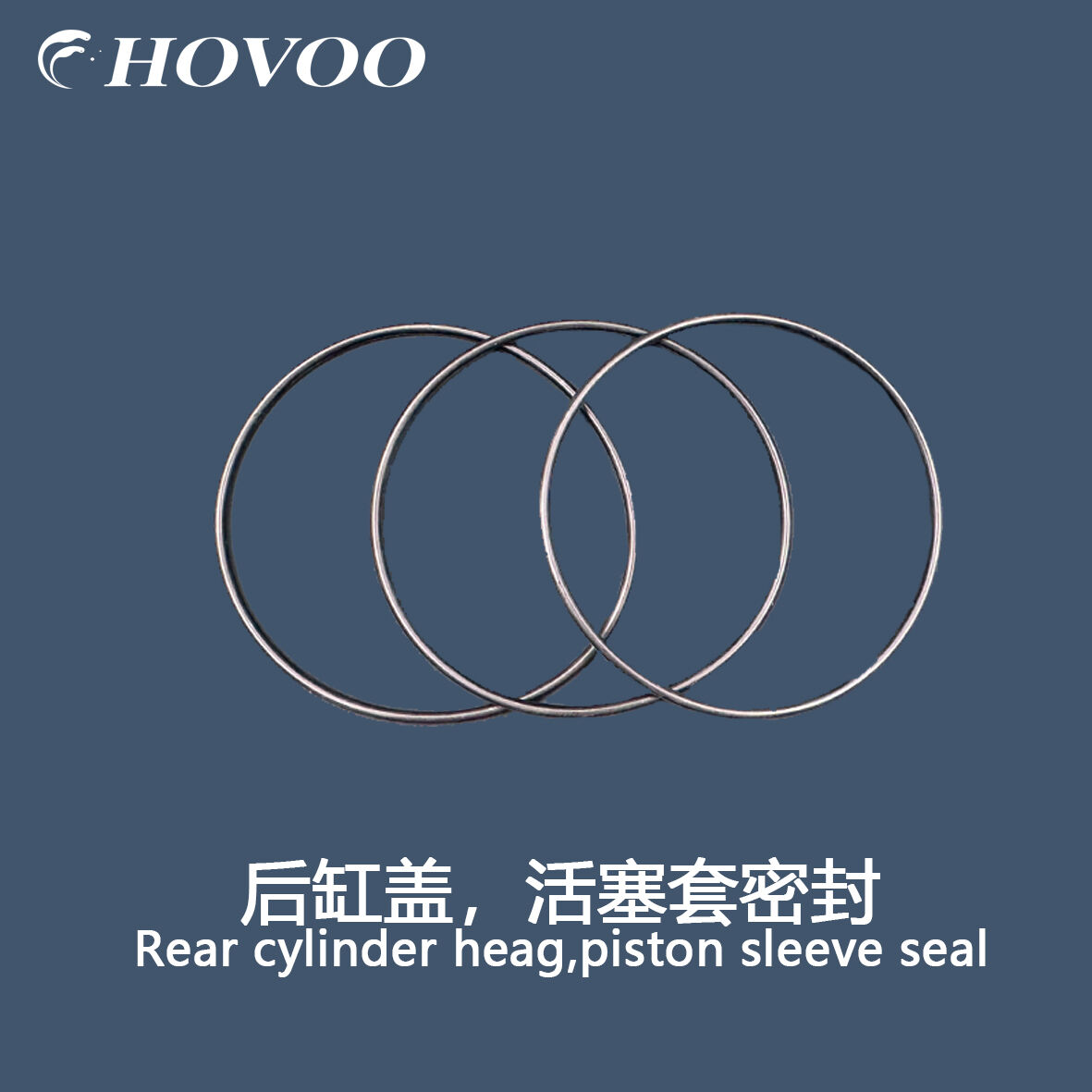

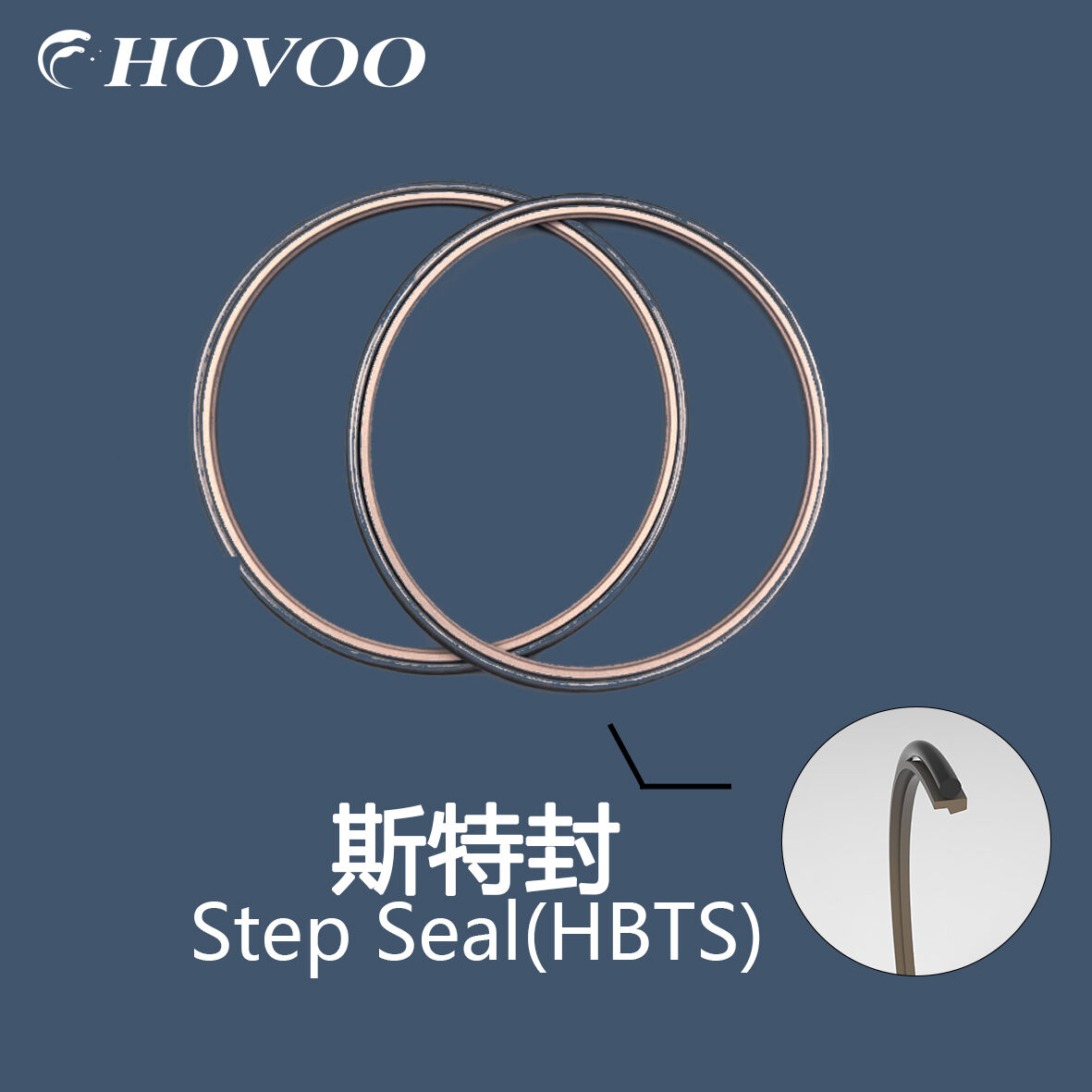

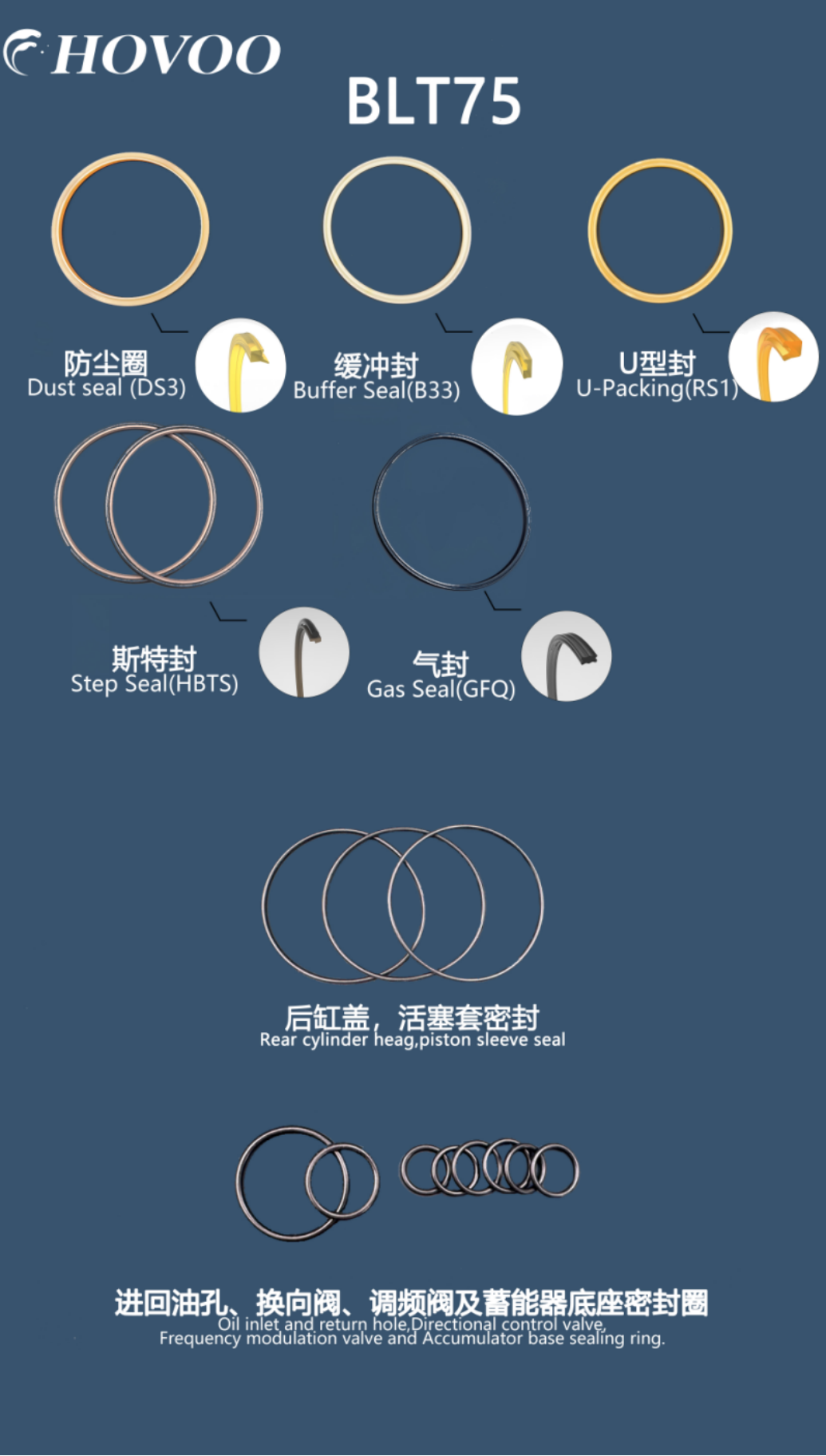

BLT 75 Breaker Seal Kit Components
Additional Notes
Welcome to HOVOO, a Chinese seal factory. Production of PU, Rubber and PTFE seals. The seals include O-ring, piston seal, rod seal, Gray ring and gas seal.
