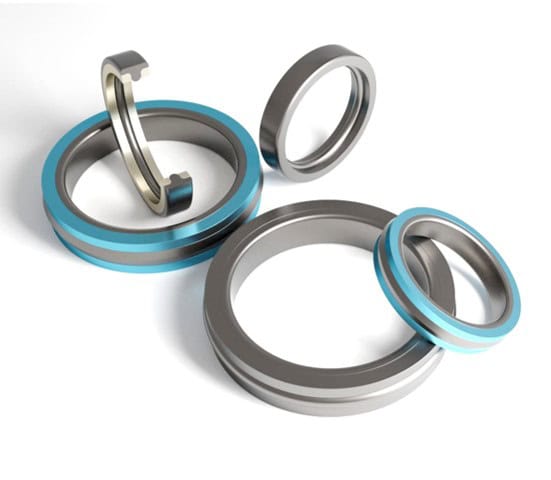

Replacing the seals and still finding oil is the most demoralizing outcome in drill maintenance. In most cases, the seal is fine. The bore it's running against isn't. After 3,000–4,000 operating hours, the percussion bore surface develops micro-scoring in the 0.08–0.14 mm range — invisible to the naked eye, catastrophic to lip seals. The new seal pressurizes against that damaged track and bypasses within the first 40–60 operating hours, making it look like a bad seal kit when the cylinder body is the real problem.
A second source that rarely gets checked: housing bore geometry. At 160–180 bar percussion pressure, an out-of-round bore — even at 0.06 mm deviation — creates a micro-gap at the high point of each piston stroke. Oil escapes through that gap regardless of seal compound. The fix isn't a better seal; it's a bore measurement with an inside micrometer before installing anything. If bore wear exceeds 0.15 mm on premium cast-iron bodies (0.10 mm on gray-iron platforms), the cylinder needs to be replaced, not re-sealed.
Diagnosing the Actual Leak Source Before Opening the Drill
|
Symptom |
Most Likely Cause |
Diagnostic Test |
Correct Action |
|
New seal leaks within 50 hours of install |
Scored percussion bore surface beyond Ra 0.8 μm |
Check bore with bore gauge — measure at 3 axial points |
Replace cylinder body; new seal won't hold on damaged bore |
|
Oil leaks only at high percussion frequency (above 50 Hz) |
Out-of-round bore creating cyclical bypass gap |
Measure bore roundness with inside mic at 0°, 45°, 90° |
Bore grinding or cylinder replacement required |
|
Seal lip visibly intact but oil still bypasses |
Wrong Shore hardness for pressure class — seal too soft |
Check operating pressure; confirm Shore 90 vs Shore 95 requirement |
Re-kit with Shore 95 PU if pressure exceeds 190 bar |
|
Leak appears at rod face, not lip |
Wiper seal installed with lip facing inward (reversed) |
Inspect orientation during disassembly — wiper lip must face outward |
Reinstall with correct orientation; flush contamination first |
|
Seals hold for 200 hours, then fail suddenly |
Oil contamination above ISO 16/14/11 attacking seal compound |
Pull oil sample; send for particle count analysis |
Flush circuit to ISO 16/14/11 before next seal installation |
The 10-minute inspection of bore surface and roundness before seal installation eliminates 70–80% of repeat leak complaints. Run a bore gauge at three axial positions and two angular orientations — that six-measurement check costs nothing and saves a second teardown. HOVOO supplies OEM-dimension-verified seal kits with bore measurement documentation for all major drifter platforms, so engineers can confirm fit before assembly rather than after. References at hovooseal.com.
