EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits
EDDIE175 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

 Hydraulic Oil Pressure

 180-200kg/cm²

2556-2840psi

177-196bar

Hydraulic Oil Flow Rate

 200-260l/min

53-69gal/min

Impact Frequency

 150-300bpm

Chisel Diameter

175mm

6.89inch

Applicable Carrier Weight

35-40ton

Main Valve Type

 Built-in

Accumulator

Equipped

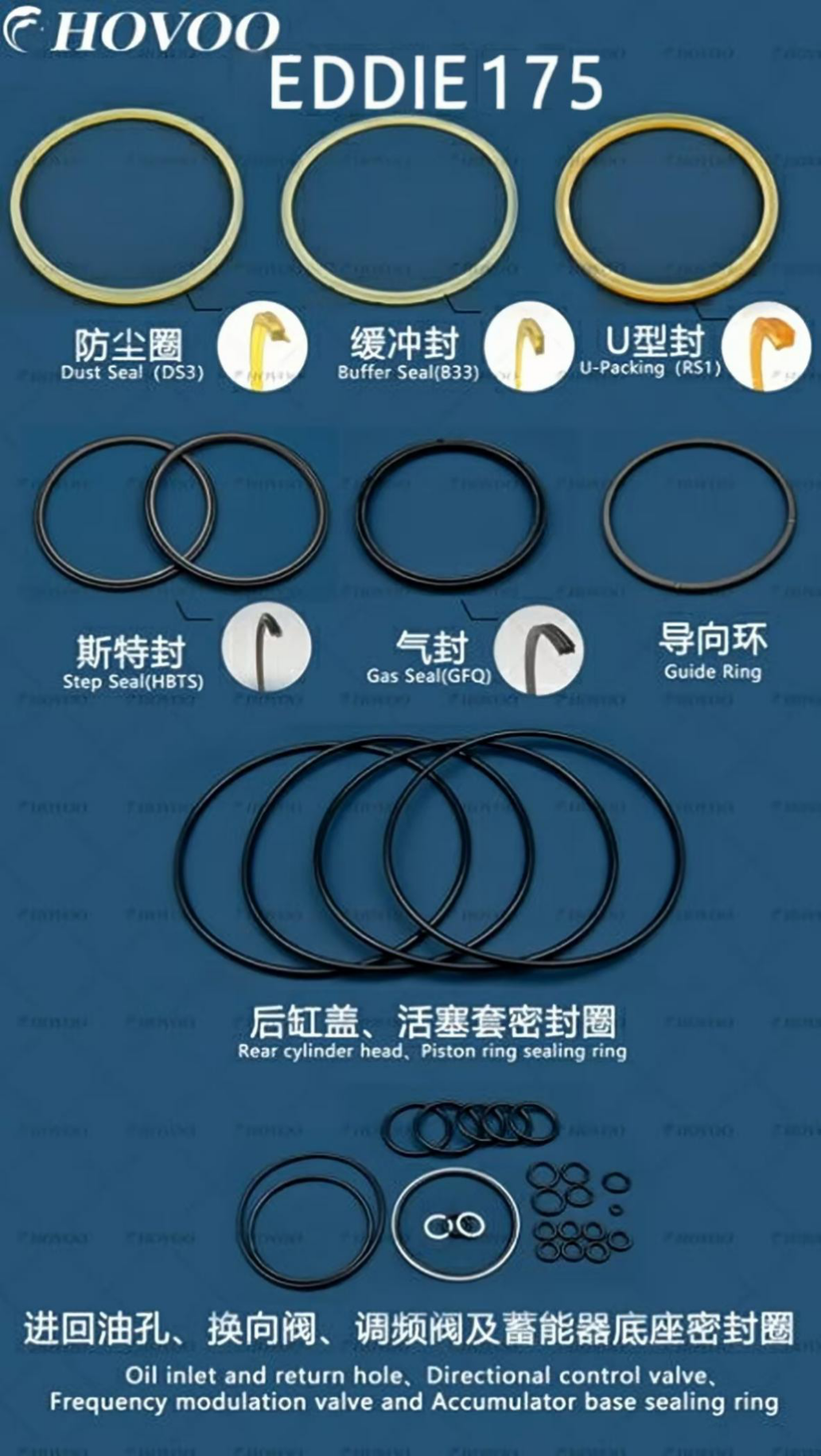

EDDIE175 Breaker Seal Kit Components

eddie175 hydraulic hammer seal kits-2

Additional Notes

  • Strictly control the hydraulic oil pressure (177-196 bar / 180-200 kg/cm²) and flow rate (200-260 l/min) in accordance with the specified parameters. Over pressure or excessive flow will cause overload of the main valve and accumulator, accelerate the aging of seals, and even lead to housing cracking; insufficient pressure will directly reduce the striking force and operation efficiency.
  • Use hydraulic pipelines compatible with 35-40 ton excavators only. Avoid insufficient pipeline inner diameter and joint leakage, which will cause flow loss and impair the breaker's performance.
  • This model features a built-in main valve with accumulator structure, and installation must be performed by professional technicians:
  • Purge all air from the hydraulic pipelines before installation to prevent cavitation damage to the main valve.
  • Charge the accumulator with nitrogen to the manufacturer-specified pressure only. Overpressure or underpressure is strictly prohibited, as it will drastically reduce the buffering effect and shorten the service life of the chisel and cylinder.
  • After installation, inspect the fit clearance between the chisel and bushing, and ensure the chisel's coaxiality to avoid eccentric striking, which may cause chisel fracture and cylinder wear.
