FEATURES
Item |
Specification |
Product weight (Seal kit / With installation tool / With mounting adapter plate) |
12.5 kg / 14.2 kg / 16.8 kg |
Compatible carrier weight (min/max) |
18 t / 26 t |
Compatible flow rate range (min/max) |
180 l/min / 260 l/min |
Maximum operating pressure |
180 bar |
Maximum permissible back pressure |
40 bar |
Rated power of sealing system |
65 kW |
Compatible impact frequency range (min/max) |
350 Bpm / 550 Bpm |
Operating noise level |
92 dbA |
Seal material |
High-performance Polyurethane + Fluororubber composite |
Operating temperature range |
-25℃ ~ +140℃ |
Pressure resistance rating |
250 bar (peak) |

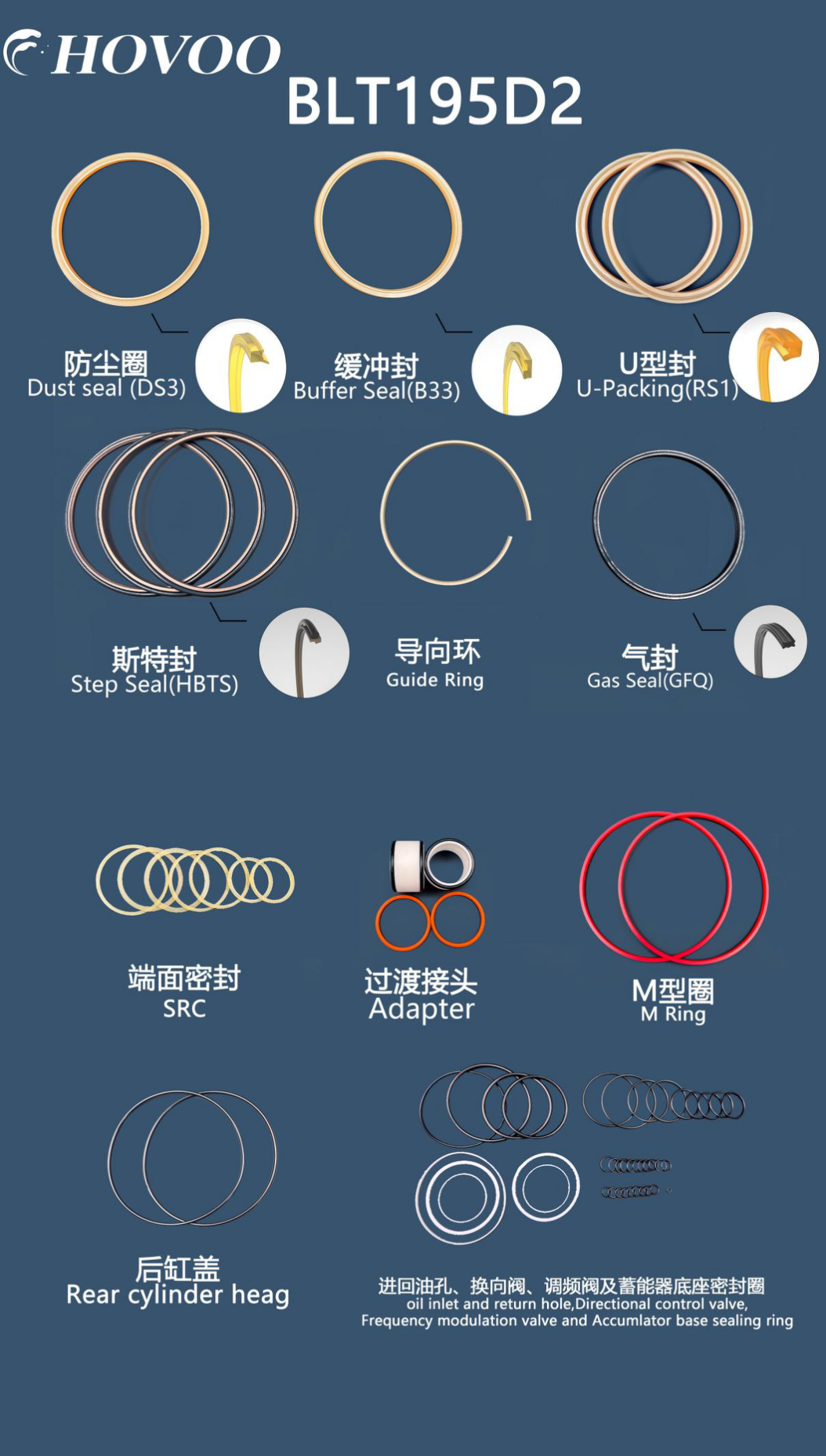

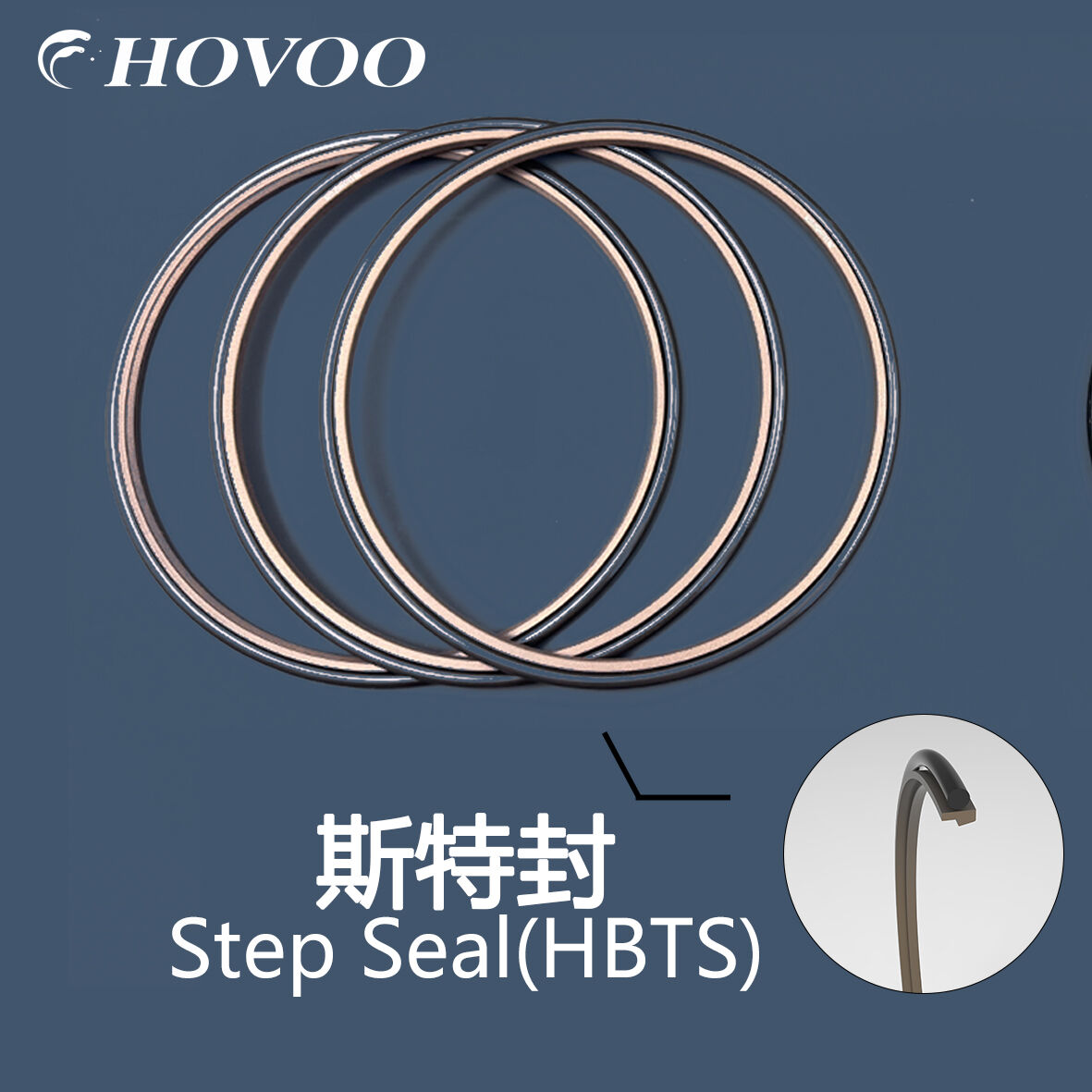

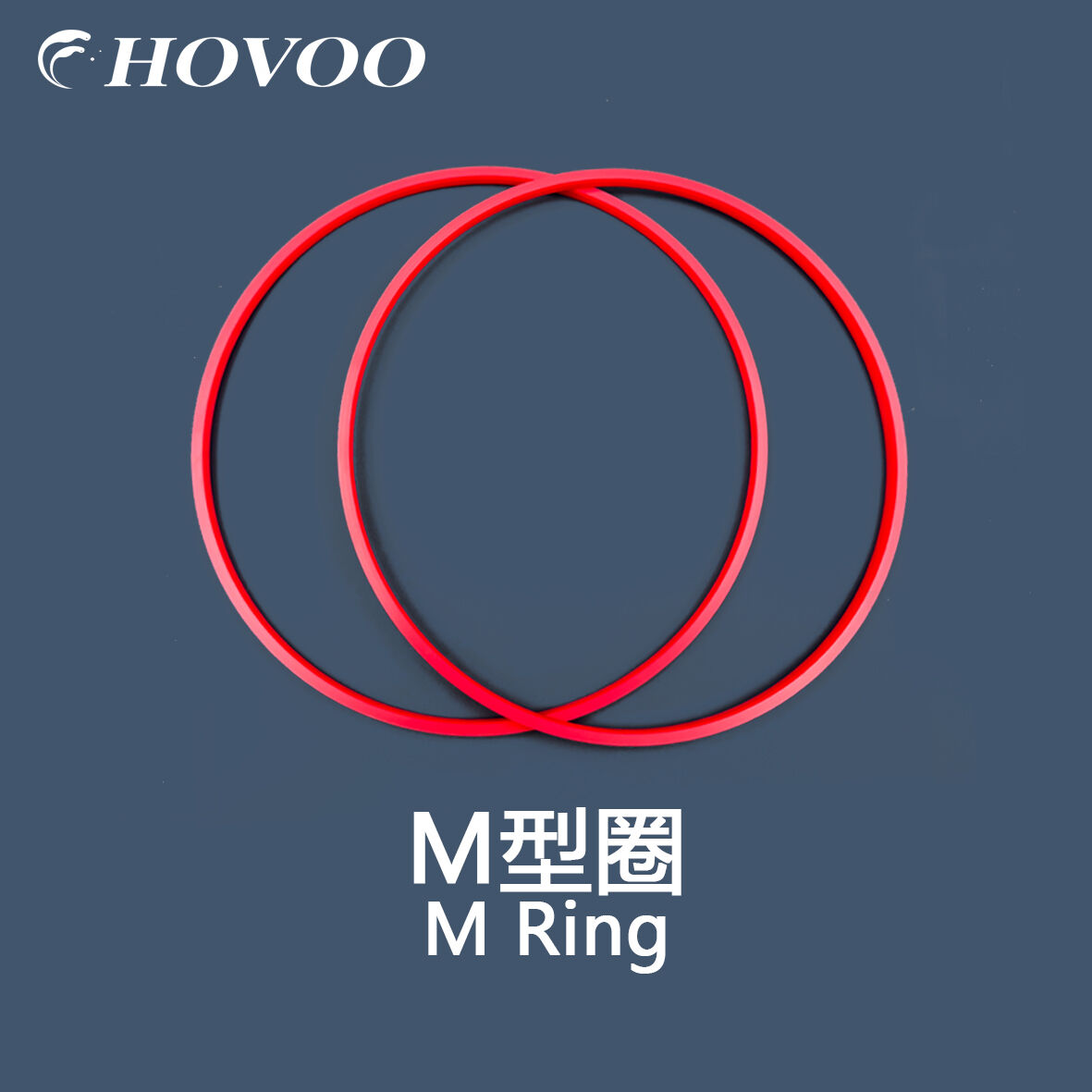

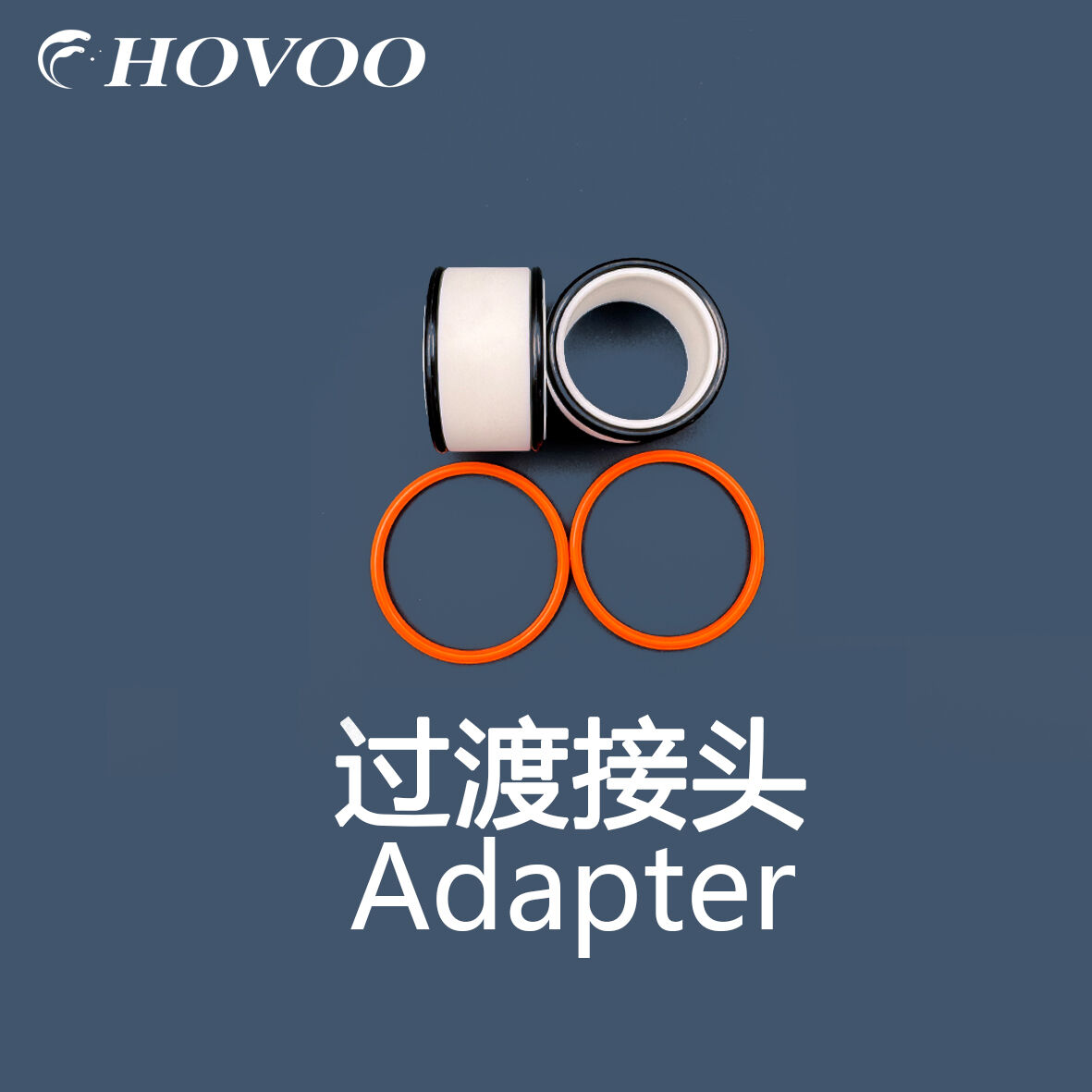

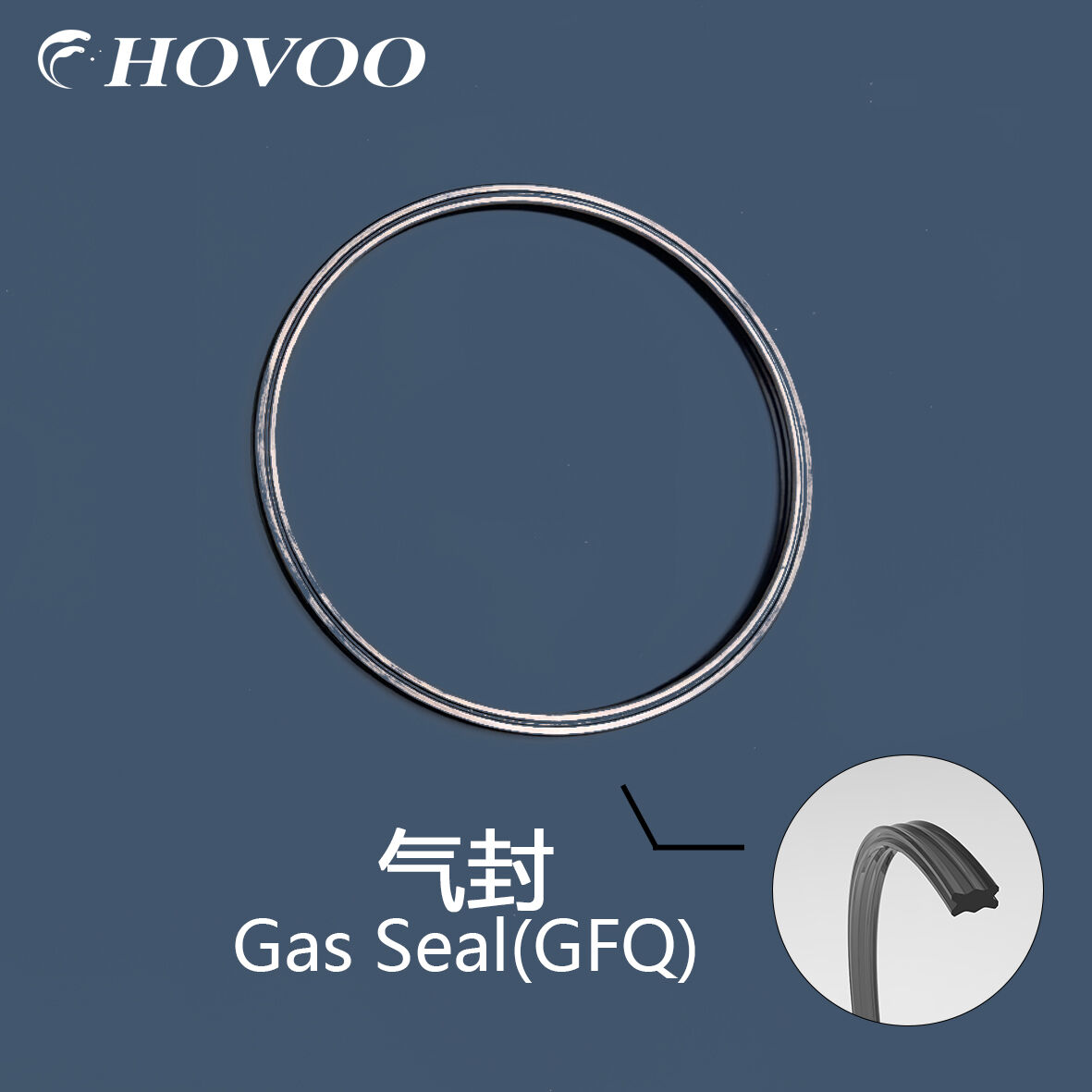

BLT 195D2 Breaker Seal Kit Components
Additional Notes
Welcome to HOVOO, a Chinese seal factory. Production of PU, Rubber and PTFE seals. The seals include O-ring, piston seal, rod seal, Gray ring and gas seal.
