FURUKAWA

Home /  Products /  Hydraulic Hammer/Breaker /  FURUKAWA

All

HB18G Hydraulic Breaker Seal Kits

HB18G Hydraulic Breaker Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits
HB18G Hydraulic Breaker Seal Kits

FEATURES

Item

Specification

Chisel Diameter

75mm

Chisel Length

650mm

Chisel Weight

20kg

Body Weight (Including Chisel)

≤180kg

Rated Operating Pressure

8-12 MPa

Operating Pressure

14-18 MPa (2030-2610 PSI)

Oil Flow

30-50 L/min

Impact Frequency

800-1200 bpm

 Hose I.D. (OUT/IN)

12mm

Carrier Range

2.0-4.0 ton

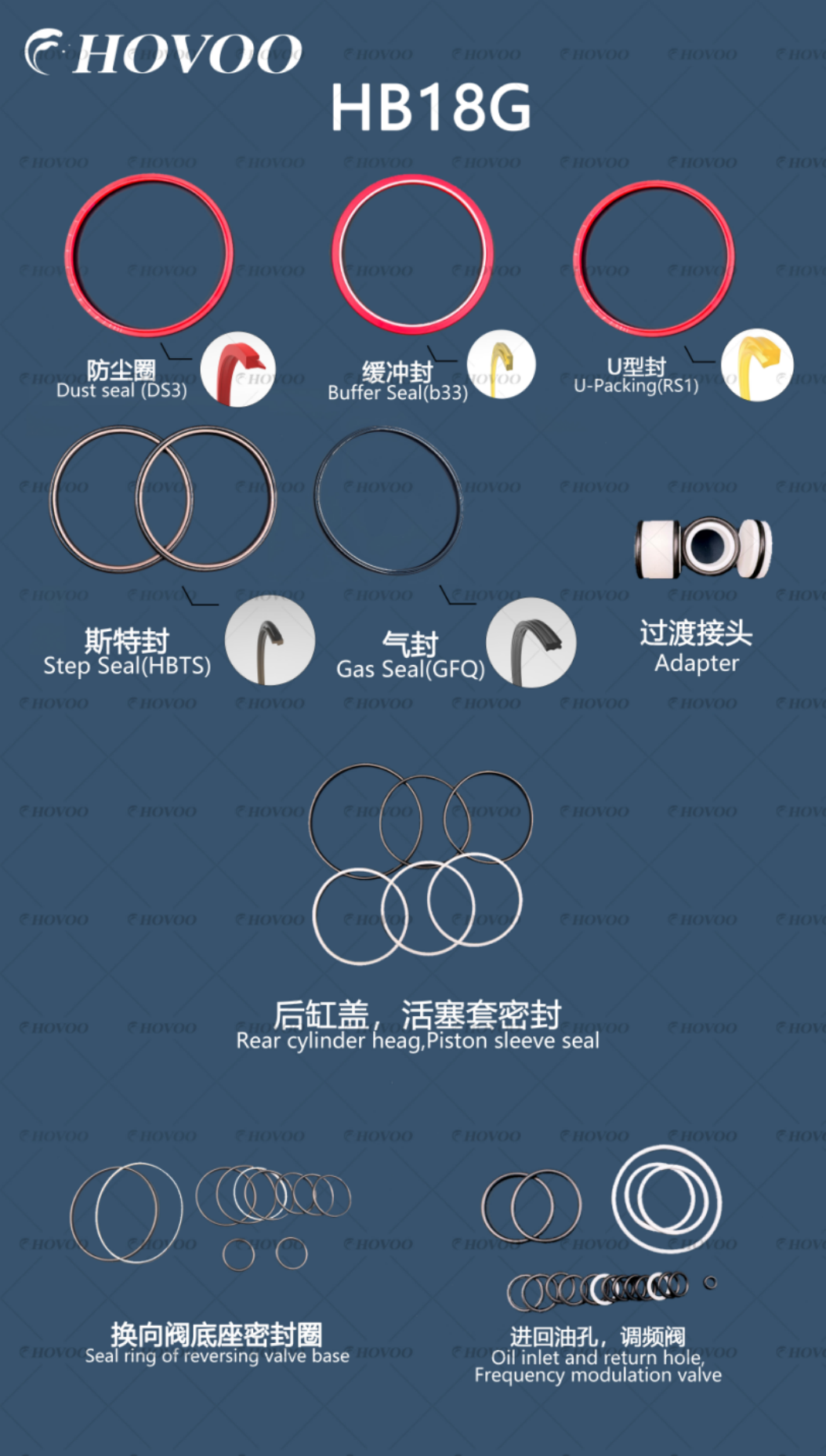

HB18G Breaker Seal Kit Components

hb18g hydraulic breaker seal kits-2

Additional Notes

  • This HB18G is a small-tonnage hydraulic breaker seal kit, not a large-tonnage rod pin/breaker accessory. It is a completely different product from the previously mentioned large-tonnage HB18G parts, so please confirm the product purpose carefully before selection.
  • This model is only compatible with 2.0-4.0 ton mini excavators. Using it on machines over 4.0 tons will result in insufficient striking force, accelerated component wear, or even equipment failure.
  • Rated operating pressure: 8-12 MPa; actual working pressure must not exceed 18 MPa. Overpressure operation will accelerate seal aging and cause oil leakage.Hydraulic flow must be controlled within 30-50 L/min. Too low flow reduces impact frequency, while too high flow increases wear on the cylinder and piston.
  • Inspect seal condition every 500-800 working hours. Replace the entire seal kit immediately if oil seepage, bulging, or wear is found to prevent single-point failures from spreading.
  • Ensure uniform assembly clearance during installation. Avoid hard hammering on the chisel or seal components to prevent deformation and reduced performance.
