FURUKAWA

Home /  Products /  Hydraulic Hammer/Breaker /  FURUKAWA

All

HB5G Hydraulic Breaker Seal Kits

HB5G Hydraulic Breaker Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits
HB5G Hydraulic Breaker Seal Kits

FEATURES

Item

Specification

Chisel Diameter

70mm

Chisel Length

650mm

Chisel Weight

20kg

Body Weight (Including Chisel)

≤200kg

Rated Operating Pressure

10-14 MPa (100-140 bar)

Operating temperature

 -35℃~220℃

Oil Flow

25-45 L/min

Impact Frequency

900-1200 bpm

 Hose I.D. (OUT/IN)

      12mm

Carrier Range

 3-6 ton (mini excavator)

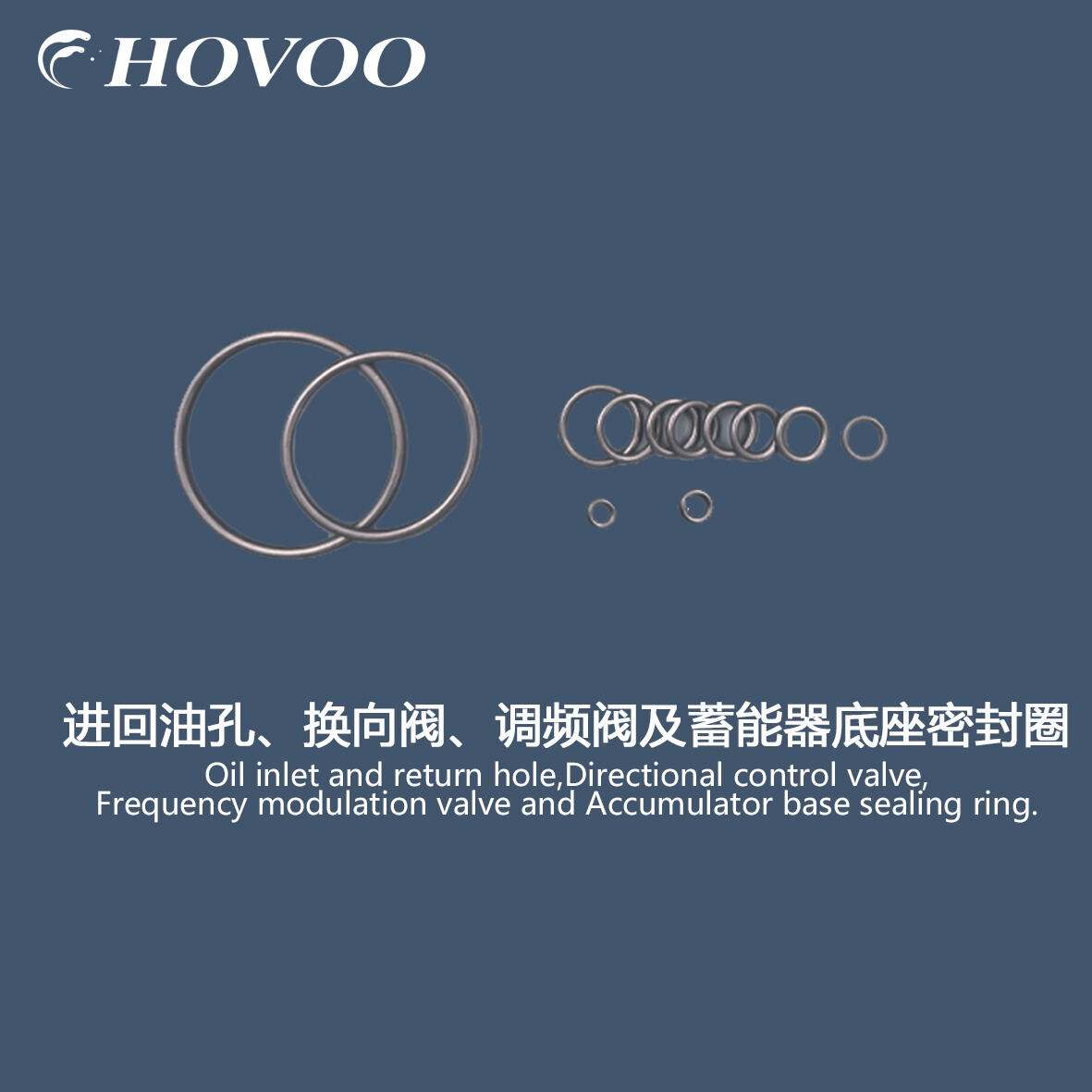

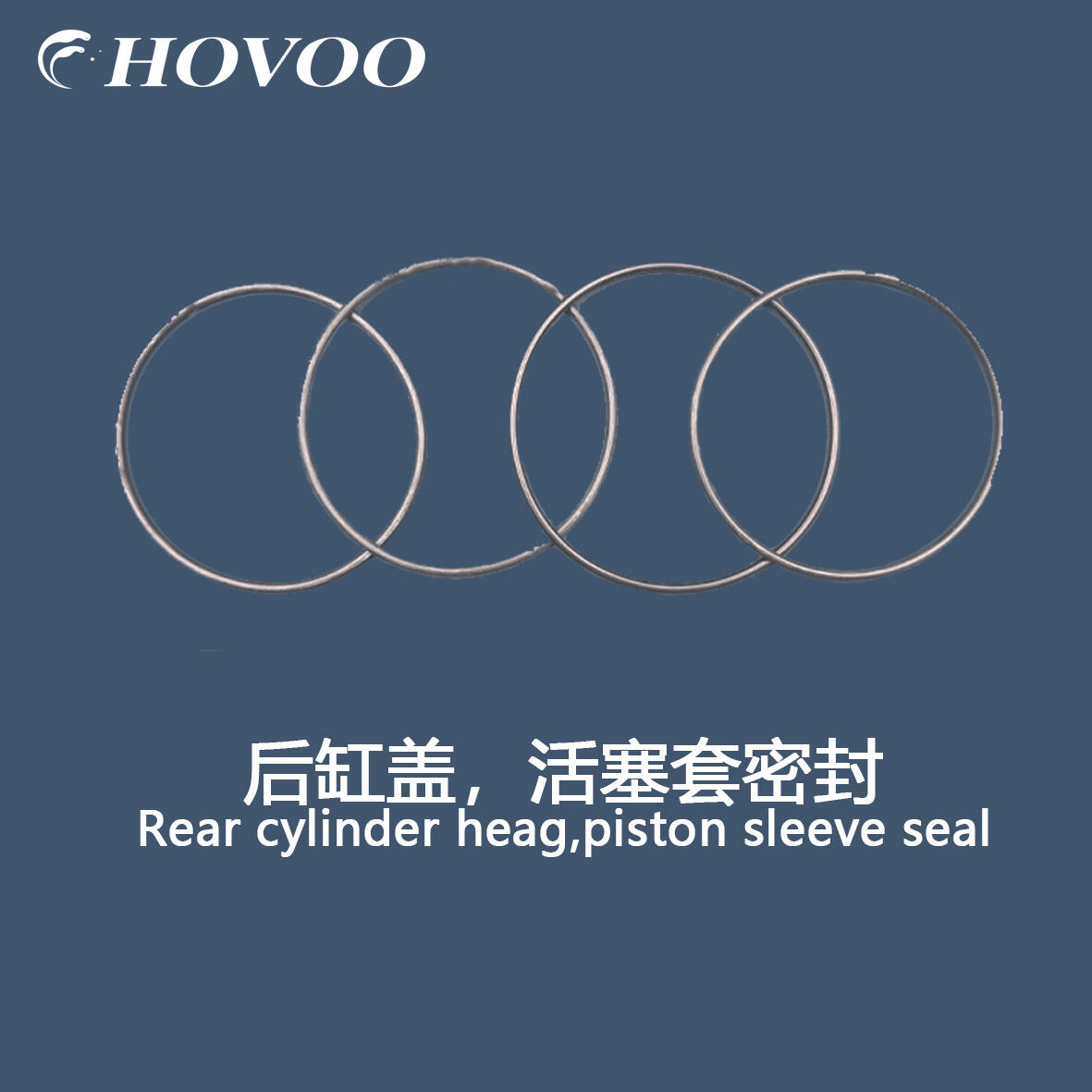

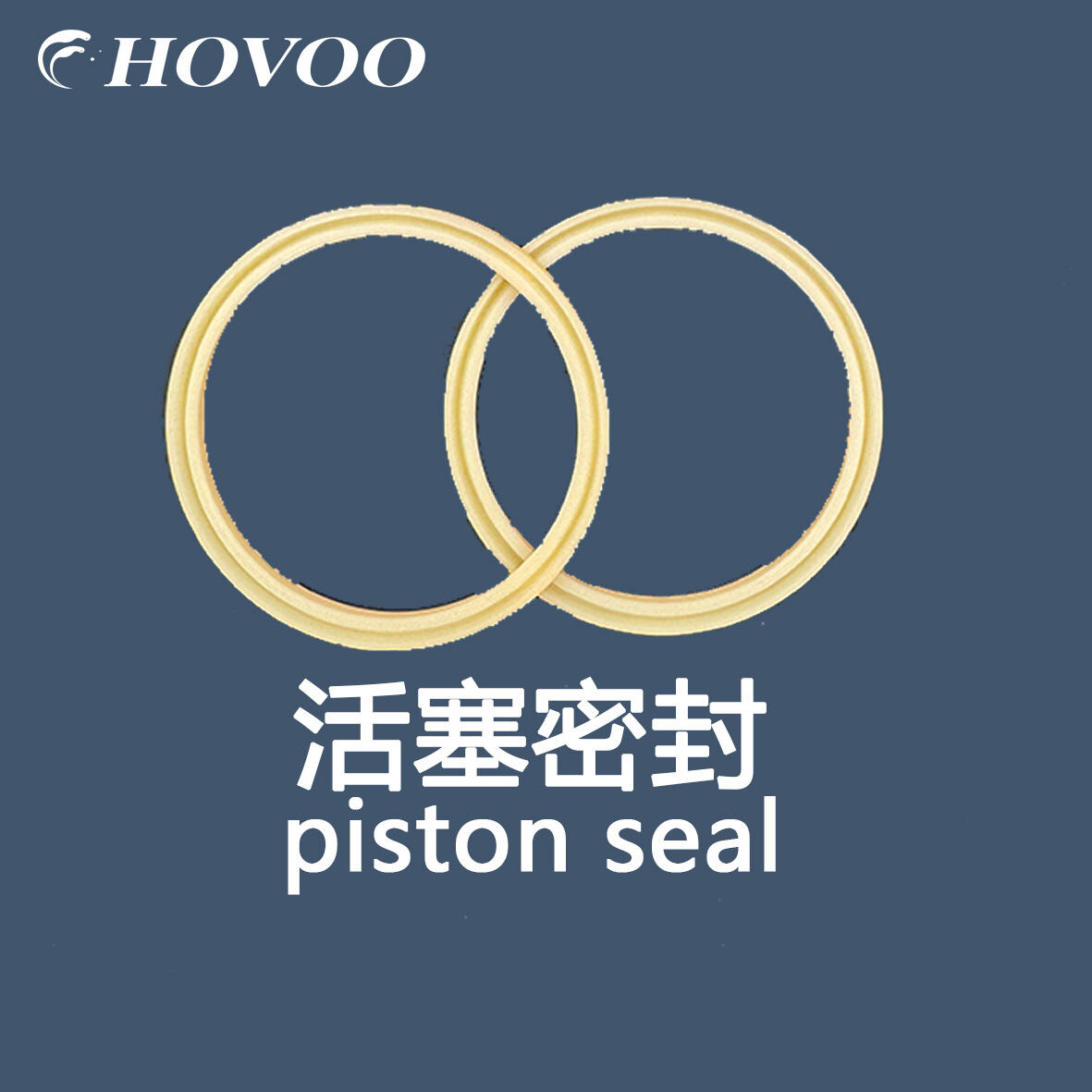

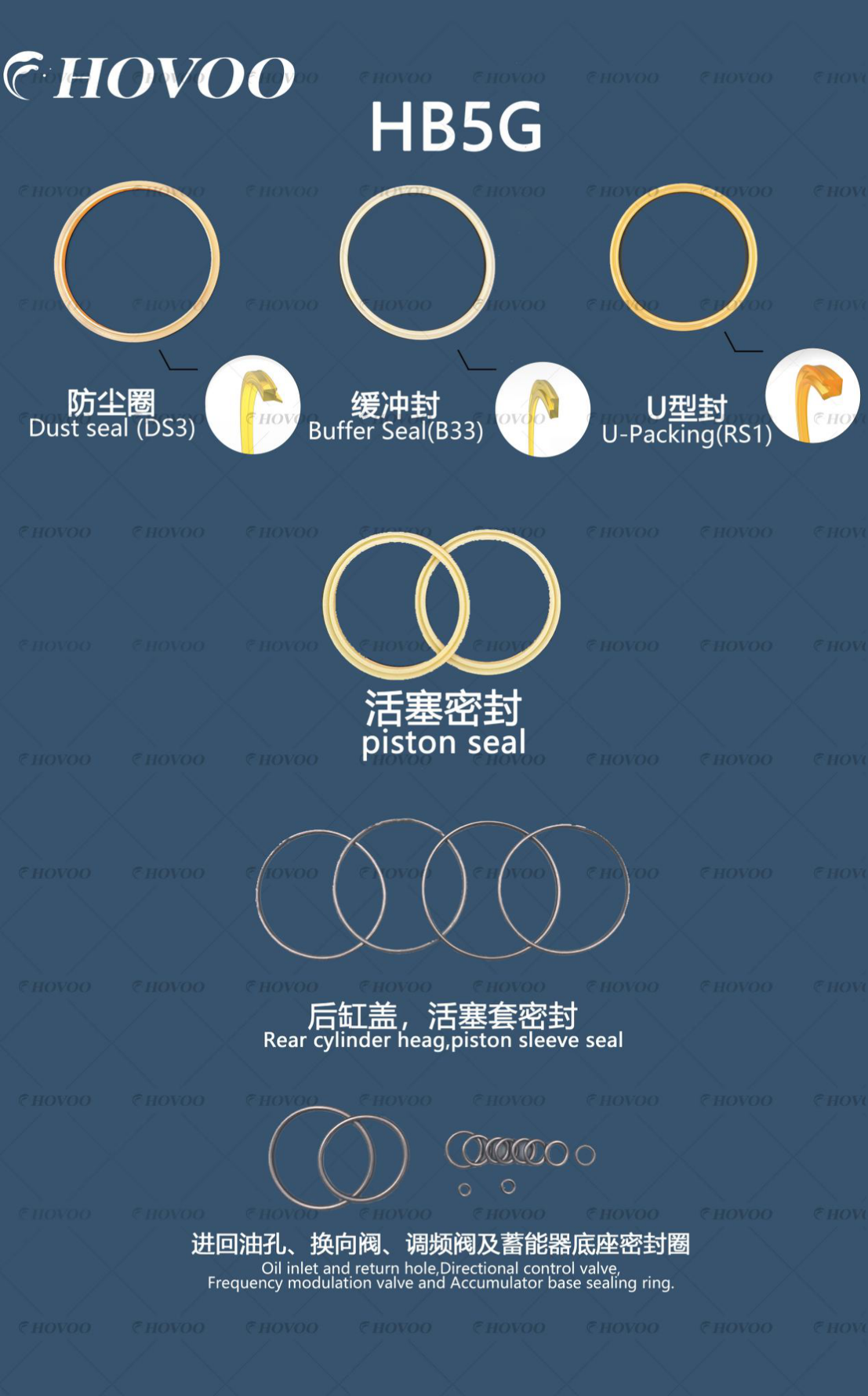

HB5G Breaker Seal Kit Components

hb5g hydraulic breaker seal kits-2

Additional Notes

  • The rated operating pressure is 10-14MPa. Overpressure operation is strictly prohibited, which will directly cause seal cracking, oil leakage and damage to the hydraulic system.
  •  The seal kit is made of PU+PTFE+FKM+NBR composite material, suitable for a wide temperature operating environment of -35℃~220℃. Preheat the hydraulic oil before low-temperature operation to avoid hardening and cracking of the seals.
  • It is compatible with 3-6 ton mini excavators of brands such as Kubota, Caterpillar, Hitachi, Komatsu and John Deere. Check the connection interface size of the breaker before installation to avoid adaptation deviation.

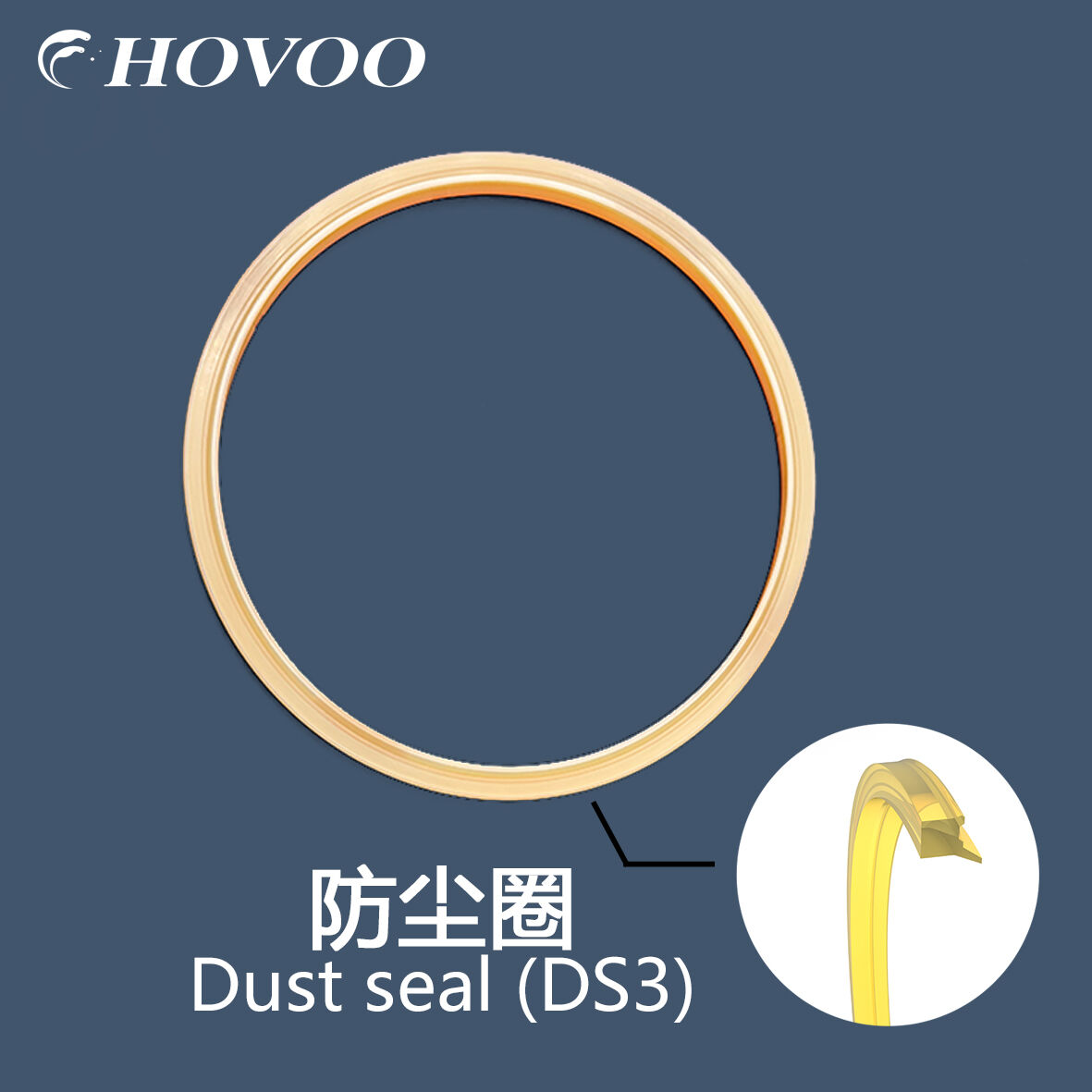

  •  Mini hydraulic breakers are mostly used in dusty/humid scenarios. It is recommended to check the seal status every 300-500 working hours. Replace the dust seal immediately if wear or oil seepage is found to prevent impurities from entering the cylinder block.
  •  This model of breaker is equipped with a blank striking protection structure as standard. Ensure the chisel is fully in contact with the working surface during operation to avoid hard collision between the seals and the piston caused by blank striking, which will result in irreversible damage.
