SB20 Hydraulic Hammer Seal Kits

SB20 Hydraulic Hammer Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits
SB20 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

Operating Weight

90 kg

Body Length

1071mm

Body Width

191 mm

       Driving Oil Pressure

   90~120 kg/cm²

Driving Flow Rate

20~40 L/min

Blow Frequency

700~1200 bpm

Hose Diameter

 3/8, 1/2 inch

 Piston Rod Diameter

45 mm

Matching Excavator

  1.2~3ton

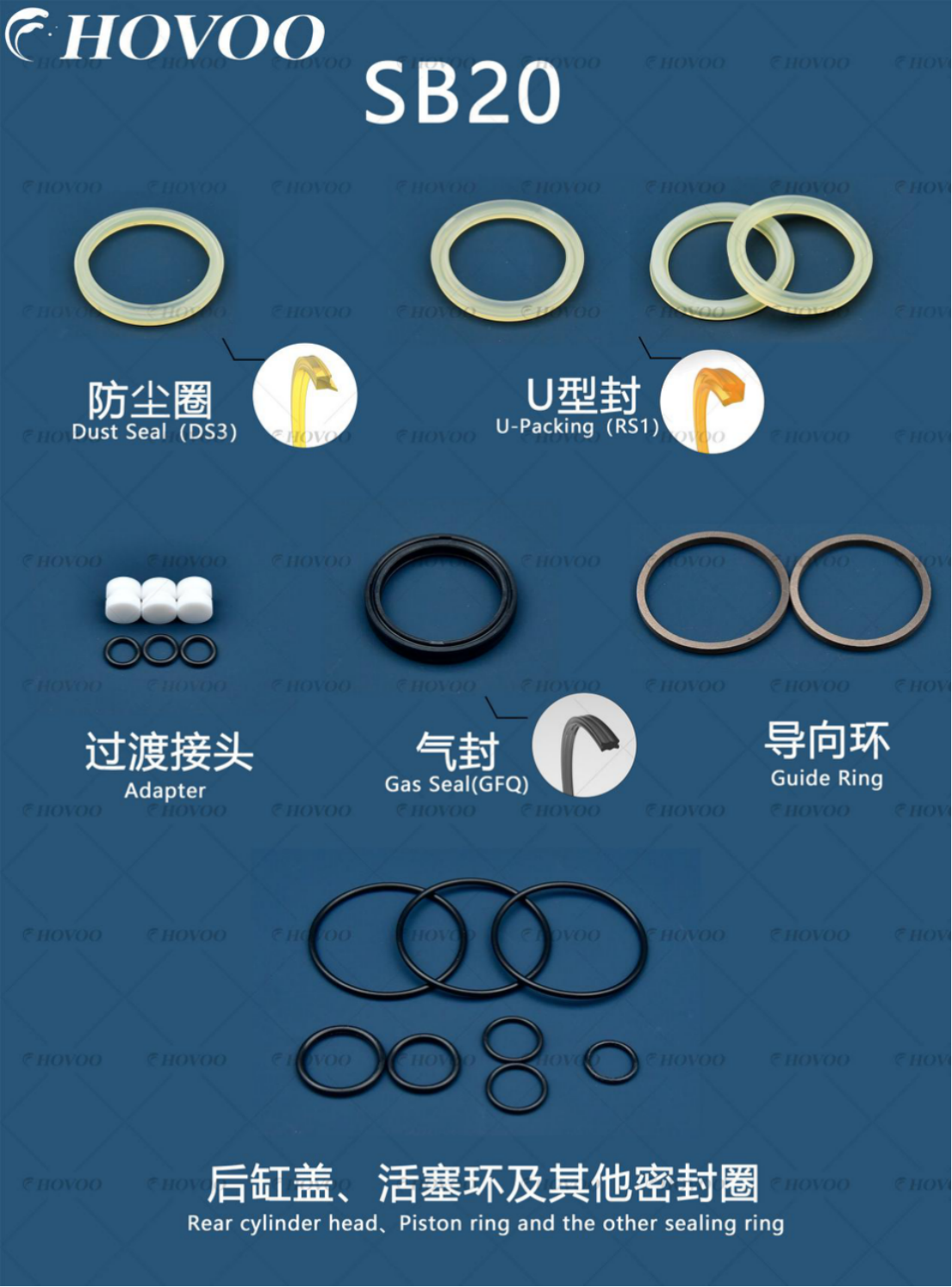

SB20 Breaker Seal Kit Components

sb20 hydraulic hammer seal kits-2

Additional Notes

  • .These parameters are technical indicators under standard working conditions. Actual operation shall be adjusted according to the construction environment and the matching degree of the excavator's hydraulic system. Over-pressure and over-flow operation are strictly prohibited to avoid hydraulic pipeline burst.
  • Check the specifications of piston rods, hoses and other accessories before operation. Only hoses with diameters of 3/8 and 1/2 inch and piston rods with a diameter of 45 mm can be used; mixing accessories of other specifications is strictly prohibited.
  • Lubricate the equipment before operation and after 2-3 hours of continuous operation. When greasing, place the breaker vertically and press the piston rod tightly to prevent grease from entering the hydraulic system.
  •  Keep the equipment perpendicular to the material at a 90° angle during crushing operation, and avoid continuous striking at a single point for more than 30 seconds to prevent excessive wear of the piston rod and overheating of hydraulic oil.
