SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits
SB30 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

Operating Weight

120 kg

Body Length

1147mm

Body Width

203 mm

       Driving Oil Pressure

   90~120 kg/cm²

Driving Flow Rate

25~50 L/min

Blow Frequency

600~1100 bpm

Hose Diameter

  1/2 inch

 Piston Rod Diameter

60 mm

Matching Excavator

  3~3.5ton

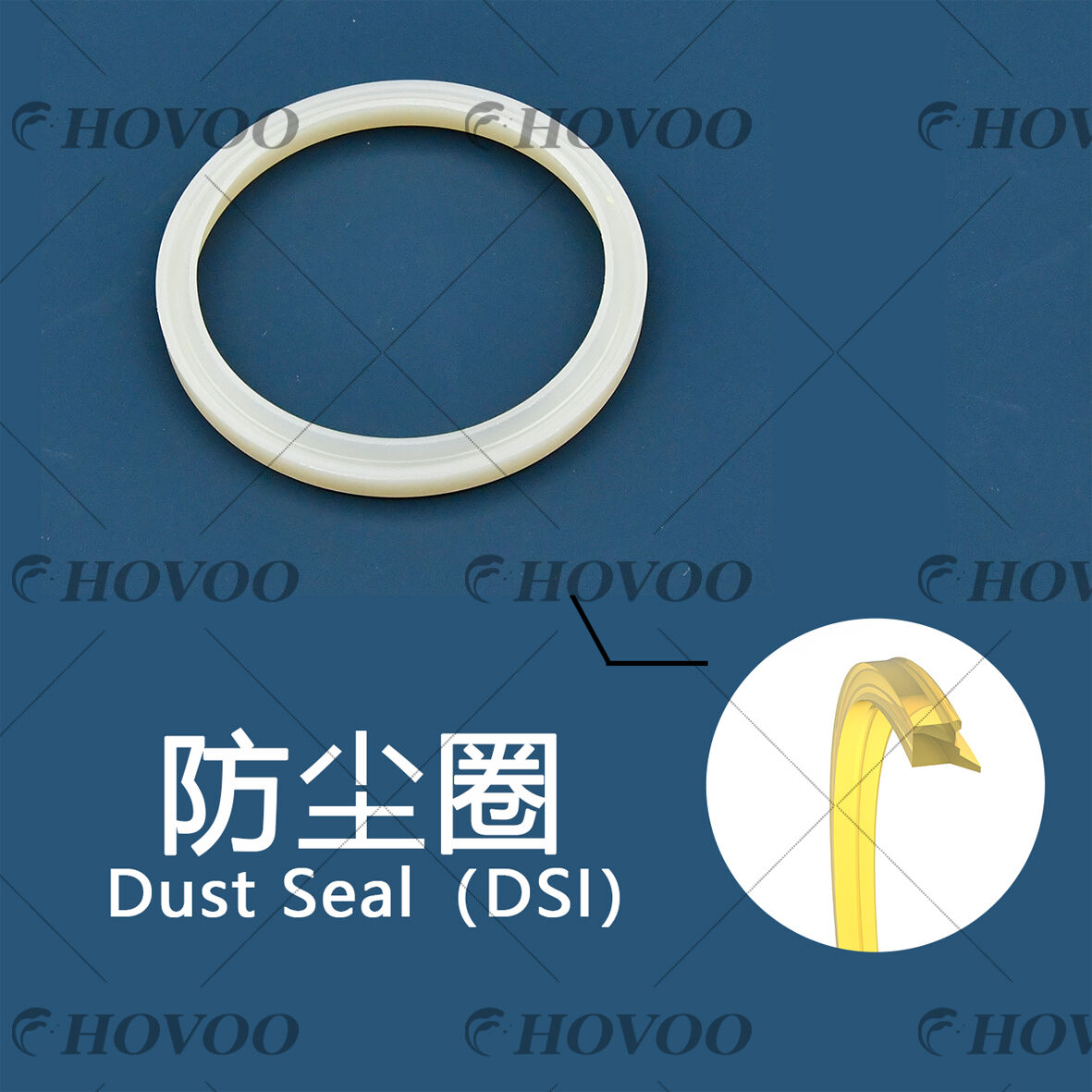

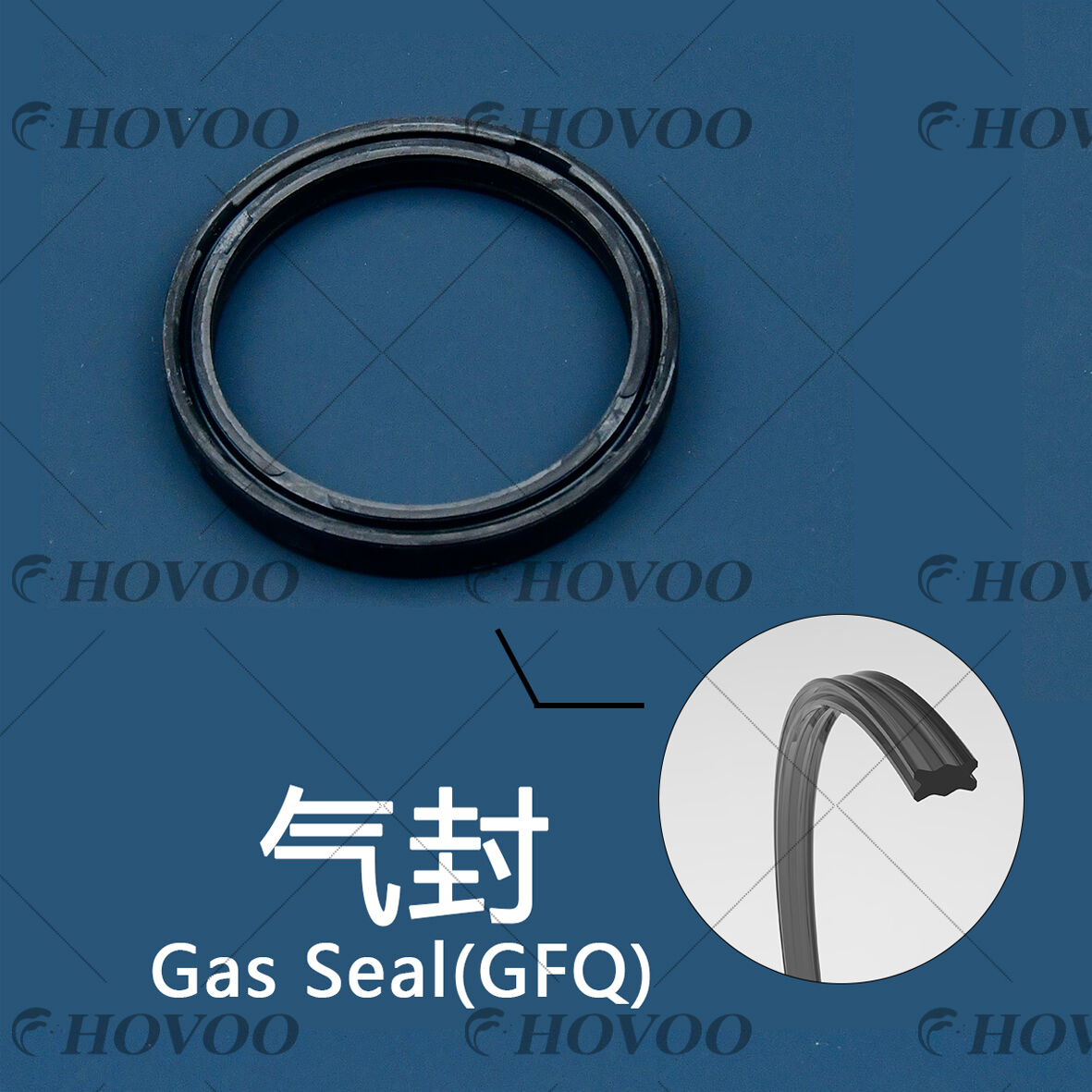

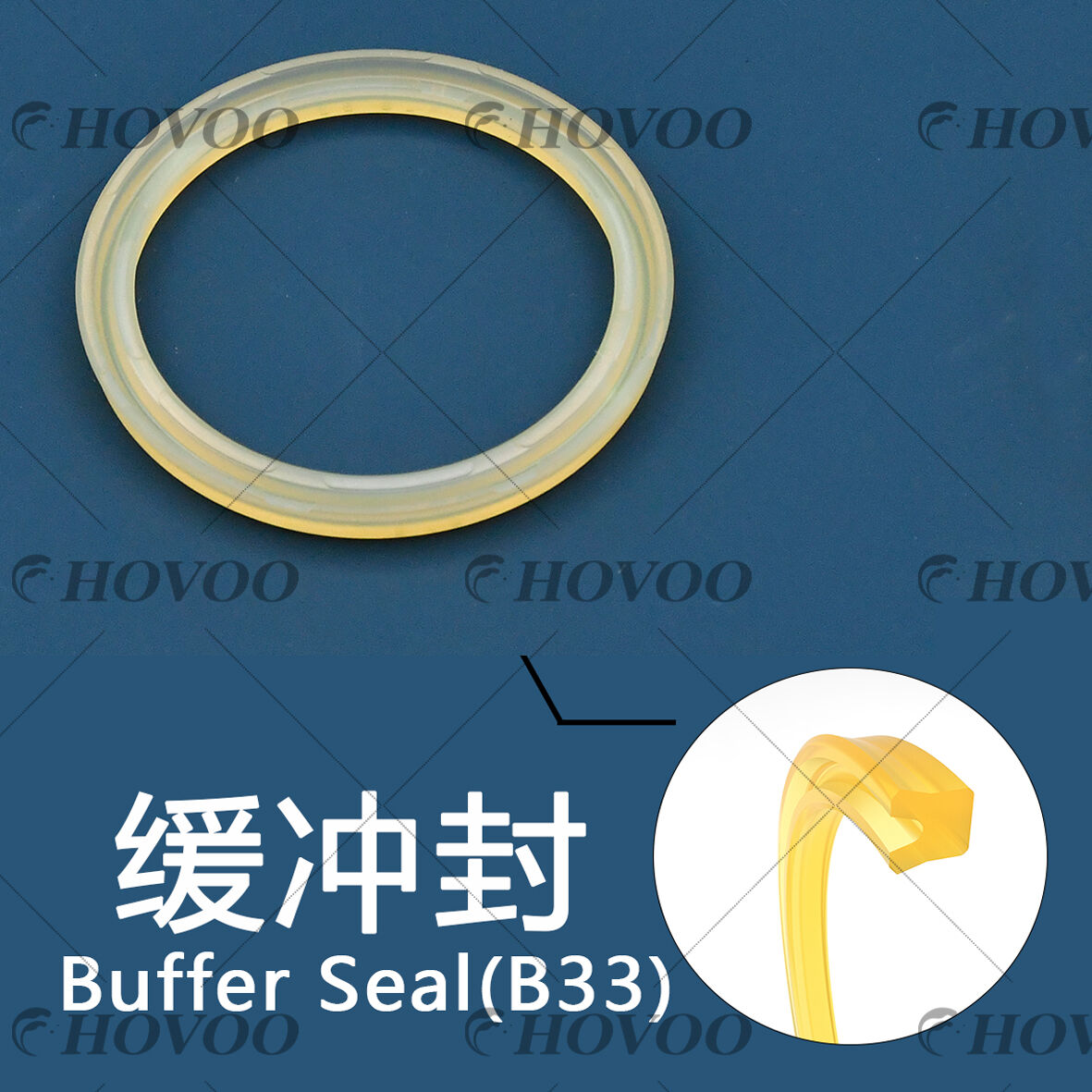

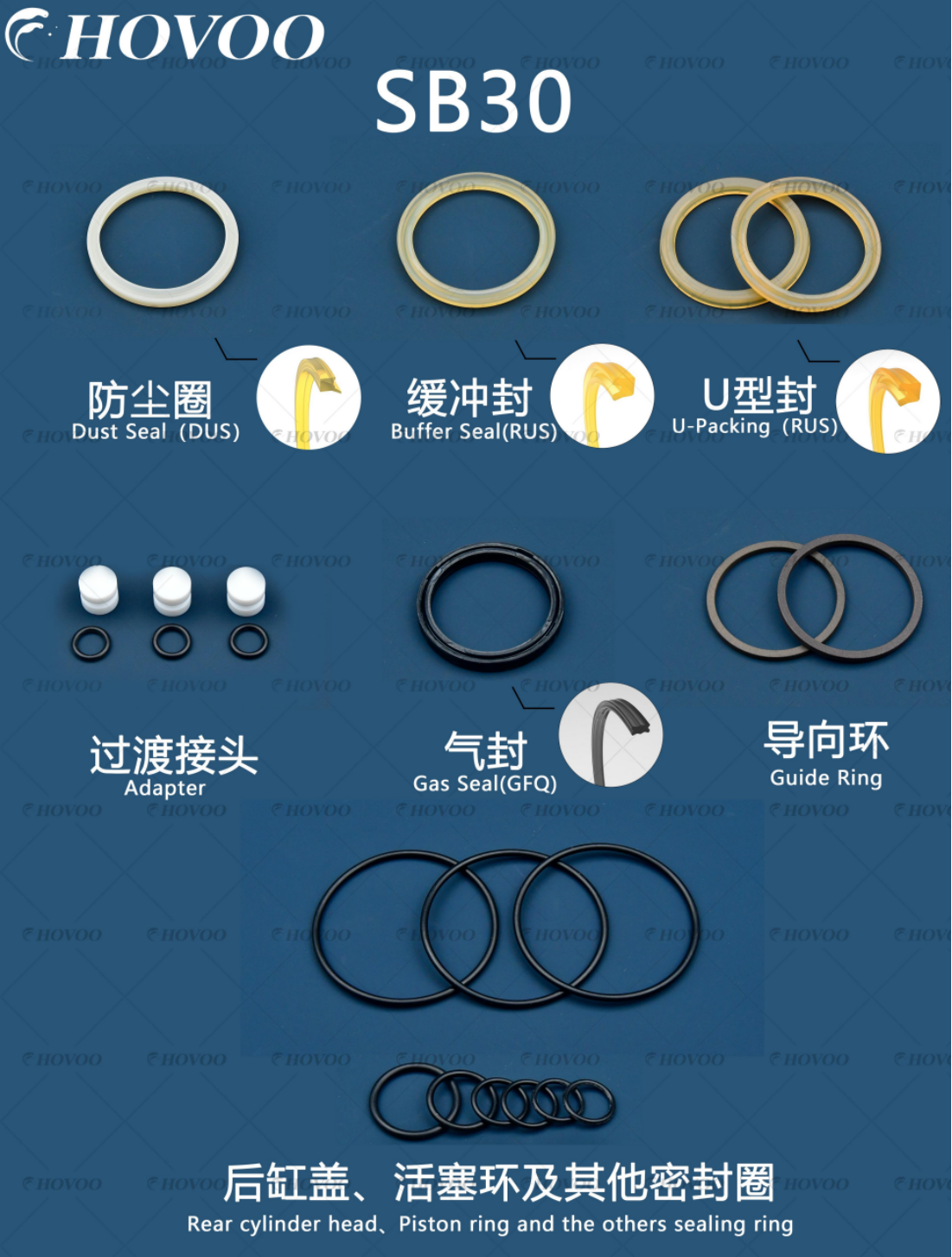

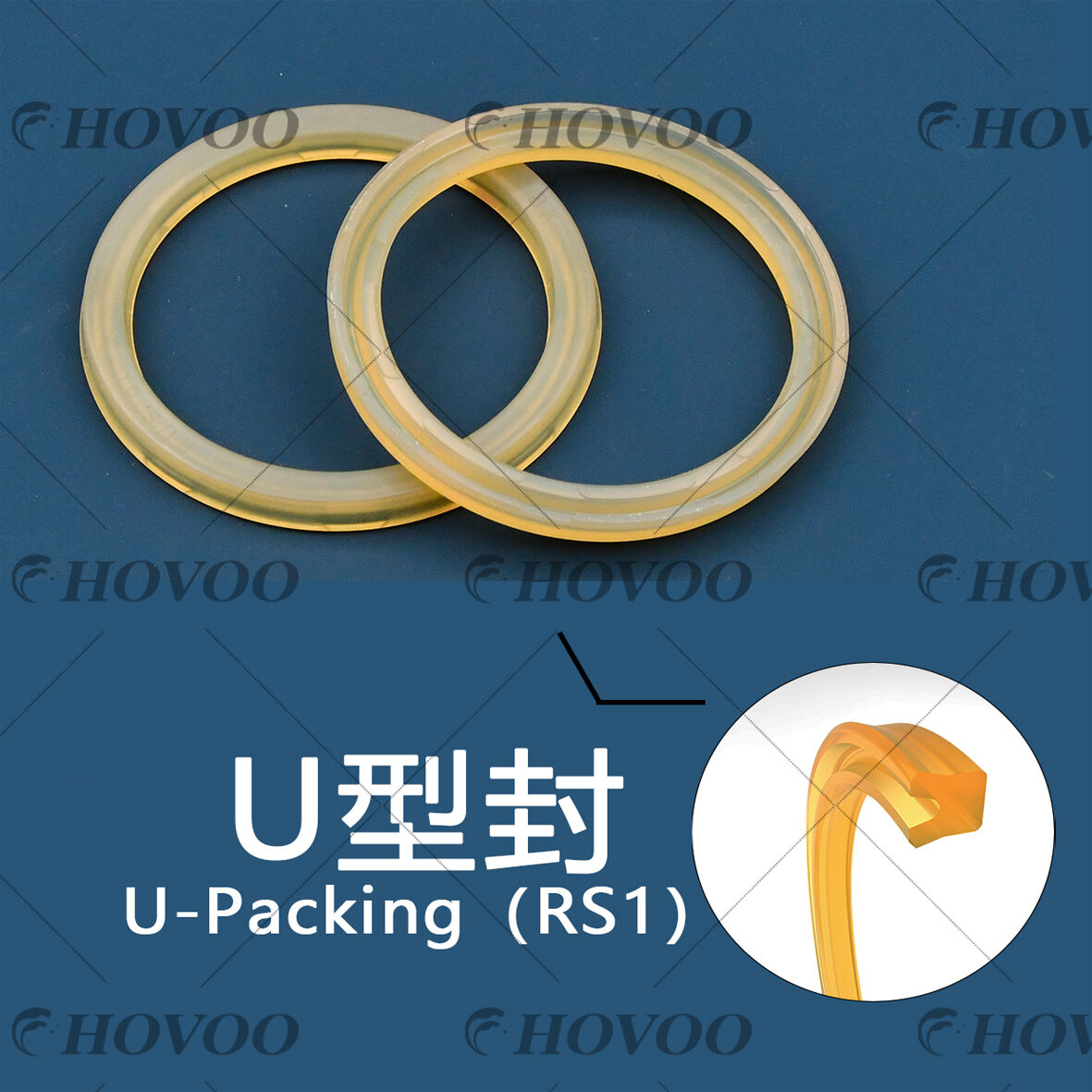

SB30 Breaker Seal Kit Components

sb30 hydraulic hammer seal kits-2

Additional Notes

  • These parameters are technical indicators under the equipment's standard working conditions. Actual operation shall be adjusted according to the construction environment and the matching degree of the excavator's hydraulic system. Over-pressure and over-flow operation are strictly prohibited to prevent hydraulic pipeline burst or equipment damage.
  • Fully inspect the tightness of the equipment's connecting bolts and the sealing performance of hydraulic pipelines before operation. Stop the machine immediately for maintenance if looseness or leakage is found, and start operation only after troubleshooting.
  • Keep the equipment perpendicular to the working surface at a 90° angle during crushing operation. Avoid continuous striking at a single point for more than 30 seconds, and stop striking first when moving the operation point to prevent excessive chisel wear and hydraulic oil overheating.
  • Dry striking of the breaker, using the chisel as a crowbar to pry heavy objects, and hoisting operations with the breaker are strictly prohibited to prevent deformation and damage to the breaker body, chisel and connecting bracket.
