FEATURES
Item |
Specification |
Product weight (Seal kit / With installation tool / With mounting adapter plate) |
4.0 kg / 4.8 kg / 6.5 kg |
Compatible carrier weight (min/max) |
6.0 t / 12.0 t |
Compatible flow rate range (min/max) |
70 l/min / 110 l/min |
Maximum operating pressure |
140 bar |
Maximum permissible back pressure |
32 bar |
Rated power of sealing system |
22 kW |
Compatible impact frequency range (min/max) |
450 Bpm / 850 Bpm |
Operating noise level |
91 dbA |
Seal material |
Polyurethane + Nitrile rubber composite |
Operating temperature range |
-30℃ ~ +120℃ |
Pressure resistance rating |
190 bar (peak) |

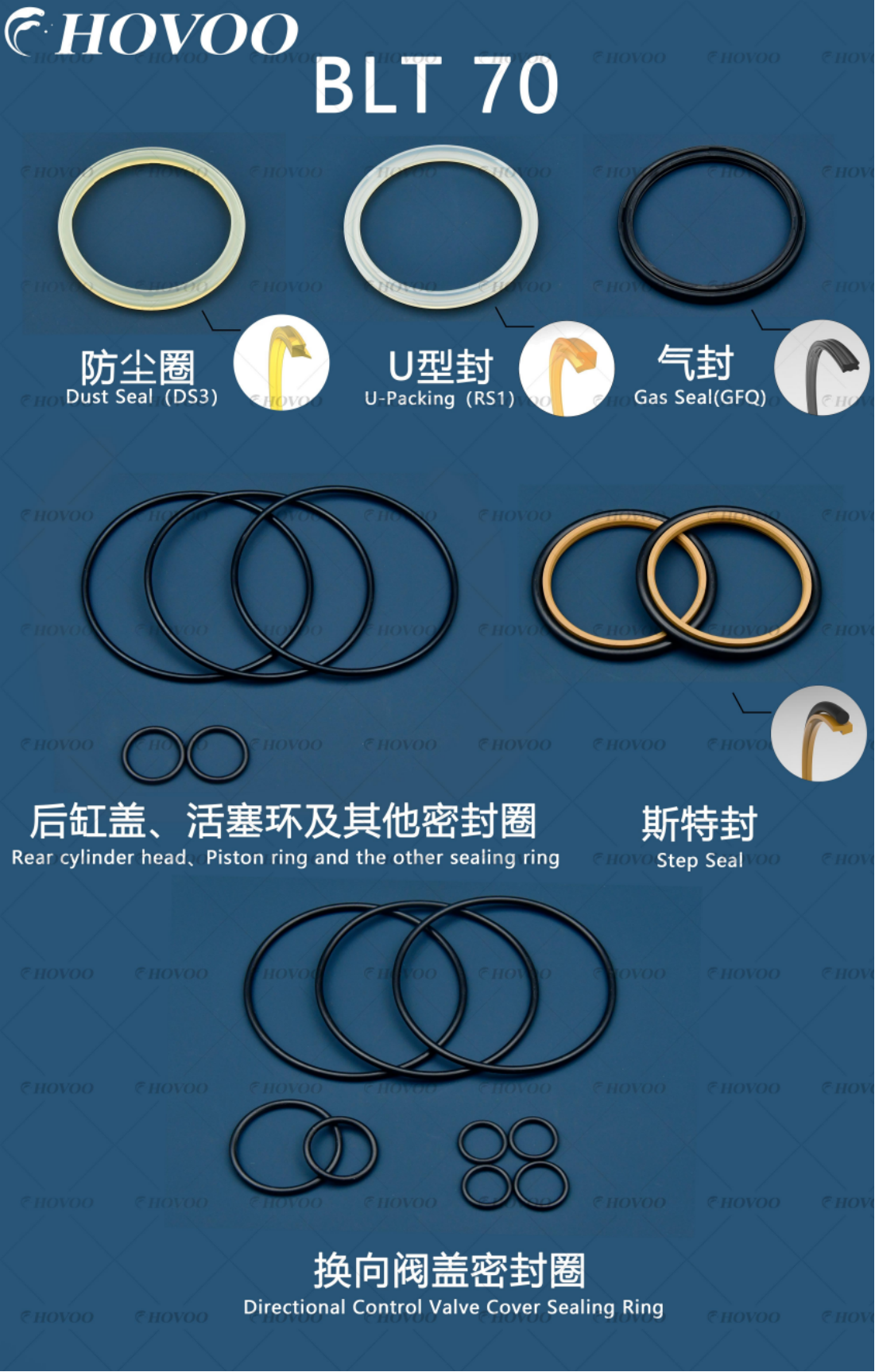

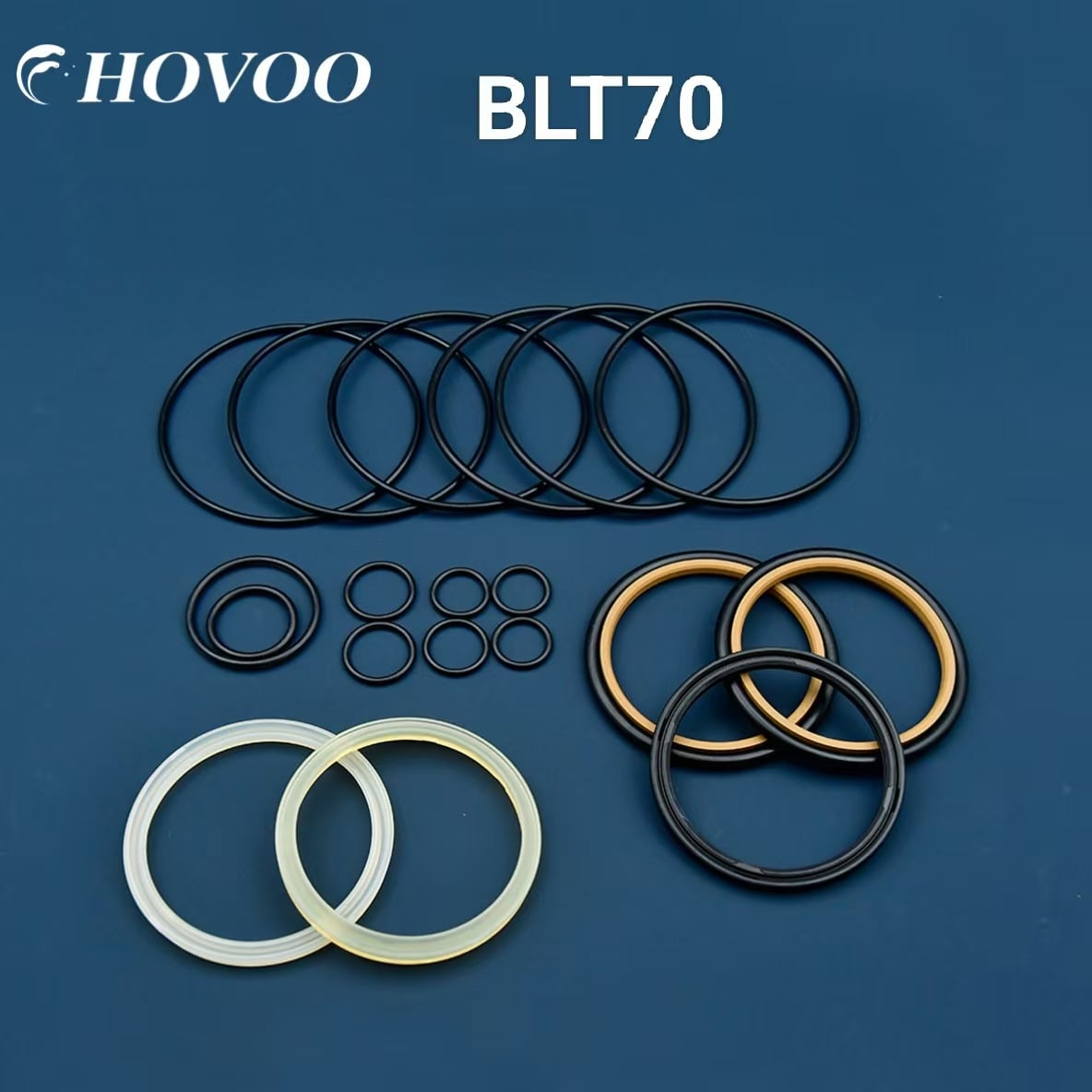

BLT 70 Breaker Seal Kit Components
Additional Notes
Welcome to HOVOO, a Chinese seal factory. Production of PU, Rubber and PTFE seals. The seals include O-ring, piston seal, rod seal, Gray ring and gas seal.
