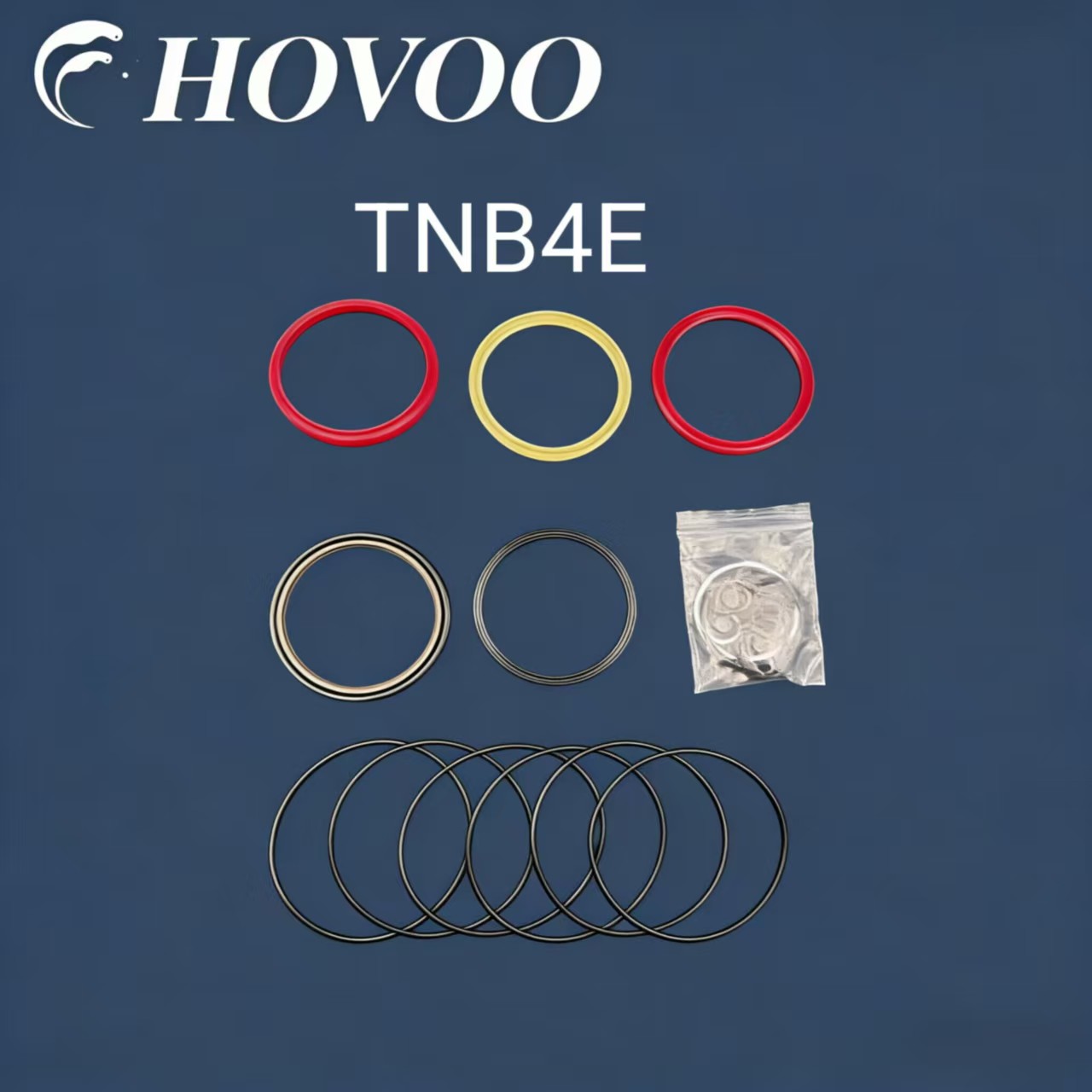

TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits
TNB4E Hydraulic Breaker Seal Kits

FEATURES

Item

Specification

Impact Rate

650-1100 bpm

 Tool Diameter

70mm（2.8inch）

Working Weight (2pc top mount)

260kg（573lbs）

Working Weight (Box case)

320kg（705lbs）

Oil Flow

35-60 L/min（9-16 G/min）

Operating Pressure

1200-2100 PSI（8.3-14.5 MPa）

Hose I.D.

1/2 inch

Gas Pressure

0.8 MPa（116 PSI）

Carrier Range

3.0-5.0 ton

Product Type

Box Type

TNB4E Breaker Seal Kit Components

tnb4e hydraulic breaker seal kits -2

Additional Notes

  • Ensure that the actual oil flow and operating pressure of the equipment are consistent with the above reference parameters during use. Overpressure or insufficient flow operation is strictly prohibited to avoid damage to core components such as the internal hammer body and oil seal of the hydraulic breaker.
  • This model is designed as Box Type for reference. Match the corresponding box-type installation interface during installation. Mixing with the installation base of Open Type models (suffixed with M) is strictly prohibited to prevent construction safety accidents caused by loose installation.
  • Keep the nitrogen pressure stable at 0.8MPa. Check the air pressure before each construction and replenish it in time when the air pressure is insufficient to avoid affecting the striking force and the service life of the equipment.
  • If you need to obtain accurate original factory parameters, installation drawings and hydraulic configuration schemes, it is recommended to contact TOKU official after-sales service directly and provide the specific model and tonnage of the construction carrier, and the original factory will issue an exclusive adaptation scheme.
