EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits
EDDIE135F Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

 Hydraulic Oil Pressure

 160-180kg/cm²

2272-2556psi

157-177bar

Hydraulic Oil Flow Rate

 145-180l/min

38-48gal/min

Impact Frequency

 360-460bpm

Chisel Diameter

135mm

5.31inch

Applicable Carrier Weight

20-26ton

Main Valve Type

Built-in

Accumulator

 None

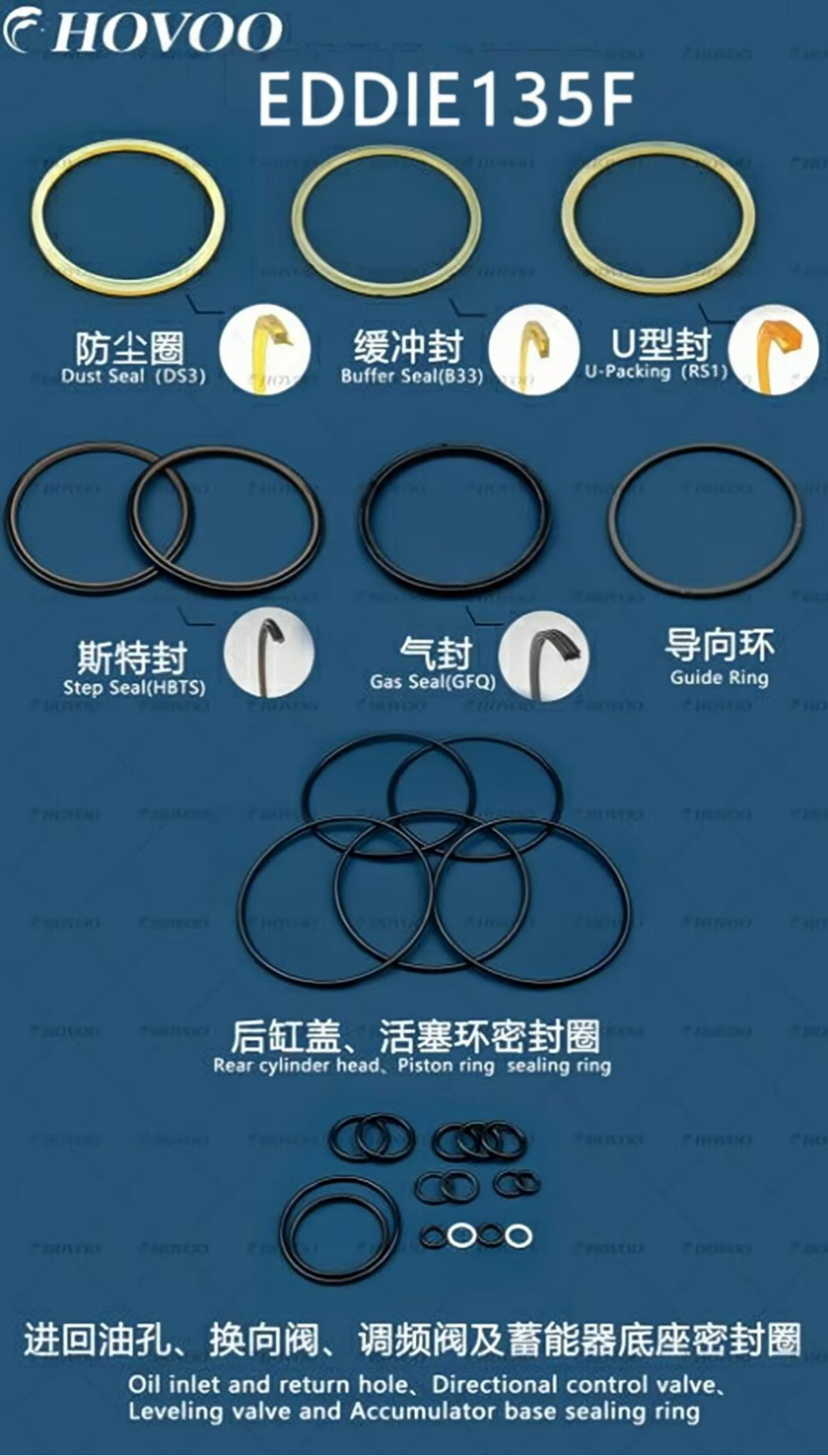

EDDIE135F Breaker Seal Kit Components

eddie135f hydraulic hammer seal kits-2

Additional Notes

  • Strictly match the hydraulic system within the parameter range: Hydraulic oil pressure must be stabilized at 157-177 bar (160-180 kg/cm²), and flow rate controlled at 145-180 L/min. Overpressure/overflow will cause abnormal wear and even direct damage to core components such as the external main valve, accumulator, and chisel; insufficient pressure/flow will result in reduced impact force and a significant drop in work efficiency.
  • The applicable excavator weight must be strictly controlled within the range of 20-26 tons. Excessive weight will cause overload and structural cracking of the breaker, while insufficient weight will fail to provide sufficient operational stability and affect the breaking effect.
  • The main valve is of external structure. Installation of hydraulic pipeline connection must be performed by professional personnel. Do not disassemble the main valve assembly or accumulator without authorization to avoid hydraulic oil leakage, valve core jamming, or accumulator failure. During commissioning, first evacuate air from the pipeline, then gradually increase the pressure to the rated range.
  • The inclusion of an accumulator requires proper pre-charging (refer to the manufacturer's manual for gas pressure settings) before initial operation to ensure optimal performance of the hydraulic system.
