TNB5M Hydraulic Breaker Seal Kits

TNB5M Hydraulic Breaker Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits
TNB5M Hydraulic Breaker Seal Kits

FEATURES

Item

Specification

Impact Rate

600-1050 bpm

 Tool Diameter

95mm (3.7inch)

Working Weight (2pc top mount)

350kg (770lbs)

Working Weight (Box case)

440kg (970lbs)

Oil Flow

45-80 L/min (12-21 G/min)

Operating Pressure

1450-2321 PSI

Hose I.D.

3/4 inch

Gas Pressure

0.8 MPa (116 PSI)

Carrier Range

   5.5-8.0 ton

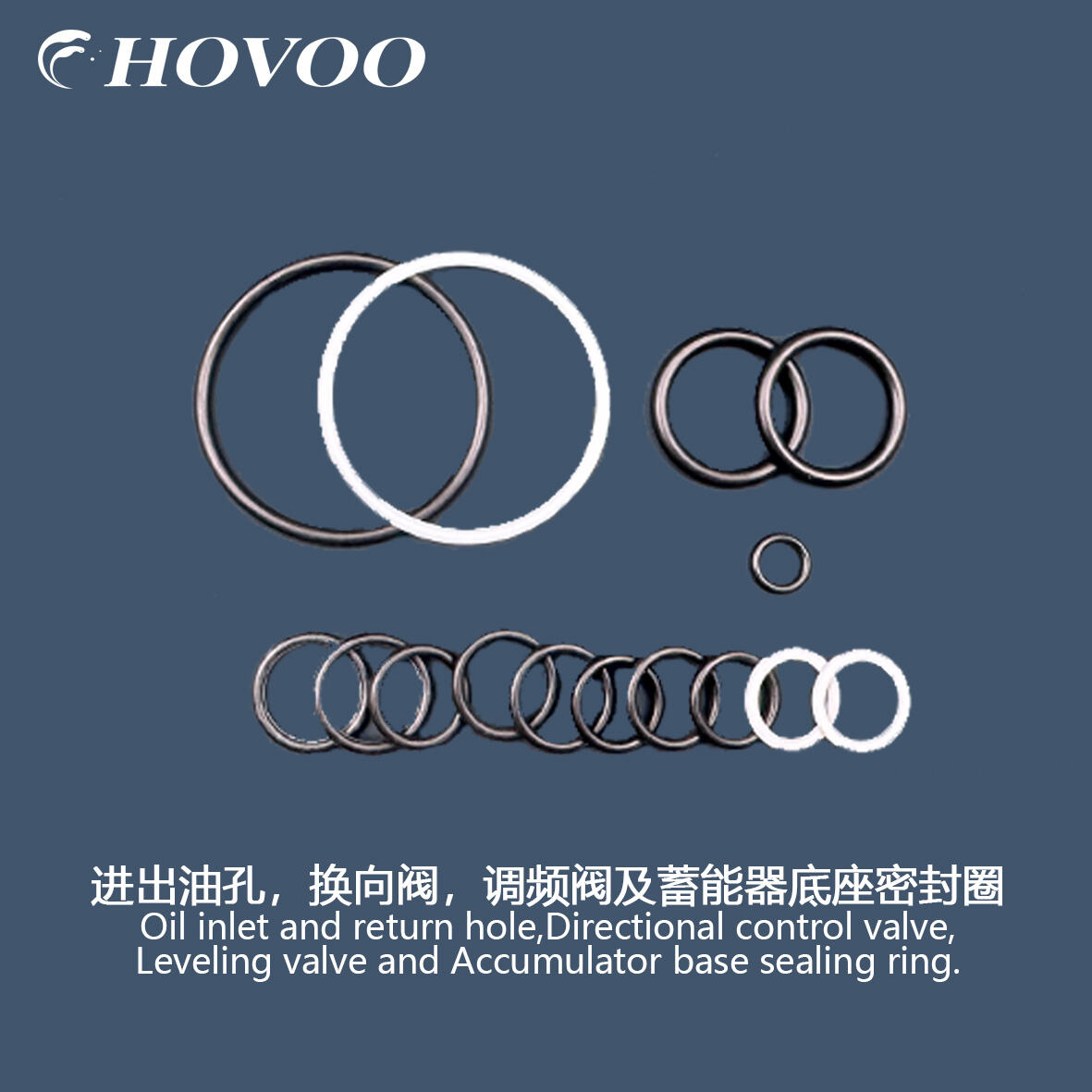

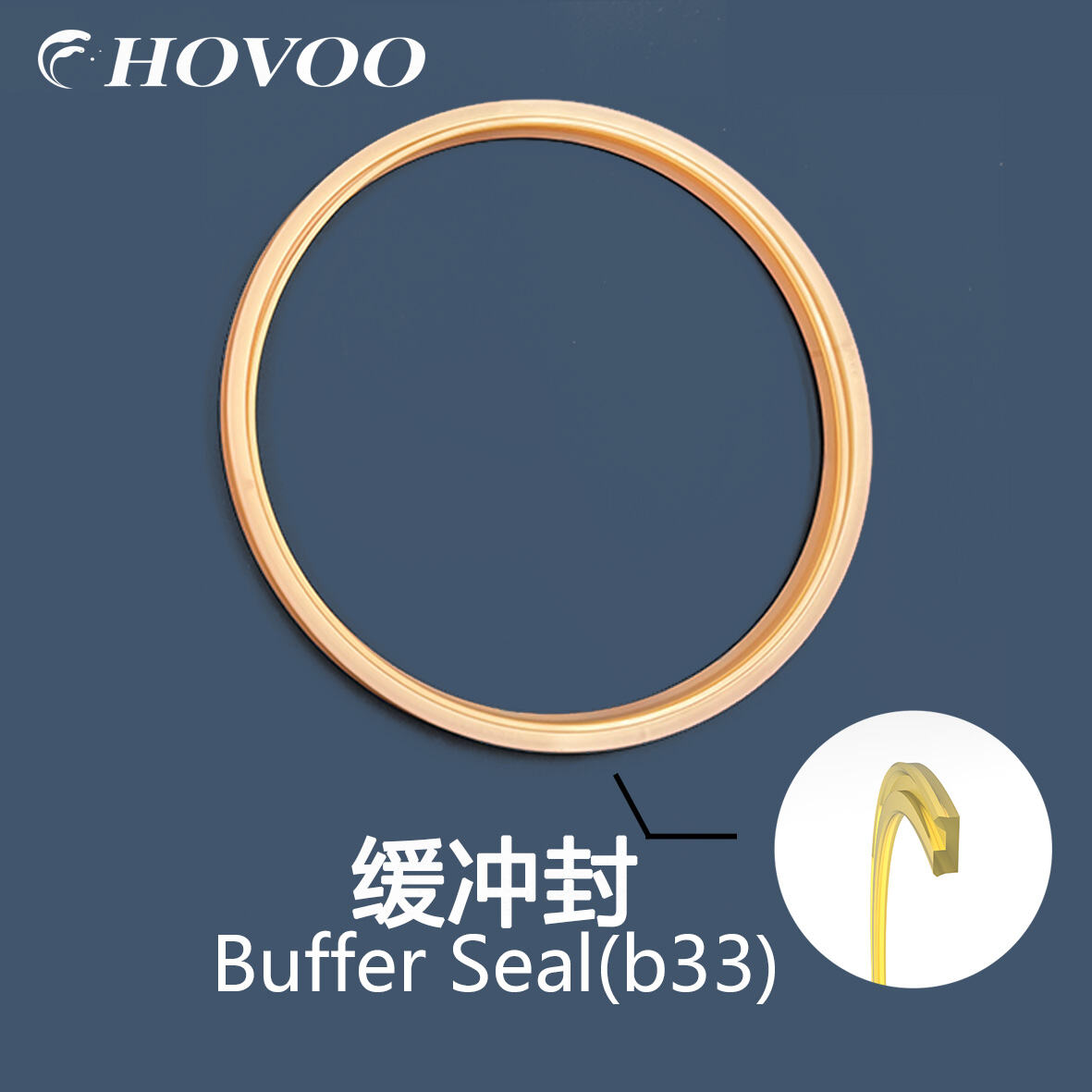

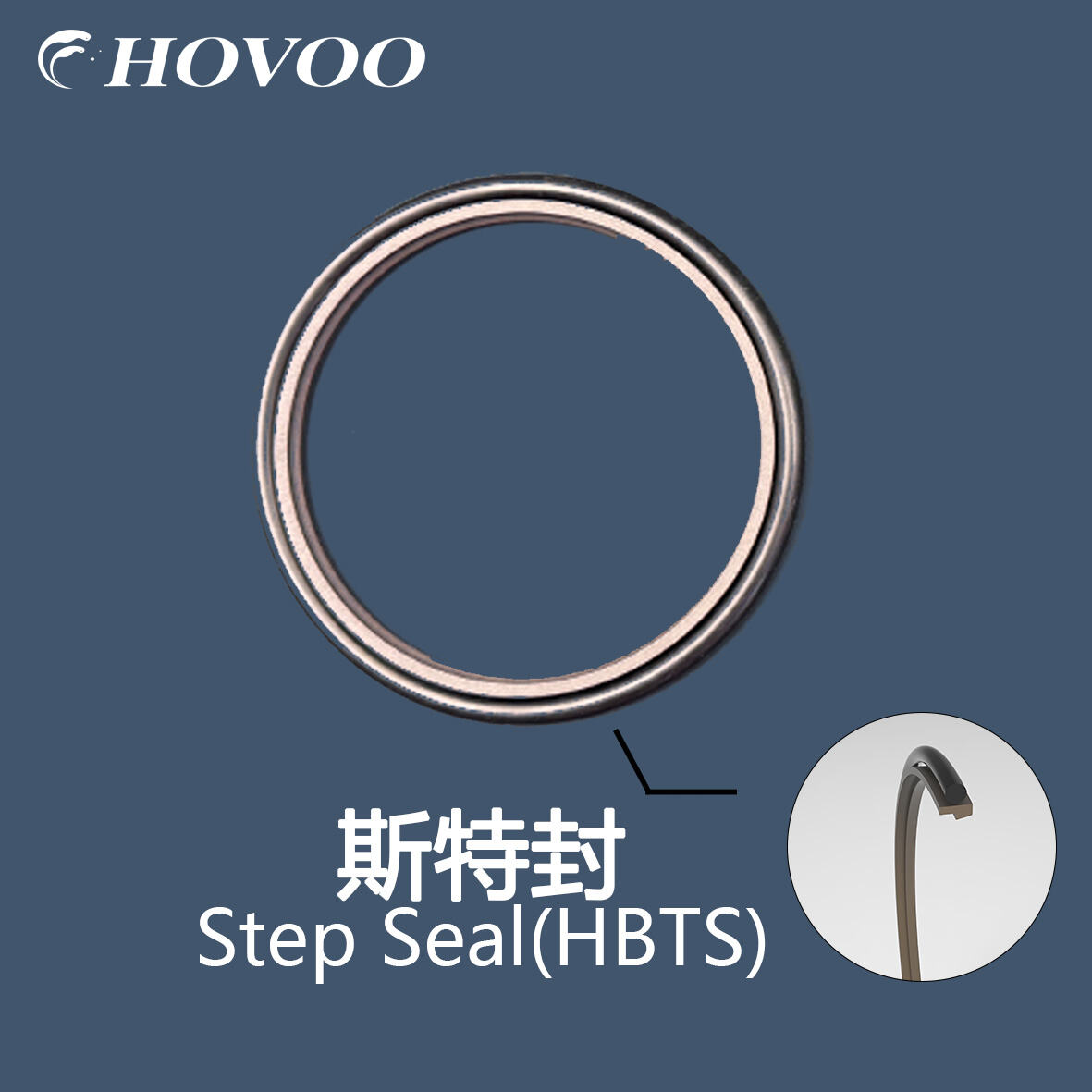

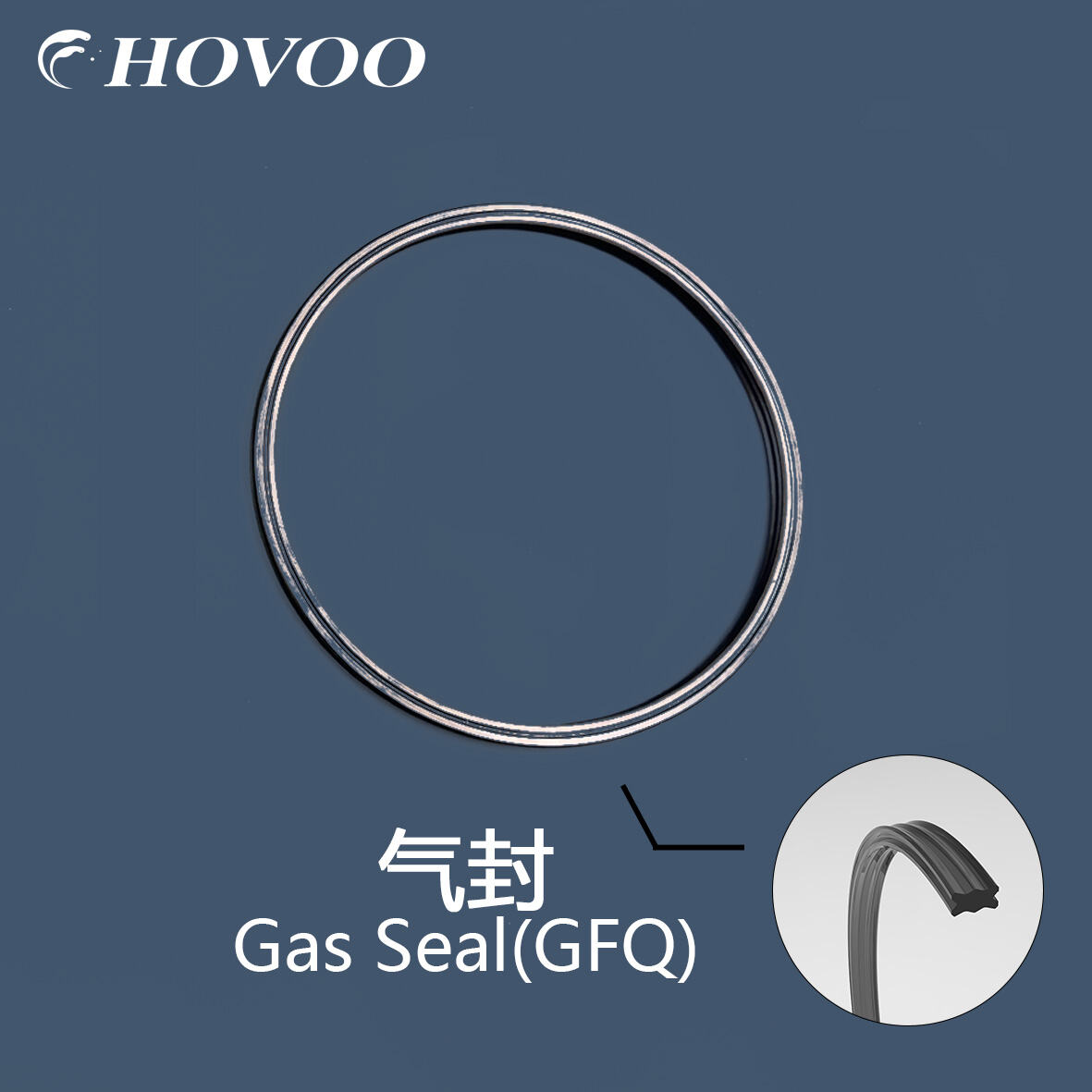

TNB5M Breaker Seal Kit Components

tnb5m hydraulic breaker seal kits-2

Additional Notes

  • Ensure the actual working pressure and oil flow of the equipment match the rated parameters to avoid damage caused by overload operation.
  • The gas pressure should be kept stable within the specified range to guarantee the normal operation of the device.
  • Select the matching carrier according to the rated carrier range, and do not use it with an unqualified carrier.
  • Regularly check the wear of the hose with the specified inner diameter and replace it in time if there is any damage.
