Caterpillar

Home /  Products /  Hydraulic Hammer/Breaker /  Caterpillar

All

B2 Hydraulic Hammer Seal Kits

B2 Hydraulic Hammer Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits
B2 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

Mounting Type

Pin-on / Triangular Mount



Suitable Equipment

  1-Ton Class Mini Excavators

Operating Weight (with Tool)

  Pin-on: 123.9 kg Triangular Mount: 123.6 kg

Impact Energy Class

290 J

Tool Shaft Diameter

  45 mm (1.77 in)

Recommended Hydraulic Flow

20–30 L/min (5.3–7.9 gpm)

Impact Frequency

 700–1200 bpm

Operating Pressure

 95 bar (1378 psi)

Overall Length (with Standard Tool)

385 mm (15.16 in)

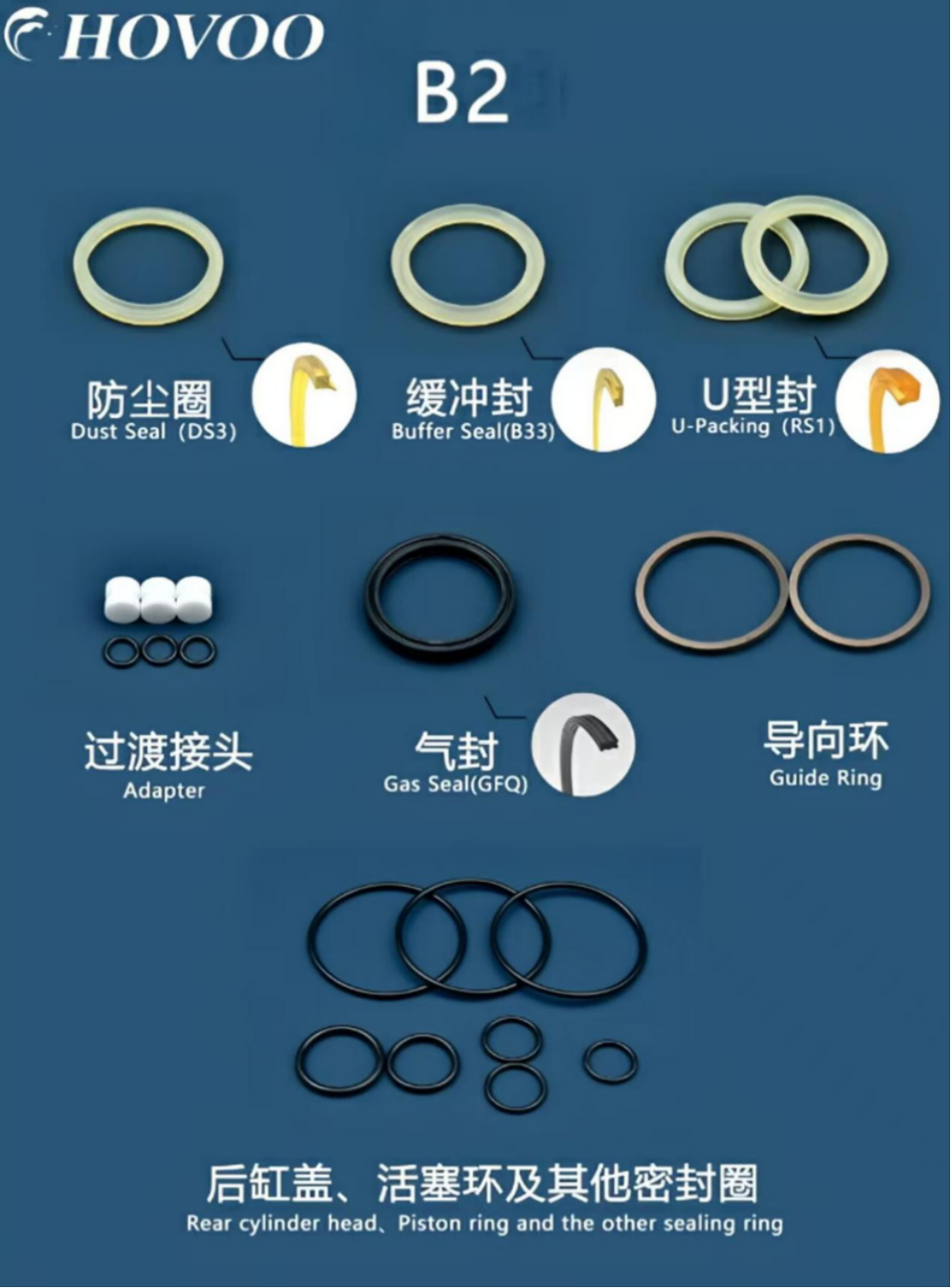

B2 Breaker Seal Kit Components

B2 Hydraulic Hammer Seal Kits manufacture

Additional Notes

  • The  Caterpillar (Cat) B2 is a compact, high-performance hydraulic breaker engineered for 1-ton class mini excavators, available in both pin-on and triangular mount configurations. With an impact energy class of 290J, it delivers enhanced breaking power for light-to-medium duty tasks including concrete breaking, trenching, and landscaping. The B2 features a robust, low-maintenance design, optimized hydraulic efficiency, and is fully compatible with Cat 1-ton mini excavators, delivering reliable performance in tight spaces.
  • Weight Difference: The minor weight variation between the pin-on (123.9 kg) and triangular mount (123.6 kg) versions is due to differences in the mounting bracket structure.
  • Optional Features: The product supports optional automatic lubrication systems and noise reduction housings to meet special requirements such as urban construction.
  • Compatible Models: Suitable for Caterpillar 1-ton mini excavators, including models like the 301.7D.
