HB1000DP Hydraulic Hammer Seal Kits

HB1000DP Hydraulic Hammer Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits
HB1000DP Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

Compatible Equipment

85-140 ton excavator (187,500-308,700 lb)

Carrier Weight Class

 85-140 t

Oil Flow

450-530 L/min

Unit Weight

10000 kg

Tool Diameter

240 mm

 Tool Length

800 mm

Max Hydraulic Input Power

 159 kW

Working Pressure

160-180 bar

Impact Frequency

   250-380 blows/min

Guaranteed Sound Power Level

 123 dB(A)

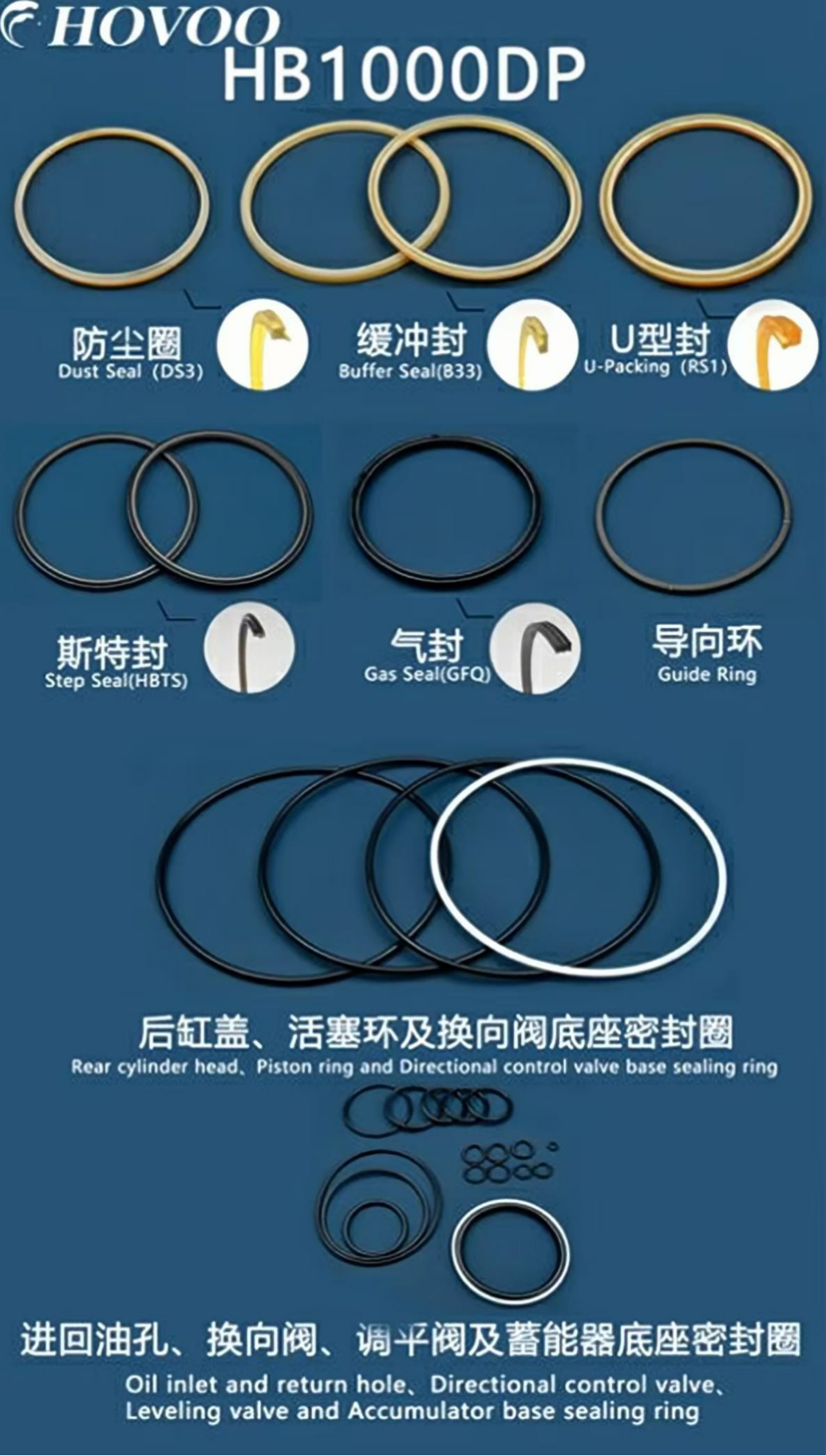

HB1000DP Breaker Seal Kit Components

HB1000DP Hydraulic Hammer Seal Kits supplier

Additional Notes

  • This breaker is custom-built for 85-140 ton excavators only. Applying it to carriers outside this weight range will cause catastrophic hydraulic and structural failure, leading to total loss of working performance and irreversible damage to core components.
  • Strictly maintain the operating pressure at 160-180 bar and oil flow at 450-530 L/min during all operations. Any deviation will rapidly wear out high-grade hydraulic precision parts, destabilize ultra-heavy-load work and drastically shorten the breaker's service life.
  • Only install original working tools with 240 mm diameter and 800 mm working length. Non-standard, modified or counterfeit tools will completely disrupt the transmission of ultra-high-intensity impact force, drastically increasing the risk of equipment breakage, jamming or sudden catastrophic on-site failure.
  • The guaranteed sound power level of the breaker is 123 dB(A). All on-site operators must wear top-grade sound-isolating earmuffs throughout the construction process, and comprehensive on-site noise reduction measures (such as sound barriers) should be adopted to effectively prevent severe noise-induced hearing damage.
