SOOSAN

Home /  Products /  Hydraulic Hammer/Breaker /  SOOSAN

All

SB10 Hydraulic Hammer Seal Kits

SB10 Hydraulic Hammer Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits
SB10 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

Operating Weight

 70kg

Body Length

972mm

Body Width

192mm

       Driving Oil Pressure

90~120 kg/cm²

Driving Flow Rate

15~30L/min

Blow Frequency

 800~1400bpm

Hose Diameter

 3/8, 1/2 inch

 Piston Rod Diameter

 40mm

Matching Excavator

0.8~2.5 ton

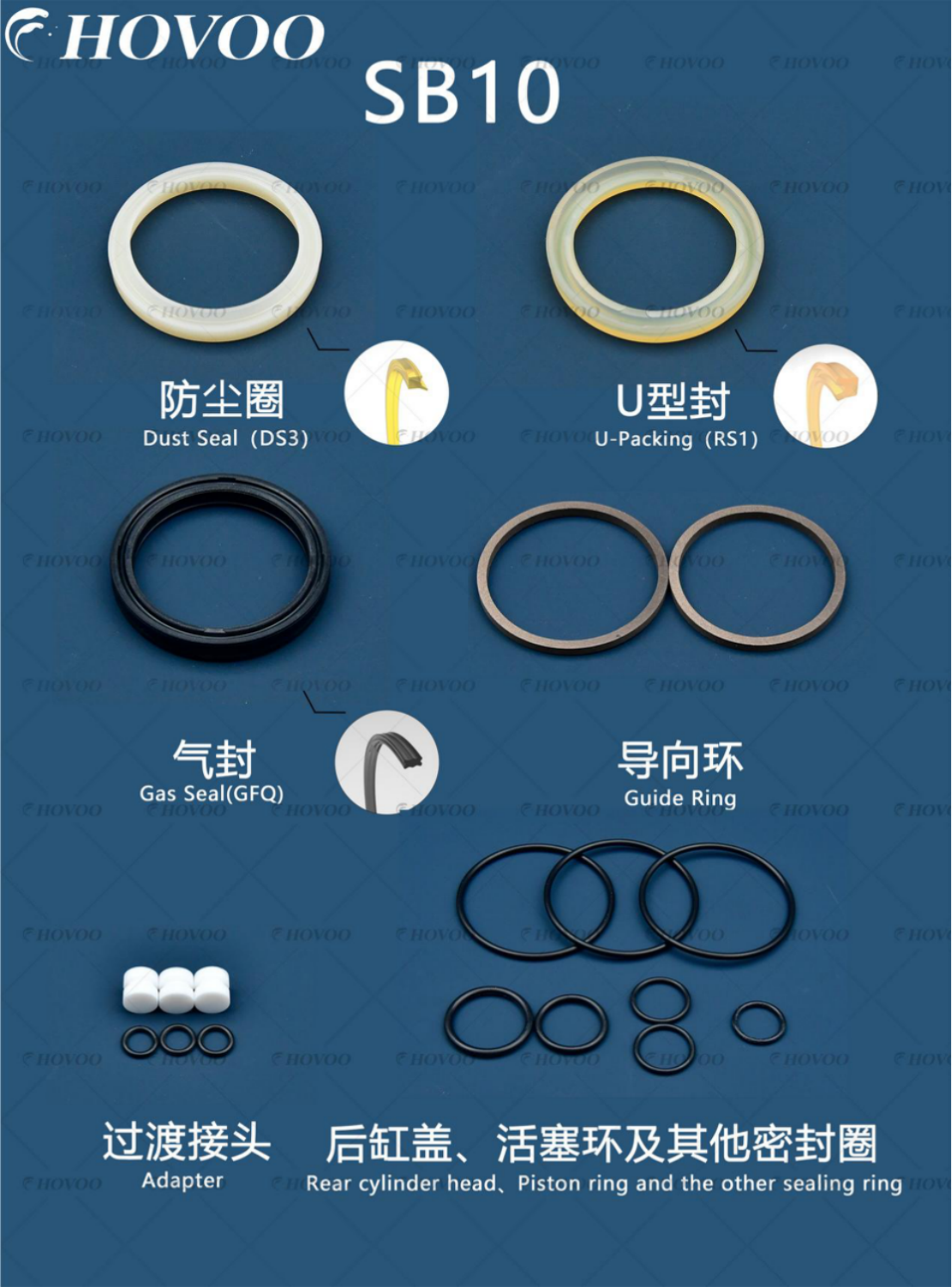

SB10 Breaker Seal Kit Components

sb10 hydraulic hammer seal kits-2

Additional Notes

  • These parameters are technical indicators under the equipment's standard working conditions; actual use shall be adjusted according to the operating environment and hydraulic system matching degree, and over-parameter operation is strictly prohibited.
  • The applicable excavator weight is a reference range; during selection, it is necessary to check the excavator's hydraulic output parameters and the breaker's driving requirements simultaneously to ensure complete matching.
  • Before operation, check the specifications of vulnerable parts such as hoses and piston rods in accordance with these parameters; mixing parts of different diameters is prohibited to prevent hydraulic system failures or safety accidents.
  • If parameter deviations occur during equipment operation, stop the machine immediately for inspection, and restart it only after troubleshooting problems such as hydraulic system faults and part compatibility.
