XP2400 Hydraulic Hammer Seal Kits

XP2400 Hydraulic Hammer Seal Kits

Inquiry
  • Overview
  • Inquiry
  • Related Products
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits
XP2400 Hydraulic Hammer Seal Kits

FEATURES

Item

Specification

 Suitable Excavator Weight

   28–40 tons

Operating Weight

  2400 kg

Tool Diameter

160 mm

Working Pressure

 180–210 bar

Oil Flow

180–230 L/min

 Impact Frequency

 340–480 bpm

Overall Height

 2920 mm

Impact Energy

 9600 J (9.6 kJ)

Tool Effective Length

680 mm

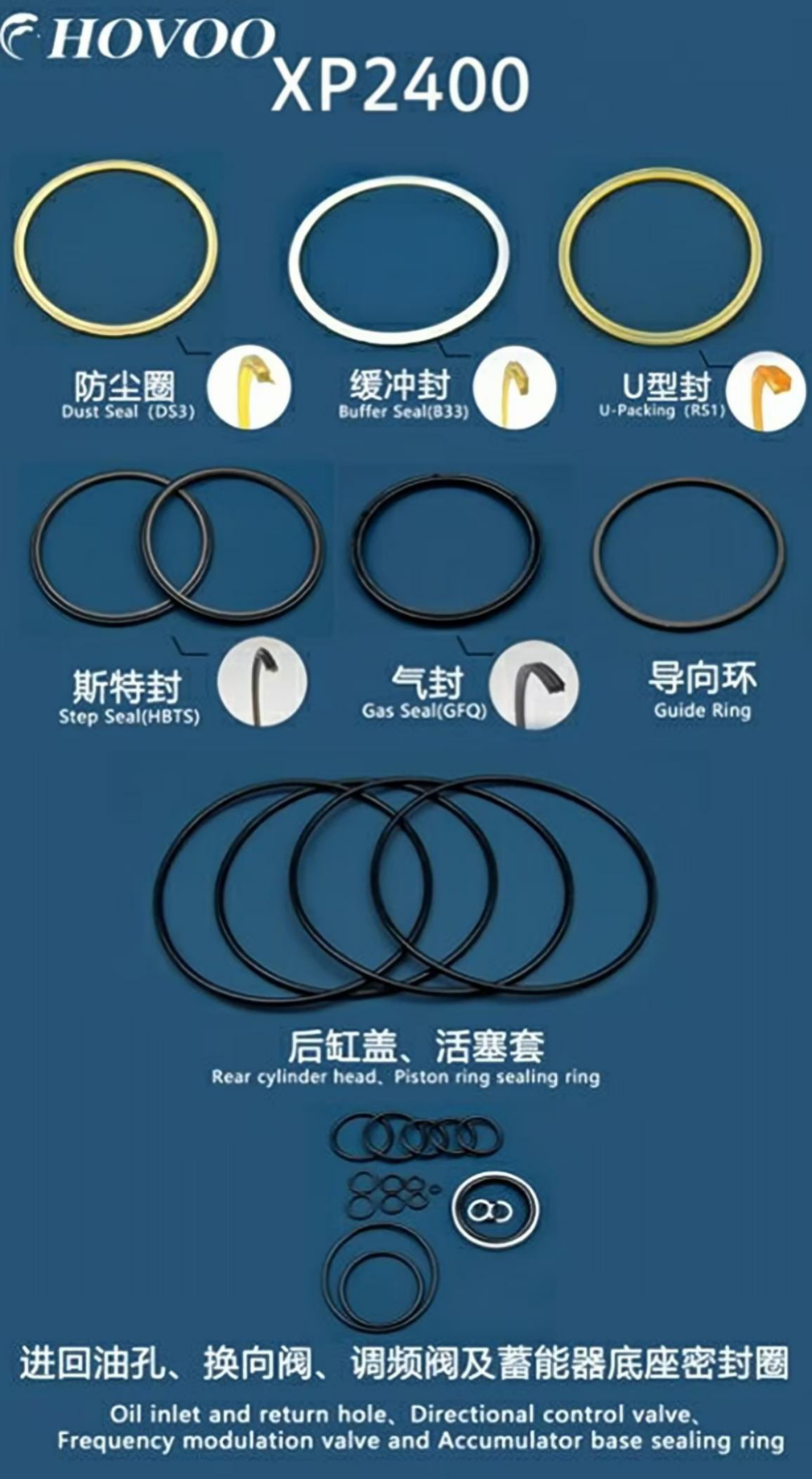

XP2400 Breaker Seal Kit Components

xp2400 hydraulic hammer seal kits-2

Additional Notes

  • The Promove XP2400 is a top-tier heavy-duty hydraulic breaker designed for 28–40 ton class excavators. It excels in the most demanding scenarios such as large-scale quarrying, primary rock breaking, deep foundation demolition, and major road construction projects. Powered by a 160mm tool bit and a robust piston delivering 9600J of impact energy, the XP2400 offers exceptional breaking force and efficiency. Its advanced hydraulic system ensures optimal energy transfer and durability, while the heavy-duty structure minimizes maintenance needs. The adjustable impact frequency and energy allow precise operation across different rock formations, making it the ultimate choice for large-scale, high-intensity construction works.
  • Productivity data is based on 8 hours of continuous operation. Actual output is affected by factors such as rock hardness, construction environment, and operator proficiency.
  • The product supports optional automatic lubrication systems and noise-reducing housings to meet special requirements such as urban construction.
