Product Overview

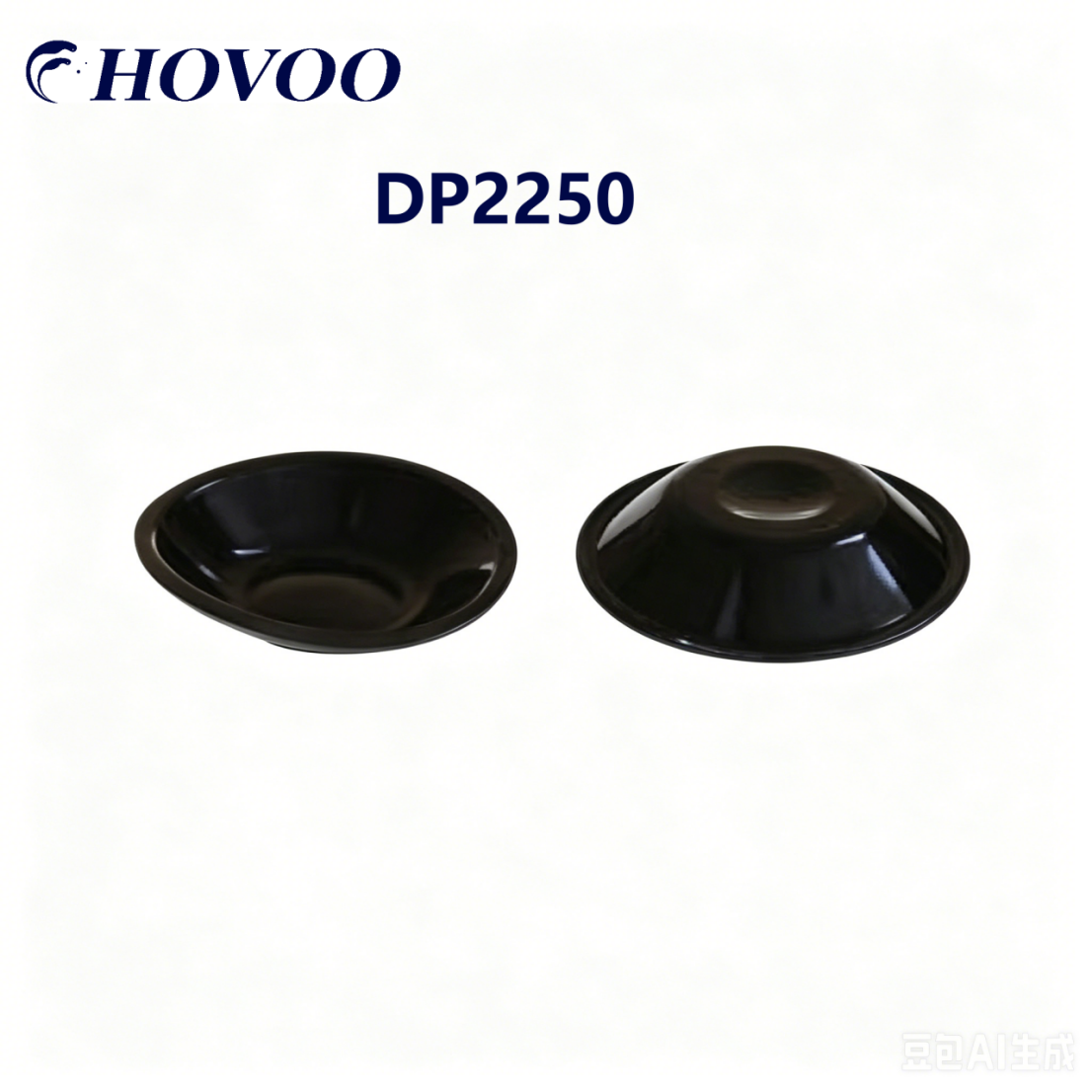

This heavy-duty diaphragm and cup seal is specially developed for Atlas Copco DP2250 hydraulic rock drifter, the flagship heavy-duty underground hydraulic drilling equipment of DP series, widely matched with underground mine tunneling, large rock excavation and tunnel boring hydraulic systems. The product integrates accumulator energy storage diaphragm and hydraulic reciprocating piston cup seal, fully supporting full overhaul and daily maintenance of DP2250 deep-hole rock drill.
Adopting thickened fabric-reinforced NBR nitrile rubber and high-toughness wear-resistant PU polyurethane as core raw materials, this set of sealing parts features outstanding nitrogen penetration resistance, ultra-high impact fatigue resistance, strong wear resistance and long-term anti-aging performance, which can be directly replaced with original Atlas Copco sealing spare parts. It thoroughly solves common faults such as accumulator nitrogen leakage, cylinder internal oil leakage, system impact pressure attenuation and insufficient drilling power, greatly extending the service life of DP2250 rock drill under long-time heavy load, ultra-high frequency impact, severe vibration and high-dust underground harsh working conditions.
Product Specifications
Item |
Detailed Parameter |
Product Name |
Atlas Copco DP2250 Hydraulic Rock Drifter Diaphragm & Cup Seal |
Applicable Model |
DP2250 Heavy-Duty Underground Hydraulic Rock Drill |
Compatible DP Series |
DP1100, DP1500, DP1800, DP2250, DP2600 hydraulic drifters |
Main Material |
Thickened Fabric Reinforced NBR Diaphragm + Super Wear-Resistant PU Cup Seal |
Max Working Pressure |
30MPa (300bar), Instant Peak Pressure: 36MPa (360bar) |
Working Temperature |
-40°C ~ 125°C |
Product Composition |
Accumulator nitrogen storage diaphragm, hydraulic piston reciprocating cup seal |
Cross Reference OEM No. |
(To be filled with actual OEM numbers) |
Net Weight |
Approximately 0.48kg |
Applicable System |
Rock drill nitrogen accumulator energy storage system, main cylinder reciprocating hydraulic sealing system |
Warranty |
12 Months |
Certification |
ISO9001 Quality Management System Certified |
Key Selling Points
1. 100% OEM Dimensional Matching, Direct Installation Without Modification
Fully compatible with original Atlas Copco DP2250 underground drifter, the overall outline, thickness and installation size are consistent with OEM standard parts. No cutting, grinding or secondary processing required. It can be quickly assembled for daily maintenance, underground full machine overhaul and emergency field repair, effectively reducing equipment shutdown time and manual maintenance cost.
2. Reinforced Composite Material, Stable Sealing Under Extreme Mine Working Conditions
The energy storage diaphragm adopts multi-layer fabric interlayer NBR material, with ultra-high tear resistance, elastic recovery rate higher than 96% after tens of thousands of impact cycles, no cracking or permanent deformation; piston cup seal uses high-hardness anti-extrusion PU material, resistant to hydraulic oil corrosion, nitrogen aging and high-temperature fatigue. It maintains stable sealing elasticity continuously in the temperature range of -40°C alpine mines to 125°C high-temperature deep underground operation, adapting to all kinds of complex underground geological construction environments.
3. Ultra-High Pressure & Anti-Fatigue Impact, Permanent Stable Impact Power
All sealing components pass strict 30MPa high-pressure sealing test and long-cycle continuous impact aging simulation test. The integrated bowl-shaped curved surface fits the inner cavity of the accumulator and cylinder perfectly, completely eliminating nitrogen leakage and internal oil leakage of the drill body, stabilizing hydraulic output pressure, and ensuring constant impact force and stable drilling speed of DP2250 rock drill under heavy rock drilling, continuous high-frequency impact and strong vibration working conditions.
4. Targeted Special Molding for DP2250, Convenient Inventory & Maintenance
Independently molded according to the internal cavity structure of DP2250 heavy-duty drifter accumulator and piston sealing position, with reinforced sealing edge design to avoid displacement during high-frequency operation. Single independent vacuum packaging, easy spare parts classification and inventory management, shorten the overall maintenance cycle of rock drill, and reduce the daily operation and maintenance cost of mining equipment.
5. Full-Range Factory Inspection, Performance Up to Original Factory Standard
Each set of diaphragm and cup seal undergoes air tightness leakage test, high-pressure durability test and cyclic impact aging test before delivery. All indexes meet the original Atlas Copco technical standards, providing long-term stable operation guarantee for large underground mine hydraulic rock drilling equipment.
6. Wide Application Range for Heavy Underground Engineering
Customized supporting parts for Atlas Copco DP2250 hydraulic rock drifter, widely applicable to all kinds of heavy underground mining and tunnel construction projects:
• Underground metal/coal mine: Underground roadway tunneling, deep hole rock drilling, ore body blasting hole construction
• Tunnel engineering: Highway/railway tunnel hard rock excavation, diversion tunnel drilling
• Large stone quarry: Deep hole blast hole drilling, slope rock anchoring construction
• Hydropower underground engineering: Underground powerhouse rock drilling, dam foundation deep hole processing
• Urban underground pipe gallery: Hard rock tunneling, foundation rock bolt drilling
Welcome to HOVOO, a Chinese seal factory. Production of PU, Rubber and PTFE seals. The seals include O-ring, piston seal, rod seal, Gray ring and gas seal.
